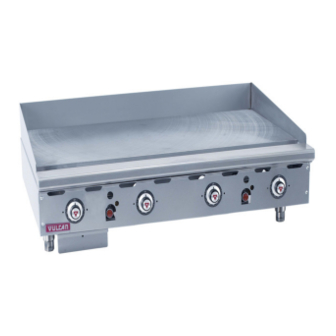

Vulcan-Hart MSA24 Replacement Parts Catalog
900rx and msa series heavy duty gas griddles
Hide thumbs
Also See for MSA24:
- Installation & operation manual (51 pages) ,
- Service manual (16 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Service Manual
900RX AND MSA SERIES
HEAVY DUTY GAS GRIDDLES
Models
924RX
ML-135309-924RX
936RX
ML-135310-936RX
948RX
ML-135311-948RX
960RX
ML-135312-960RX
972RX
ML-135313-972RX
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
REPLACEMENT PARTS
MSA48
CATALOG OF
948RX
Models
MSA24
ML-135236-MSA24
MSA36
ML-135237-MSA36
MSA48
ML-135238-MSA48
MSA60
ML-135239-MSA60
MSA72
ML-135240-MSA72
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (800) 814-2028
FORM 37130 (May 2008)
Advertisement
Table of Contents
Related Manuals for Vulcan-Hart MSA24
Summary of Contents for Vulcan-Hart MSA24
-
Page 1: Replacement Parts
ML-135311-948RX 960RX ML-135312-960RX 972RX ML-135313-972RX MSA48 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF REPLACEMENT PARTS... - Page 2 900RX AND MSA SERIES HEAVY DUTY GAS GRIDDLE REPLACEMENT PARTS ILLUS. PART NO. 00-788808-0000A Griddle Plate Weldment (24”) ... 1 ... 00-788828-000A2 Griddle Plate Weldment (36”) ... 1 ... 00-788828-000A3 Griddle Plate Weldment (48”) ... 1 ... 00-788828-000A4 Griddle Plate Weldment (60”) ... 1 ... 00-788828-000A5 Griddle Plate Weldment (72”) ...
- Page 3 ILLUS. PART NO. 00-498234-0000A Grease Chute Assembly ... 1 ... 1 ... 1 ... 2 ... 2 00-719737-00005 Griddle Burner ... 2 ... 3 ... 4 ... 5 ... 6 00-788824 Back Panel (24”) ... 1 ... 00-788825 Back Panel (36”) ... 1 ... 00-788801 Back Panel (48”) ...
- Page 4 900RX AND MSA SERIES HEAVY DUTY GAS GRIDDLE REPLACEMENT PARTS ILLUS. PART NO. 00-719737-00005 Griddle Burner ... 2 ... 3 ... 4 ... 5 ... 6 00-722220 Flex Tube ( 00-722425 Flex Tube ( 00-722221 Flex Tube ( 00-722222 Flex Tube ( 00-722223 Flex Tube ( 00-722224...
- Page 5 900RX AND MSA SERIES HEAVY DUTY GAS GRIDDLE REPLACEMENT PARTS - 5 -...
-
Page 6: Control Panel
900RX AND MSA SERIES HEAVY DUTY GAS GRIDDLE REPLACEMENT PARTS ILLUS. PART NO. 00-719377 NPT X 00-498096-00550 Valve, Thermostat Combo (550 Degree) ... 2 ... 3 ... 4 ... 5 ... 6 00-722220 Flex Tube ( 00-722425 Flex Tube ( 00-722221 Flex Tube ( 00-722222... - Page 7 900RX AND MSA SERIES HEAVY DUTY GAS GRIDDLE REPLACEMENT PARTS PART NO. 00-758567-000A1 J-box Assembly (Inc. Power Cord, Box, Conduit, Insulated Lead Wires) ... 1 ... 1 ... 1 ... 1 ... 1 00-758567-030A1 J-box Assembly (30” Deep Plate) ... 1 ... 1 ... 1 ... 1 ... 1 00-713845 Power Cord and Plug ...
- Page 8 900RX AND MSA SERIES HEAVY DUTY GAS GRIDDLE REPLACEMENT PARTS PART NO. 00-714268 Thermocouple (18”) ... 1 00-498096-00550 550 Degree Thermostat Combo Valve ... 1 00-498025 Baso Pilot Safety Valve ... 1 00-498041 Vulcan Knob ... 1 00-408279-00021 Regulator (Propane Gas) ... 1 00-408279-00025 Regulator (Nat.
