900RE SERIES
HEAVY DUTY GAS GRIDDLES
MODELS
924RE
ML-135221-00G24
936RE
ML-135222-00G36
948RE
ML-135223-00G48
960RE
ML-135224-00G60
972RE
ML-135225-00G72
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
INSTALLATION &
OPERATION MANUAL

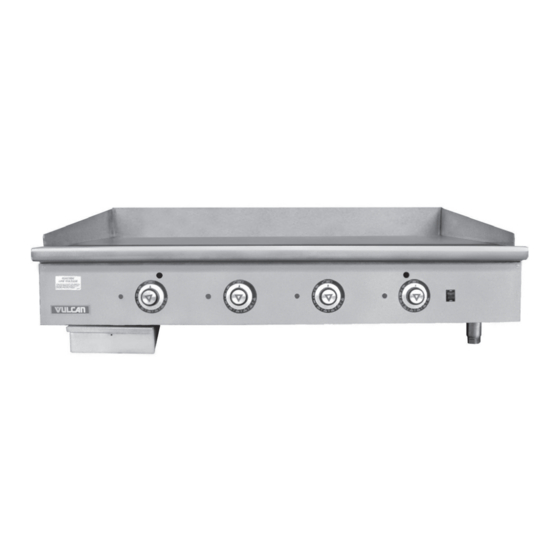

Model 948RE
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (502) 778-2791
FORM 35627 (09-04)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vulcan-Hart 900RE Series
Summary of Contents for Vulcan-Hart 900RE Series
- Page 1 ML-135224-00G60 972RE ML-135225-00G72 Model 948RE For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART P.O. BOX 696, LOUISVILLE, KY 40201-0696 DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC TEL.
-
Page 2: Important For Your Safety
ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE. — 2 — © VULCAN-HART, 2004... -
Page 3: Installation
INSTALLATION, OPERATION AND CARE OF 900RE SERIES HEAVY DUTY GAS GRIDDLES PLEASE KEEP THIS MANUAL FOR FUTURE USE GENERAL Vulcan griddles are produced with quality workmanship and material. Proper installation, usage and maintenance of your griddle will result in many years of satisfactory performance. - Page 4 LOCATION The equipment area must be kept free and clear of combustible substances. This appliance is Design Certified for installation on non-combustible counter with 4" legs or combustible floor with 25" high leg stand. When installing, never enclose the bottom area of the unit with raised curb or other constructions that would obstruct the flow of air into the unit.
-
Page 5: Gas Connections
GRIDDLES MOUNTED ON STANDS WITH CASTERS Griddle mounted on casters must use a flexible connector (not supplied by Vulcan) that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 • CSA 6.16 and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI-Z21.41 •... - Page 6 GAS PRESSURE AND REGULATOR INSTALLATION Gas regulator pressure is preset at the factory at 5" W.C. (Water Column) for natural gas and 10" W.C. for propane gas. No further adjustment should be required. Install the regulator as close to the griddle on the gas supply line as possible. Make sure that the arrow on the underside of the regulator is pointing toward the flow of gas to the griddle (Fig.
-
Page 7: Operation
WARNING: APPLIANCES EQUIPPED WITH A FLEXIBLE ELECTRIC SUPPLY CORD ARE PROVIDED WITH A THREE-PRONG GROUNDING PLUG. IT IS IMPERATIVE THAT THIS PLUG BE CONNECTED INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE. IF THE RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN. -
Page 8: Extended Shutdown
SHUTDOWN OF GRIDDLE WITH ELECTRONIC IGNITION SYSTEM 1. Push ON/OFF switch to OFF. Red indicator light will stop glowing. This indicates that all gas has been shut off to the main burners and griddle is not heating. EXTENDED SHUTDOWN 1. Shut off the main gas supply valve. 2. -
Page 9: Using The Griddle
USING THE GRIDDLE Each 12" section of the griddle is independently controlled by a thermostat. Turn the thermostat(s) to the desired setting. Turn the burners on about 20-25 minutes before cooking to preheat. A uniform and systematic approach to the loading of the griddle will produce the most consistent product results. - Page 10 CLEANING THE STANDARD GRIDDLE WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW LOCKOUT / TAGOUT PROCEDURES. Empty the grease drawer as needed throughout the day and regularly clean at least once daily. Clean the griddle regularly. A clean griddle looks better, lasts longer and performs better. To produce evenly cooked, perfectly browned griddle products, keep the griddle plate clean and free of carbonized grease.
-
Page 11: Maintenance
Annually, when the unit is cool, check the flue and clear any obstructions. SERVICE AND PARTS INFORMATION To obtain service and parts information, contact the Vulcan-Hart Service Agency in your area (refer to our website, www.vulcanhart.com for a complete listing of Authorized Service and Parts depots. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES Heat does not come on when 1. Not plugged in. thermostat is turned on. 2. Problem with thermostat. (Call for service) 3. Circuit breaker tripped. 4. Loose wiring connection. (Call for service) 5. Pilot burner not lit. (Call for service) 6.
