Vulcan-Hart MSA Series Specifications

model mSA48
SpECIFICATIONS:
Low profile heavy duty gas griddle, Vulcan-Hart Model
No. ________. Stainless steel front, sides and 4" front top
ledge. Fully welded stainless and aluminized steel body
frame. 11" low profile cooking height on 4" legs. 1" thick
polished steel griddle plate welded to stainless steel back
and tapered side splashers. One 27,000 BTU/hr. "U" shaped
aluminized steel burner and mechanical snap action thermostat
for each 12" of griddle width. Temperature adjusts from
200° to 550°F. One pilot safety valve for every two burners.
3½" wide stainless steel front grease trough. Large capacity
6⁷₈" wide x 30" deep x 2½" high stainless steel grease drawer.
¾" rear gas connection and gas pressure regulator. Exterior
dimensions: _____" w x 33" d x 15½" h on 4" legs.
CSA design certified. NSF listed.
SpECIFy TypE OF GAS WHEN ORDERING.
SpECIFy ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COmpANy, p.O. BOX 696, LOUISVILLE, Ky 40201, TEL. 1-800-814-2028
F-36965 (01-08)
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

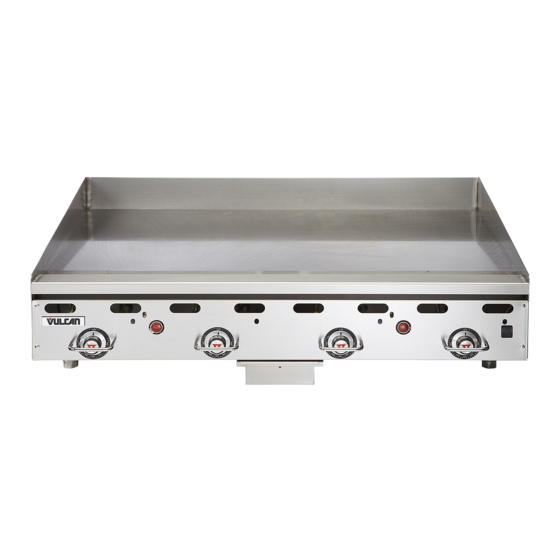

mSA SERIES
LOW pROFILE HEAVy-DUTy GAS GRIDDLE
mSA24
24" w x 24" d griddle plate
■
mSA36 36" w x 24" d griddle plate
■
mSA48
48" w x 24" d griddle plate
■
mSA60 60" w x 24" d griddle plate
■
mSA72 72" w x 24" d griddle plate
■
STANDARD FEATURES
■ Stainless steel front, sides and 4" front top ledge.
■ Fully welded stainless and aluminized steel body frame.
■ 11" low profile cooking height on 4" adjustable legs.
■ 1" thick polished steel griddle plate welded to stainless steel
4" backsplash and tapered side splashers.
■ One 27,000 BTU/hr. "U" shaped aluminized steel burner for
every 12" of griddle width.
■ One embedded mechanical snap action thermostat per burner.
■ Temperature adjusts from 200° to 550°F.
■ One pilot safety valve for every two burners. Safety
will completely shut off gas to pilot and burners if pilot
extinguishes.
■ 3½" wide stainless steel front grease trough.
■ Large capacity 6⁷₈" wide x 30" deep x 2½" high stainless
steel grease drawer.
■ ¾" rear gas connection and gas pressure regulator.
■ One year limited parts and labor warranty.
OpTIONS
Leg Lengths: 4", 5⁵₈", 8", 10", 11¾".
■
Chrome-plated cooking surface.
■
Rear grease trough.
■
Full or partially grooved griddle plates.
■
Stainless steel stand with marine edges and casters.
■
Towel bar.
■
Full width cutting board.
■
30˝ deep plate.
■
C.S.I. Section 11420
