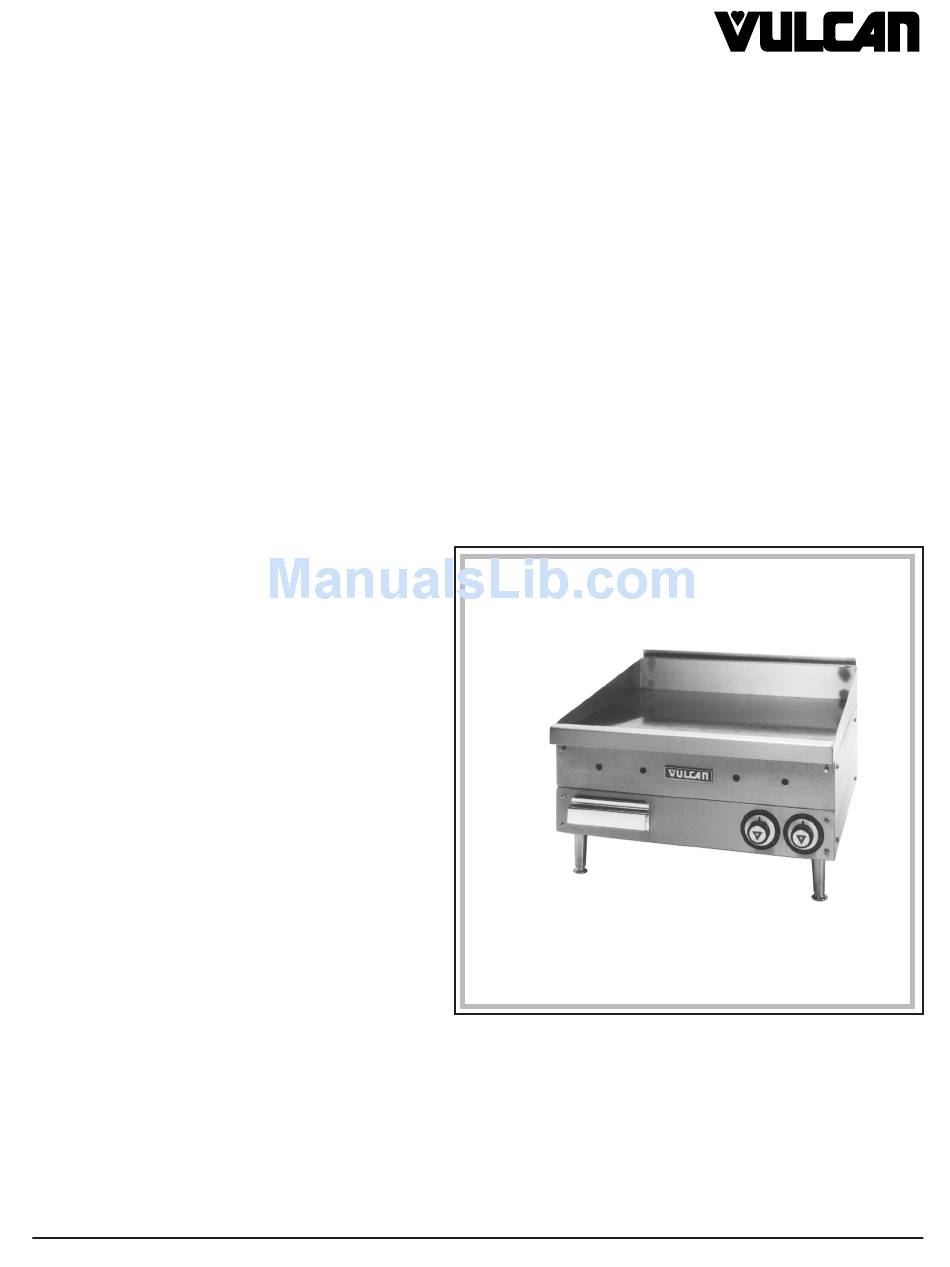

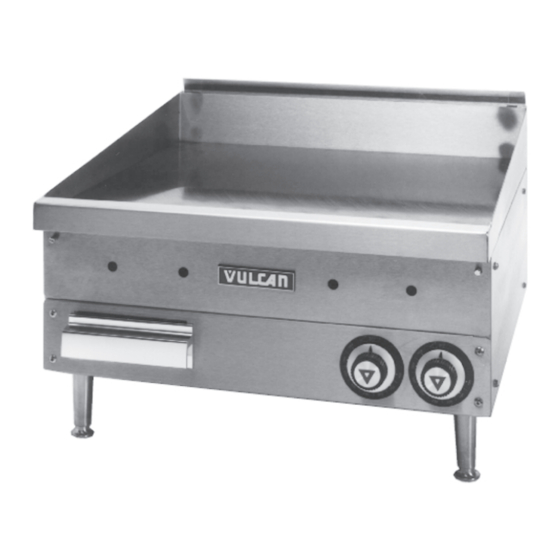

- Page 1 MGG SERIES MEDIUM DUTY GAS GRIDDLES MODEL MGG24 ML-103818 MGG36 ML-103819 MGG48 ML-103820 V U L C A N - H A R T C O M P A N Y , P . O . B O X 6 9 6 , L O U I S V I L L E , K Y 4 0 2 0 1 - 0 6 9 6 , TEL. (502) 7 7 8 - 2 7 9 1 FORM 30993 (10-96) (Formerly 990409) INSTALLATION &...
-
Page 2: Important For Your Safety
READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE. © VULCAN-HART COMPANY, 1996 IMPORTANT FOR YOUR SAFETY WARNING — 2 —... -
Page 3: Table Of Contents
GENERAL............... 4 INSTALLATION . -
Page 4: General
Before installing, verify that the electrical service and type of gas supply (natural or propane) agree with the specifications on the rating plate located inside the griddle door panel. If the supply and equipment requirements do not agree, do not proceed with the installation. Contact your dealer or Vulcan-Hart Company immediately. -
Page 5: Installation Codes And Standards
The installation location must allow adequate clearances for servicing and proper operation. A minimum front clearance of 32" is required. Do not obstruct the flow of combustion and ventilation air. Adequate clearance for air openings into the combustion chamber must be provided. Make sure there is an adequate supply of air in the room to replace air taken out by the ventilating system. -
Page 6: Gas Connections
GAS CONNECTIONS CAUTION: Gas supply connections and any pipe joint compound must be resistant to the action of propane gases. Location of the gas inlet is at the rear of the griddle. Codes require that a gas shutoff valve must be installed in the gas line ahead of the griddle. - Page 7 WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT SWITCH INDICATING THAT YOU ARE WORKING ON THE CIRCUIT. WARNING: APPLIANCES EQUIPPED WITH A FLEXIBLE ELECTRIC SUPPLY CORD ARE PROVIDED WITH A THREE-PRONG GROUNDING PLUG. IT IS IMPERATIVE THAT THIS PLUG BE CONNECTED INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE.
-
Page 8: Operation
WARNING: THE GRIDDLE AND ITS PARTS ARE HOT. CLEANING OR SERVICING THE GRIDDLE. CONTROLS THERMOSTAT — Each thermostat controls the gas flow to the burner to bring that area of the griddle plate up to the set temperature. BEFORE FIRST USE The griddle is shipped covered with a protective coating of grease. -
Page 9: Turning The Griddle On And Off
PILOT ADJUSTMENT SCREW PL-52472 TURNING THE GRIDDLE ON AND OFF Since all burners are lit from constantly burning pilots, turning the thermostats as desired is all that is required to put the griddle into service. To turn the griddle off, turn thermostats to OFF. Extended Shutdown 1. -
Page 10: Cleaning
This griddle plate is steel, but the surface is relatively soft and can be scored or dented by carelessly using a spatula. Be careful not to dent, scratch, or gouge the plate surface. Do not try to knock off loose food that may be on the spatula by tapping the corner or the edge of the spatula on the griddle surface. -
Page 11: Suggested Temperatures And Times For Griddling
To obtain service and parts information concerning this griddle, contact the Vulcan-Hart Service Agency in your area (refer to listing supplied with the griddle), or Vulcan-Hart Company Service Department at the address or phone number shown on the front cover of this manual. -
Page 12: Troubleshooting
PROBLEM Heat does not come on when thermostat is turned on. Pilot burner will not light. Pilot burner will not stay lit. Fat appears to smoke excessively. Food sticks to griddle. Food burned around edges or contains dark specks. Food undercooked inside. Food tastes greasy or has objectionable off- flavor.
