HunterDouglas Sonnette Installation Operation Care
Cellular roller shades custom clutch operating system
Hide thumbs
Also See for Sonnette:
- Installation operation and care (32 pages) ,
- Installation operation care (20 pages) ,
- Installation manual (33 pages)
Subscribe to Our Youtube Channel
Related Manuals for HunterDouglas Sonnette
Summary of Contents for HunterDouglas Sonnette

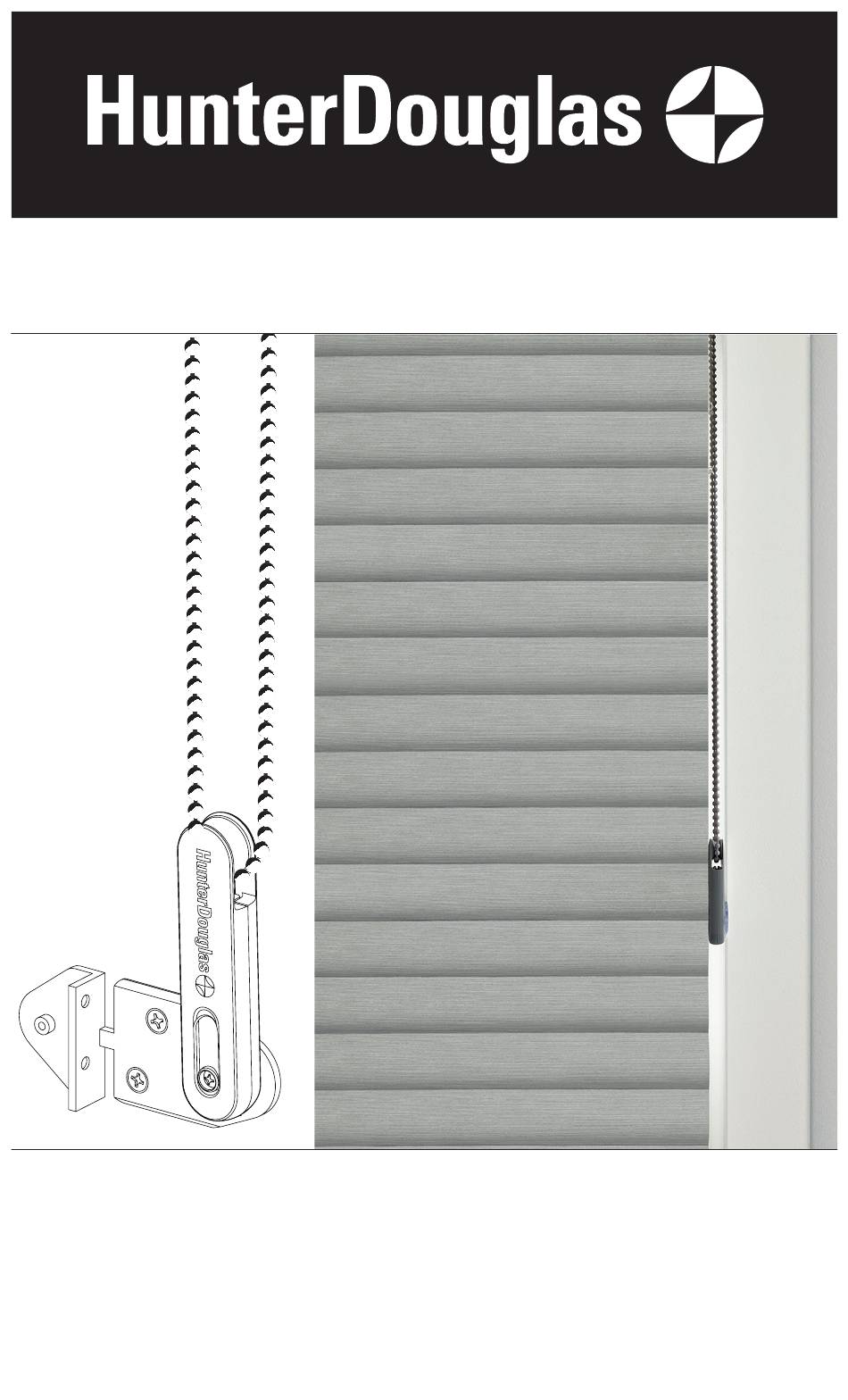

- Page 1 Installation Operation Care • • Sonnette ® Cellular Roller Shades Custom Clutch Operating System...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED Product View — Standard Bracket and Cassette ..........1 Tools and Fasteners Needed ................2 INSTALLATION Installation Overview ..................3 Mount the Standard/Designer Metal Brackets ..........4 Inside Mount .....................4 Outside Mount ..................5 Install the Shade — Standard/Designer Metal Brackets ........6 Mount the Cassette Brackets ................7 Inside Mount .....................7 Outside Mount .................... -
Page 3: Getting Started
GETTING STARTED Product View — Standard Bracket and Cassette Designer Metal Brackets Clutch-Side Installation Idle-Side Cassette Bracket Installation Installation Bracket Brackets M Idle-Side Installation Bracke M Clutch-Side Installation Bracket Beaded Cord Loop Cord Tensioner Bracket... -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Sonnette Cellular Roller Shades. With proper ® installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet before beginning the installation. Tools and Fasteners Needed #1 Flat blade and #2 Phillips screwdriver ■... -
Page 5: Installation
INSTALLATION Installation Overview Your order will include the correct number of installation brackets for your shade width. ■ Shade orders may also include spacer blocks or extension brackets, if they were specified ■ for added clearance. Cassette Standard/Designer Metal Installation Bracket Installation Bracket For Added Clearance Extension... -
Page 6: Mount The Standard/Designer Metal Brackets
INSTALLATION — STANDARD/DESIGNER METAL BRACKETS Mount the Standard/Designer Metal Brackets — Inside Mount The installation brackets are supplied Standard M Brackets Designer Metal Brackets in pairs: clutch side with the beaded Clutch-Side Clutch-Side cord loop and idle. Identify which Idle-Side Idle-Side side each of the brackets will go on the shade based on your order. -
Page 7: Outside Mount
INSTALLATION — STANDARD/DESIGNER METAL BRACKETS Mount the Standard/Designer Metal Brackets — Outside Mount The installation brackets are supplied Standard M Brackets Designer Metal Brackets in pairs: clutch side with the beaded Clutch-Side Clutch-Side cord loop and idle side. Identify which Idle-Side Idle-Side side each of the brackets will go on... -
Page 8: Install The Shade- Standard/Designer Metal Brackets
INSTALLATION — STANDARD/DESIGNER METAL BRACKETS Install the Shade— Standard/Designer Metal Brackets Standard/Designer Metal Bracket Shades Standard brackets shown. Designer Metal brackets follow the same installation procedure. Outside Mount Inside Mount (Shown in (Shown in Wall-Mounted Install Clutch End Ceiling-Mounted Orientation) Orientation) Position the bead chain connector. -
Page 9: Mount The Cassette Brackets
INSTALLATION — STANDARD OR CASSETTE Install the Bracket Cover — Outside Mount Standard Brackets Only Install the idle-side bracket cover by aligning the bracket with the channels in the bracket ■ cover and sliding it onto the bracket. Install the clutch-side bracket cover by snapping it onto the bracket. ■... - Page 10 INSTALLATION — CASSETTE Center the brackets on your marks and mark the location of the screw holes. ■ The minimum casement depth required for ➤ installation brackets is 1". The minimum casement depth required for a fully ➤ recessed mount is 3 ⁄...
-
Page 11: Outside Mount
INSTALLATION — CASSETTE Installation Brackets For Added Clearance Mount the Brackets — Cassette Outside Mount Your order will include the correct number of installation brackets for your shade width, as ■ Extension " or " shown in the table below. Bracket XL Bracket Spacer Blocks... - Page 12 INSTALLATION — CASSETTE Center the installation brackets or extension brackets on your marks and mark where to ■ drill the screw holes. A minimum 1 ⁄ " flat vertical surface is required for the installation brackets. Extension ➤ brackets require 1 ⁄...
-
Page 13: Install The Shade- Cassette
INSTALLATION — CASSETTE If using extension brackets, attach an installation bracket ■ Speed Nuts to the underside of each extension bracket using the speed nuts and screws provided. Screws Install the Shade— Cassette Lever Position the shade Headrail ■ so that the front faces you. -
Page 14: Attach The Universal Cord Tensioner (Uct)
INSTALLATION — CASSETTE Remove the remaining paper backing from the dots. ■ Center the dust cover over the top of the shade, above the dots. ■ Press the dust cover down onto the dots. ■ Dust Cover Installed Attach the Universal Cord Tensioner (UCT) Before doing anything, you must first slide the cord tensioner to the bottom of the beaded cord loop. -
Page 15: Attach The Magentic Hold-Down Brackets (Optional)
INSTALLATION — CASSETTE Attach the Magnetic Hold-Down Brackets (Optional) Lower the shade. See “Operate the Shade” on page 14. ■ Place the magnetic hold-down bracket onto the bottom rail just ■ inside the end cap, oriented as shown. Mark the screw location using the mounting options shown below. ■... -
Page 16: Operation
OPERATION Operate the Shade To Lower the Shade Pull the Pull the front of the cord loop to lower ■ Front of Cord Loop the shade. to Lower Pull until the shade is at the desired height. ■ Pull the Back of Cord Loop To Raise the Shade... - Page 17 OPERATION Problem The shade does not operate. Solution Check that the shade is installed so the bead chain hangs straight down from the clutch. Problem Shade hangs too low at the top. Solution Cassette Move the stop ball down the front of the chain to allow the shade to move further up.
- Page 18 OPERATION Problem The chain wheel orientation needs to be changed. Solution Change the Chain Guide Orientation Remove the screw Designer ■ Standard Metal and washer from the bracket. Be sure to keep the nut in place. A spare screw has been provided if needed.
- Page 19 OPERATION Problem The shade is hard to raise or lower, or will not raise or lower. Solution Shades cannot be forced into tight inside mount window openings. If the shade is an inside mount shade, make sure there is clearance between the ends of the shade and the window casement.
-
Page 20: Care
CARE Remove the Shade (If Necessary) Standard/Designer Metal Bracket Shades Standard bracket shown. Designer Metal bracket follows the same procedure. Fully raise the shade. ■ If your shade has a nut, loosen the nut to be able to ■ compress the idler. While holding the top of the shade, insert a flat ■... -
Page 21: Cleaning Procedures
Fabrics ™ As with all textiles, Sonnette fabric is subject to some variation. Slight wrinkling, puckering, or bowing is inherent to this textile product and should be considered normal, acceptable quality. These characteristics are not usually visible from the front or rear but may be visible... -
Page 22: Child Safety
CHILD SAFETY WARNING For more safety information, call 1-800-997-2389. Window Blind Cord Can STRANGLE Your Child. ■ Children can climb furniture to reach cords. Move crib and furniture away. ■ Keep all cords out of children’s reach. ■ Cord Loop Shades Attach the cord tensioner on the cord loop to the wall ■... - Page 24 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
