Summary of Contents for HunterDouglas Skyline PowerView

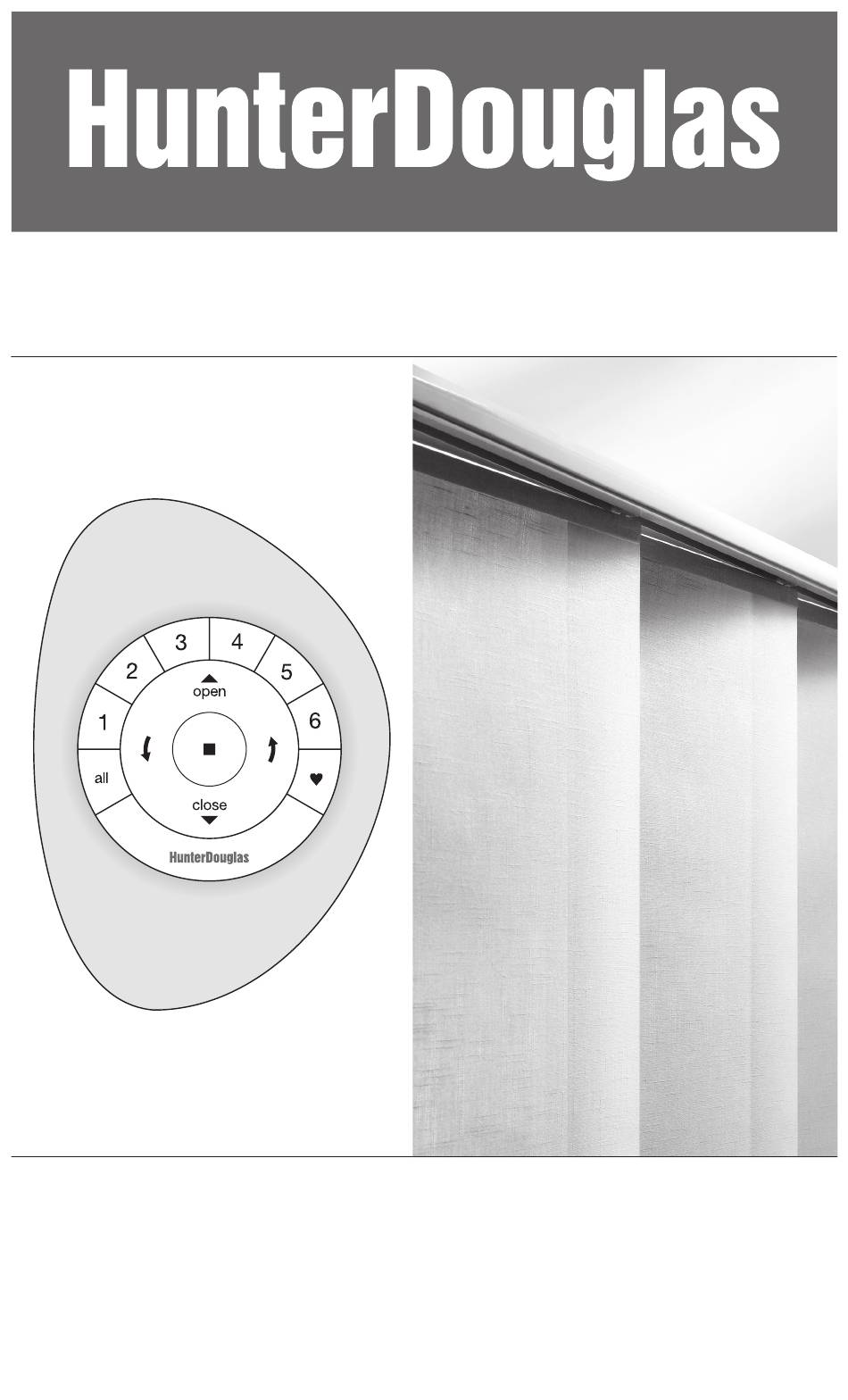

- Page 1 Installation Operation Care • • Skyline Gliding Window Panels ® PowerView Motorization ™...
-
Page 2: Table Of Contents
CONTENTS Getting Started: Mounting Types and Window Terminology .............1 Unpack the Box ....................1 Installation Components Required ..............2 Optional Components ..................4 Tools and Fasteners Needed ................5 Product View — Skyline Gliding Window Panels ..........6 ® Product View — Top Treatment Options ...............7 Installation: Inside and Ceiling Mount Applications ..............8 Outside Mount Applications ................16... -
Page 3: Getting Started
GETTING STARTED Thank you for purchasing Hunter Douglas Skyline ® Gliding Window Panels with PowerView ™ Motorization. With proper installation, operation, and care, your new unit will provide years of beauty and performance. Please thoroughly review this instruction booklet before beginning the installation. -
Page 4: Installation Components Required
GETTING STARTED Installation Components Required Valance and Headrail Mounting Brackets Width Brackets/Clips Required up to – 32" " – 56" " – 80" " – 104" " – 128" " – 152" " – 176" " – 200" Installation Brackets. This style of mounting bracket ■... - Page 5 GETTING STARTED Fabric-Wrapped Large Cassette Installation Bracket. ■ This style of installation bracket is used for Skyline units ordered ® with the fabric-wrapped large cassette. The brackets are used in both inside and outside mount applications. The number of installation brackets required varies based on headrail width, as shown in the table below.
-
Page 6: Optional Components
GETTING STARTED DC Power Supply. The power supply provides DC power to the unit ■ motor assembly and the receiver. The power supply operates on DC Power power from 100-240 VAC and 47-63 Hz. Each unit needs enough Supply wire length to allow the DC power supply to reach the wall outlet nearest the unit or in the least obtrusive location. -
Page 7: Tools And Fasteners Needed
GETTING STARTED Box Valance Brackets. A box valance wraps around the ■ entire headrail. The number of valance brackets will be the same as the number of installation brackets shown in the table on page 2. Box Valance Bracket Fabric Valance Mounting Brackets. The number of fabric ■... -
Page 8: Product View - Skyline ® Gliding Window Panels
GETTING STARTED Product View — Skyline Gliding Window Panels ® Installation Bracket Headrail Headrail Splice Clip PowerView ™ Receiver Mounting Clip Fabric Panels Bottom Weights... -
Page 9: Product View - Top Treatment Options
GETTING STARTED Product View — Top Treatment Options Valance Bracket Inside Mount Skyline Metals Valance ® (Optional) Valance Splice Clip Valance Bracket Outside Mount Valance Return Skyline Box Metal Valance (Optional) Valance Corner End Cap Box Valance Valance Rear Bracket Skyline Fabric Valance (Optional) Valance... -
Page 10: Inside And Ceiling Mount Applications
INSTALLATION Inside and Ceiling Mount Applications For panel order without a valance continue below. If you ordered a valance, see “Inside and Ceiling Mount Applications WITH A Valance” on page 9. Inside and Ceiling Mount Applications WITHOUT a Valance Mark the mounting clip locations on the ceiling or inside the window casement. Use the ■... - Page 11 INSTALLATION Inside and Ceiling Mount Applications WITH A Valance Refer to the appropriate section below for your valance type: ■ Metal Valance with Returns — below ➤ Metal Valance without Returns — page 10 ➤ Fabric Valance with Returns — page 11 ➤...
- Page 12 INSTALLATION Metal Valance without Returns Snap the valance brackets onto the valance, spacing them 2" to 4" from each end with 18" ■ to 24" between intermediate valance brackets. Intermediate Valance Clip Hole Valance Brackets Jamb Jamb Center the valance inside the window opening (inside mount) or over the window opening ■...
- Page 13 INSTALLATION Fabric Valance with Returns Slide the corners onto the valance dust cover. These are marked on the inside corners for ■ the left and right sides. Do not fully seat the corners. Front View Valance Dust Cover Corner Back of Corner Rear View Valance Dust Cover...
- Page 14 INSTALLATION Carefully push the corners fully into place ■ making sure that the fabric goes under the lip of the corners. Put the return fabric covers on the same ■ way as the main part of the fabric valance, only slide them into place under the lip of the corner.
- Page 15 INSTALLATION With the mounting clips in place, mark ■ the dust cover through the center holes of the mounting clips. Remove the mounting clips and drill the ■ holes in the dust cover. Hold the dust cover in place on the ■...
- Page 16 INSTALLATION Fabric Valance without Returns If the fabric cover is not already installed: ■ Slot Clip the narrow edge of the fabric over ➤ the top of the dust cover and into the slot as shown. Pull the wide edge of the fabric over ➤...
- Page 17 INSTALLATION With the mounting clips in place, mark ■ the dust cover through the center holes of the mounting clips. Remove the mounting clips and drill the ■ holes in the dust cover. Hold the dust cover in place on the ■...
-
Page 18: Outside Mount Applications
INSTALLATION Outside Mount Applications Installation Bracket Placement Measure and mark the wall 2" to 4" in from each end of the headrail. ■ Evenly space and mark the intermediate installation brackets at 18" to 24" intervals along ■ the headrail. DO NOT exceed 24" between installation brackets. Wall End of Headrail Mark CAUTION: The installation brackets must be mounted level to a flat, vertical surface for... -
Page 19: Box Valances And Fabric-Wrapped Cassette Installation
INSTALLATION Box Valances and Fabric-Wrapped Cassette Installation Refer to the appropriate section below for your valance type: ■ Metal Box Valance — below ➤ Fabric Box Valance — page 18 ➤ Fabric-Wrapped Large Cassette — page 21 ➤ Metal Box Valance Assemble the valance using two corners, one return piece, and the front and rear pieces. - Page 20 INSTALLATION Fabric Box Valance Slide one corner onto the valance dust cover. The corners are marked on the inside ■ corners for the left and right sides. Do not fully seat the corner in this step. Front View Valance Dust Cover Corner Back of Corner...
- Page 21 INSTALLATION Carefully push the corner fully into place ■ making sure the fabric goes under the lip of the corner. Put the return fabric cover on the same way as ■ the main part of the fabric valance, sliding it into place under the lip of the corner.
- Page 22 INSTALLATION Remove the mounting clips and drill the ■ holes in the dust cover. Hold the box valance in place on the ■ mounting surface and mark through the holes. Set the box valance aside. ■ Use a ∕ " drill bit to drill the screw holes. ■...
-
Page 23: Fabric-Wrapped Large Cassette Installation (Inside And Outside Mounts)
INSTALLATION Fabric-Wrapped Large Cassette Installation (Inside and Outside Mounts) Mount the Installation Brackets Cassette Mounting Bracket Bracket spacing is the same for inside and ■ outside mounted panels. Screw Holes for Inside/Ceiling Mount Measure 2" in from where the ends of ■... - Page 24 INSTALLATION Mount the Fabric-Wrapped Large Cassette Choose the appropriate section below based on your panel: Single Piece Cassettes Angle the cassette back and then bring the ■ Installation Wall Front Lip Bracket cassette forward to catch the front lip of the bracket.
-
Page 25: Mount The Headrail
INSTALLATION Bow the clip and snap it into the track on ■ the lower edge of the cassette. Clip the fabric-wrapped large cassette splice ■ cover over the fabric seam, clipping the bottom on first, then snapping the top of the splice cover into place. - Page 26 INSTALLATION Spliced Headrails without Fabric-Wrapped Large Cassette CAUTION: For spliced headrails, one person should hold each section. Orient the headrail so that the control side is located on the correct side. ■ Mount the half with the attached headrail splice clip first. ■...
- Page 27 INSTALLATION Center the first section of headrail underneath the ■ Wall mounting clips. Release Tab Starting with the center, tilt the headrail and engage it ■ under the lip of the mounting clips. Rotate the headrail upward and snap it into place. ■...
-
Page 28: Outside Mount Valance Installation (Optional)
INSTALLATION Outside Mount Valance Installation (Optional) Refer to the appropriate section below for your valance type: ■ Standard Metal Valance — below ➤ Fabric Valance — page 27 ➤ Metal Valance Use the valance brackets provided and put them adjacent to the outside mounting brackets ■... - Page 29 INSTALLATION Fabric Valance Slide the corners onto the valance dust cover. These are marked on the inside corners for ■ the left and right sides. Do not fully seat the corners in this step. Front View Valance Dust Cover Corner Back of Corner Rear View...
- Page 30 INSTALLATION Carefully push the corners fully into place ■ making sure the fabric goes under the lip of the corners. Put the return fabric covers on the same way ■ as the main part of the fabric valance, sliding them into place under the lip of the corners. Use the fabric valance brackets provided and place them next to the mounting brackets as ■...
-
Page 31: Connect The Receiver (If Not Already Connected)
INSTALLATION Connect the Receiver (If Not Already Connected) IMPORTANT: Connect the receiver before connecting the DC power supply. Plug the 10-pin receiver connector into the motor housing. ■ CAUTION: The receiver connector can only be inserted one way. Do not force the connector into the motor housing. Snap the cover into place over the motor. -
Page 32: Test Headrail Operation (Prior To Panel Installation)
INSTALLATION Secure the DC power supply wire using the C-clips provided. Hide the wire behind the ■ fabric, making sure it does not impede operation. Space the C-clips approximately 15" apart ■ along the DC power supply wire, as shown. Plug the DC power supply into the power ■... -
Page 33: Using The Powerview ™ Remote
INSTALLATION Using the PowerView Remote ™ First, activate the remote by pulling both plastic tabs from the back battery compartment. OPEN Group 4 Group 3 Group 5 Group 2 Group 1 Group 6 RIGHT ARROW LEFT ARROW No function No function Favorite (Shade position) STOP... - Page 34 INSTALLATION Fabric Panel Installation There are four different Skyline Gliding Window Panels configurations available: ® Right Stack/Right Facing Motor on Right Split Stack/Right Facing Motor on Right ■ ■ Left Stack/Left Facing Motor on Left Split Stack/Left Facing Motor on Left ■...
- Page 35 INSTALLATION Right Stack/Right Facing Assembly IMPORTANT: Use the button on the receiver to traverse the unit open and closed to test for proper operation. Use the button on the receiver to traverse the carriers to the stacked position. ■ Manually stack the free carriers in the front channel to the right end. Reposition these as ■...
- Page 36 INSTALLATION Continue installing panels, rear channel first. The last panel you install will be marked ■ “FRONT PANEL — INSTALL LAST.” IMPORTANT: This panel has two flush end caps on the bottom weight. Test traverse (use the button on the receiver). ■...
- Page 37 INSTALLATION Gently twist the fabric hanger outward and insert the LEFT side of the fabric hanger into the ■ carrier in the FRONT channel (see No. 3). IMPORTANT: After you have installed the first panel, verify that the flush end cap on the bottom weight is on the LEFT side.
- Page 38 INSTALLATION With the front side of the rear panel facing you, insert the LEFT side of the fabric hanger ■ into the carrier in the REAR channel (see No. 1). Front Channel Rear Channel Front Carrier Rear Carrier Center Screw Channel Center Guide 2.
- Page 39 INSTALLATION With the front side of the rear panel facing you, insert the LEFT side of the fabric hanger ■ into the carrier in the REAR channel (see No. 1). Left Stack/Right Facing Front Channel Rear Channel Center Rear Channel Carrier Front Carrier Center Guide...
- Page 40 INSTALLATION Locate the panel marked “REAR PANEL — INSTALL FIRST.” This is the first panel to install. ■ Locate the temporary plastic fabric hanger installed in the headrail. You will install the first ■ panel into the same carriers. Remember the carriers into which the hanger is installed, remove the temporary hanger.
- Page 41 INSTALLATION Continue with the stack on the right, and ensure the carriers have been traversed to the ■ right, and the free carriers in the front channel have been stacked to the right. Locate the panel (you had previously set aside) marked “REAR PANEL — INSTALL FIRST.” ■...
-
Page 42: Connect The Bottom Weights
INSTALLATION Connect the Bottom Weights Once you are satisfied with the operation, connect the bottom weights together. The bottom weights interconnect to stabilize the panels. Each bottom weight has a snap slide on the back side, which connects to the adjacent bottom weight. Traverse the panels closed. -
Page 43: Install The Room Divider Kit (Optional)
INSTALLATION Install the Room Divider Kit (Optional) IMPORTANT: The floor bracket and snap slide can be mounted to the floor in a position to hold the panels in directly Snap Slide beneath the headrail. Once mounted, the snap slide is free to move up and down in its slot and can be attached to the last moving panel. - Page 44 INSTALLATION Pull out the bottom weight flat end cap ■ (next to the wall). Install the ball end cap in the end of the ■ bottom weight. Reinstall the end cap pin. ■ Be sure the bottom weight is free hanging ■...
- Page 45 INSTALLATION Insert the snap slide into the floor ■ bracket by aligning the slot of the bracket with the grooves in the snap slide. Be sure that the clip portion sits inside the slot of the floor bracket. This will allow the snap slide to slip into the groove in the back of the panel bottom weight, if desired.
-
Page 46: Operate The Shade
For information regarding operation and programming of the PowerView Scene Controller, refer to your PowerView Motorization Scene Controller Guide. PowerView App Operation PowerView Hub is required for PowerView App operation. For information regarding setup and operation using the PowerView App, refer to the online PowerView App Software Guide at hunterdouglas.com/powerview/support. -
Page 47: Resetting The Shade (If Necessary)
OPERATION Resetting the Shade (If Necessary) Basic Reset The basic reset is used to reset the shade’s travel limits. This procedure will also reset the ♥ FAVORITE position to its default (shade closed halfway). 1. Press and hold the manual control button for 6 seconds. The shade will move slightly. 2. - Page 48 OPERATION Slide out the snap slide end cap from ■ the bottom weight. Slide the panel out of the bottom weight. ■ IMPORTANT: Note the folded flap at the bottom of the panel and how it is folded. Unfold the fabric and carefully remove ■...
- Page 49 OPERATION Insert the end cap pins back into in the ■ bottom weight and press into place. Reinstall the fabric panel into ■ the headrail. Repeat this process for the other panels. ■ Reconnect the bottom weights if ■ required. Using the button on the receiver or ■...
- Page 50 OPERATION Check the fold and the position of the ■ plastic adhesive strip. To adjust, remove the plastic adhesive ■ strip, adjust the fabric. Reattach the plastic adhesive strip, ■ aligning it with the exact edge of the panel. Crease the fabric tightly along the strip. ■...
-
Page 51: Troubleshooting
OPERATION Troubleshooting If your shade is not operating correctly: First review the guide that came with your control device. ■ Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact the Hunter Douglas Customer Information Center at 1-888-501-8364. - Page 52 OPERATION Problem The shade does not operate using the manual control button. Solution Unplug the power cable from the motor, then plug it back in. A green LED inside the manual control button housing should flash to indicate the motor has power. Check that the DC power supply is securely connected to the barrel connector on the motor.
-
Page 53: Care
CARE Removal Procedures Removing the Panels Disconnect the bottom weights by gently pulling them apart. ■ Grasp the panel hanger on the sides. ■ Gently twist the panel hanger and pull downward to release the hooks from the carriers. ■ Right Facing/Right Stack Shown —... - Page 54 CARE Removing the Headrail Remove the cover on the motor by pulling it straight down. ■ Remove the power and receiver cables from the cable hooks. ■ Pull the connectors for the receiver out of the motor. ■ Unplug the power supply ■...
- Page 55 CARE Spliced Headrail and Fabric-Wrapped Large Cassette CAUTION: To avoid damage to the headrail and large fabric-covered cassette, one person should be used to handle each section. Locate the release tab on the ■ Wall mounting clips. Fabric-Wrapped Large Cassette Firmly grasp the headrail. ■...
-
Page 56: Cleaning Procedures
CARE Cleaning Procedures Dusting Regular light dusting with a feather duster is all the cleaning that is needed in most ■ circumstances. Vacuuming Use a hand-held vacuum with low suction for more thorough dust removal. ■ Compressed Air Or Hair Dryer Use to blow dust off the panels. -
Page 57: Declarations
Piekstraat 2, 3071 EL Rotterdam, The Netherlands certify and declare under our sole responsibility that assembly PV3 conforms with the essential requirements of the EMC directive 2004/108/EC and R&TTE directive 1999/5/EC. A copy of the original declaration of conformity may be found at: www.hunterdouglas.com/RFcertifications. - Page 58 Notes...
- Page 60 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
