Lifting The I-Beam; Re-Installing The X-Axis Assembly - Epilog Laser Helix Replacing Instructions
Replacing the x-axis assembly
Hide thumbs
Also See for Helix:
- Instructions for using manual (6 pages) ,
- Manual (5 pages) ,
- Manual (17 pages)
Table of Contents
Advertisement

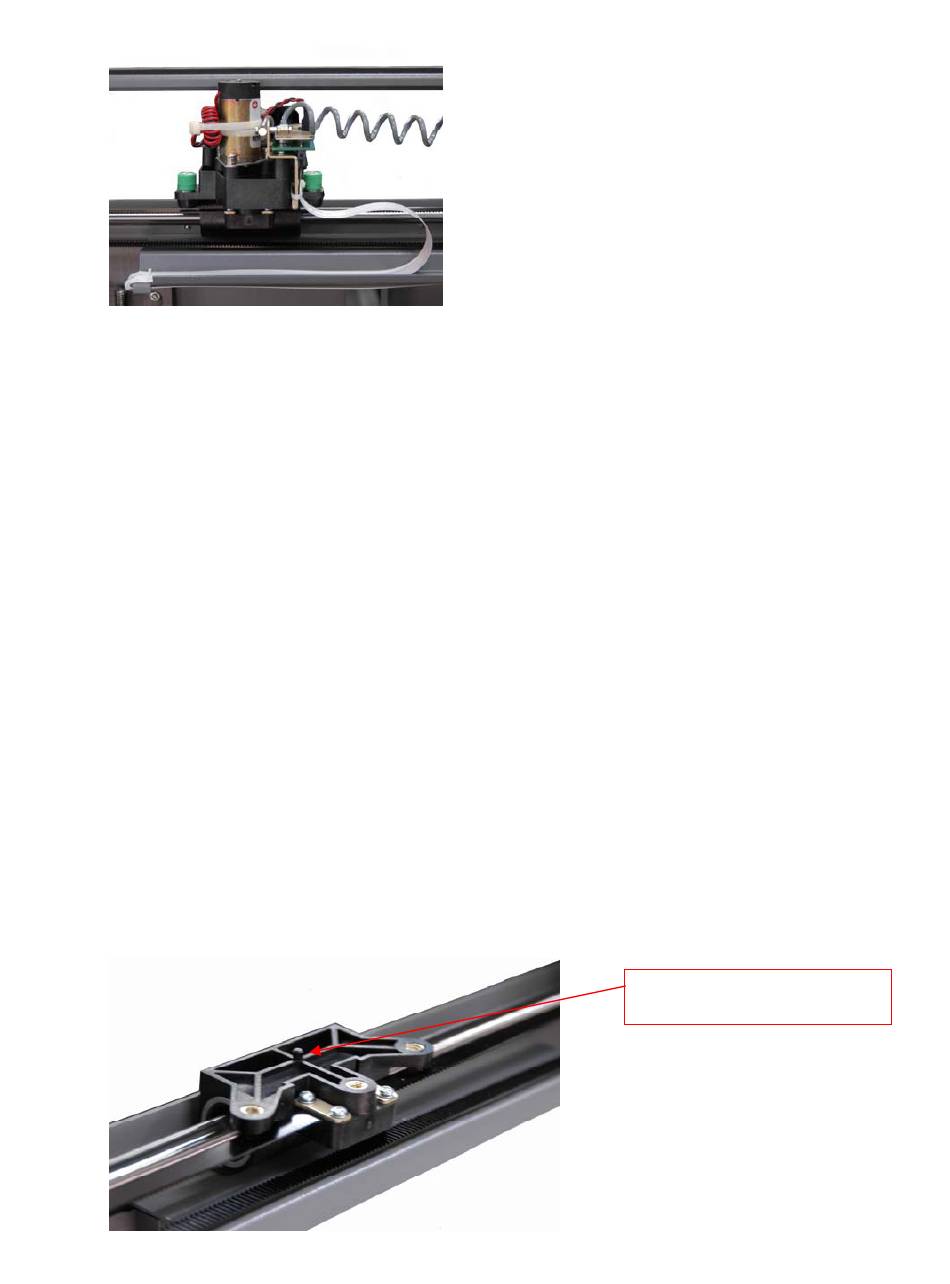

8. Lift the I-beam carefully. Use caution when lifting
the right side of the I-beam. Bring the right side
forward a little to ensure the motor clears the frame
rail.
Re-Installing the X-Axis Assembly
9. Place I-beam on the brackets, making sure to put the
I-beam onto the pins.
Placement Pin
