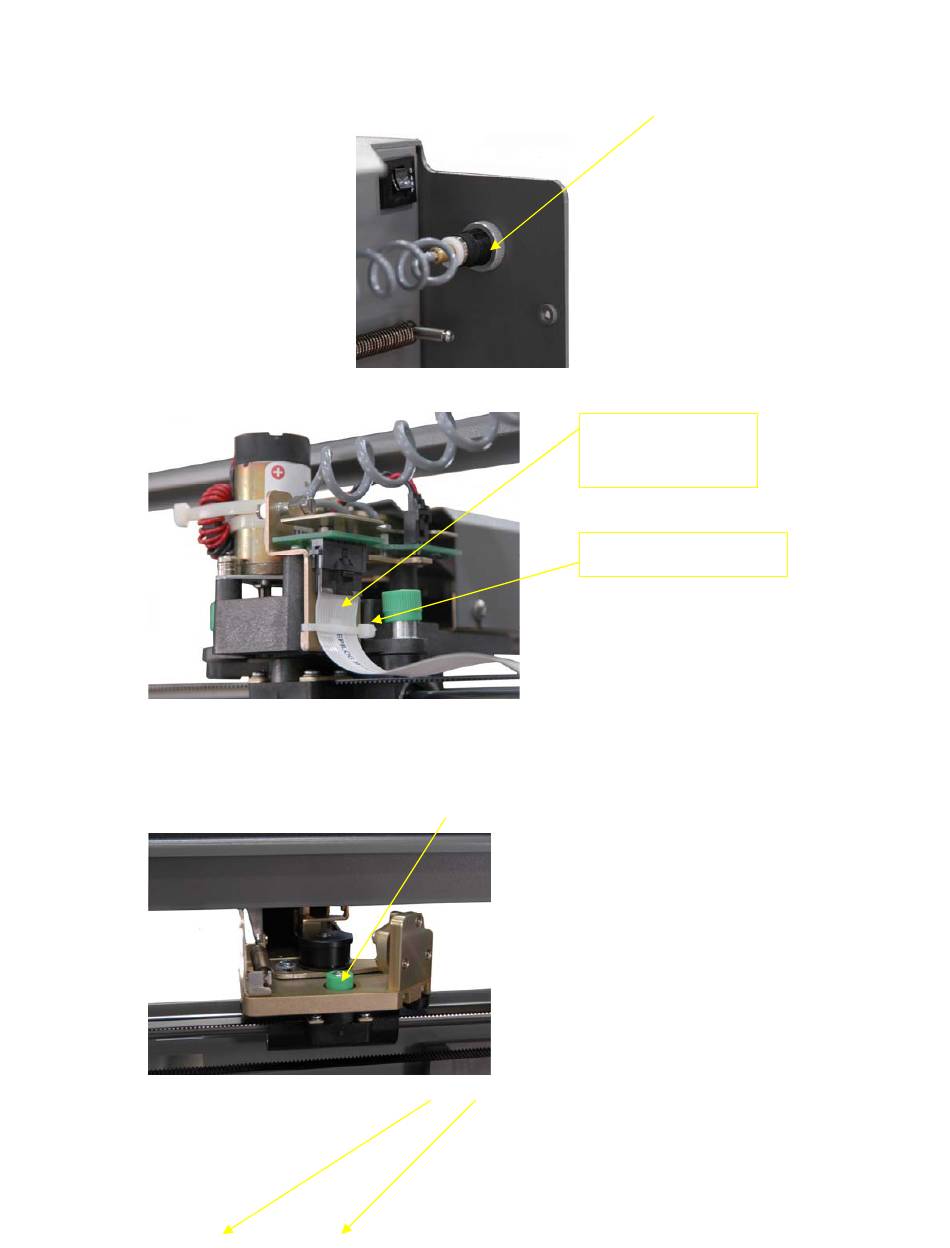

3. Disconnect air intake. Push in the white ring and then
pull the air hose out.
4. Cut the white electrical tie around the white ribbon
cable.
5. Disconnect white ribbon cable.
6. Unscrew the green captive screw on the left side of
the I-beam.
7. Unscrew the two green captive screws on the right side
of the I-beam.
White Ribbon
Cable
Electrical tie
