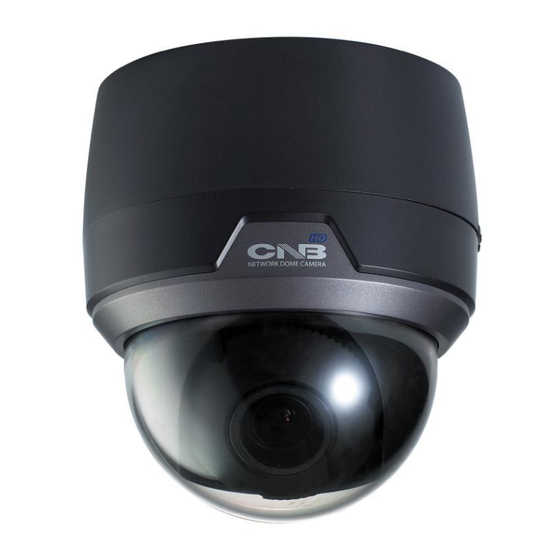

Network dome camera

Advertisement

Quick Links

XNET Network Dome Camera Installation Manual
Ver. 1.2
XNET Network Dome Camera
(NDE5055MF)
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNET NDE5055MF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CNB XNET NDE5055MF

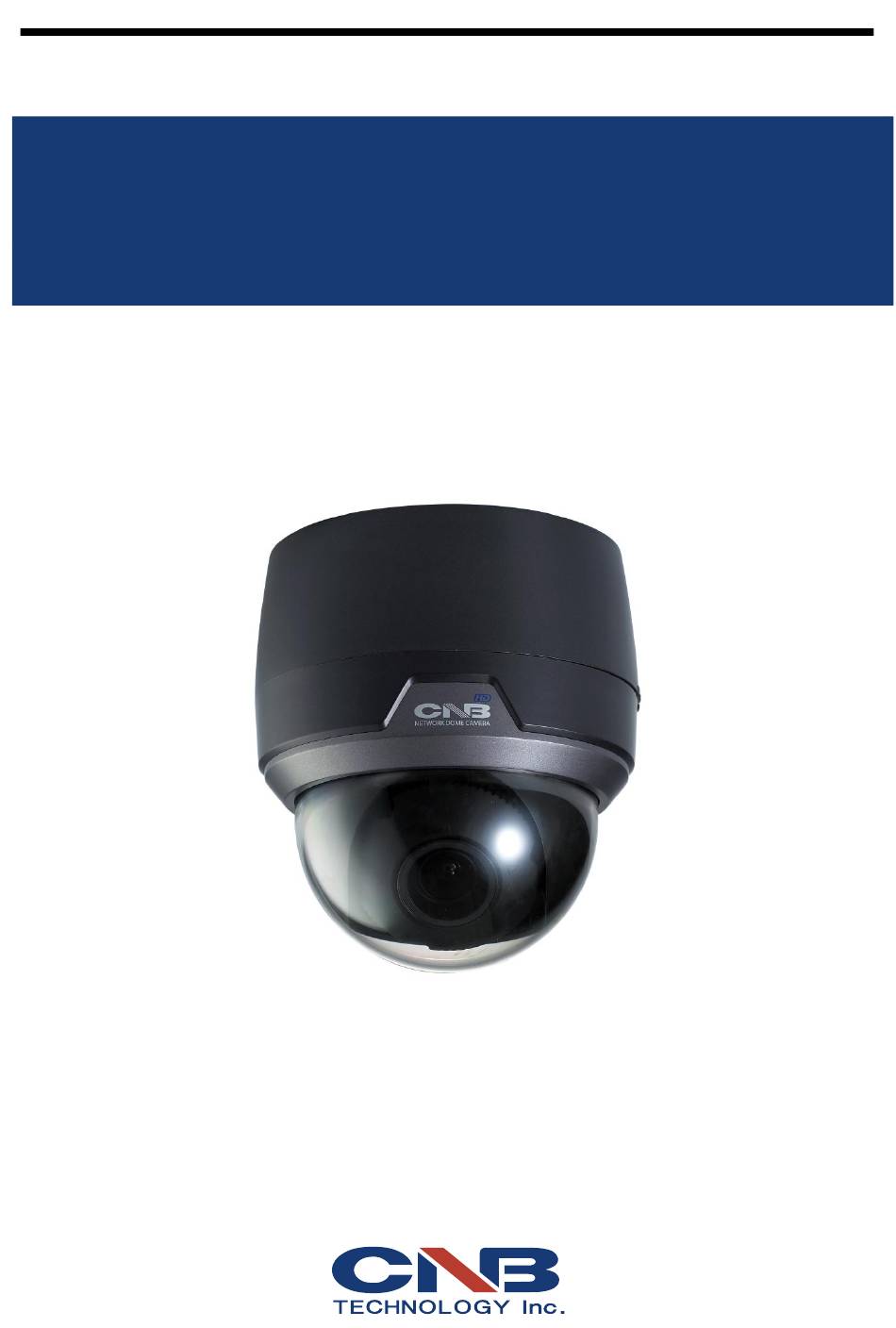

  • Page 1 XNET Network Dome Camera Installation Manual Ver. 1.2 XNET Network Dome Camera (NDE5055MF) Installation Manual...
  • Page 2 Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by use of parts not recommended and by misuse will not be applicable for support.
  • Page 3: Table Of Contents

    XNET Network Dome Camera Installation Manual Index 1. About XNET ........................4 1.1. About XNET .......................... 4 1.2. Features of XNET ........................4 1.3. Applications ........................... 4 2. About the Product ......................5 2.1. Contents ..........................5 2.2. Product Information ....................... 5 2.3.
  • Page 4: About Xnet

    XNET Network Dome Camera Installation Manual 1. About XNET XNET is an internet based security and surveillance system that is compatible with various network conditions through easy installation and user interface as well as multi-functional compressor Codec such as H.264, MJPEG.
  • Page 5: About The Product

    SCREW 3EA, Wall Anchors 3EA Install CD XNET Viewer Program (NDE5055MF) IP-Installer (CNB-CMS) IP Dome Camera A software that assigns an IP address A software that monitors and records (NDE5055MF) to the product Audio and Video signal from the device...
  • Page 6: Hardware Designation

    XNET Network Dome Camera Installation Manual This shows Camera module inside the dome cover. SD CARD SLOT Factory Reset button For Mounting the SD Analog Video SYSTEM LED Recalls factory default Card Slot. Output The camera at the end of boot configurations EASY-SWITCH(Auto Focus) Adjust automatically...
  • Page 7: Connecting Cables

    XNET Network Dome Camera Installation Manual INPUT, OUTPUT  CVBS OUT NETWORK ALARM IN/OUT Audio OUTPUT Audio INPUT POWER Power Input  Use the cable adapter(DC12V JACK) in the package to connect power. Please use the accessory power supply provided in the package. Except when connected to AC24V DC jack please use(DC12V/2A) ...
  • Page 8 XNET Network Dome Camera Installation Manual Do not use the other power connector when powering up the product through PoE. The Product is not covered under warranty when it is damaged by connecting both Ethernet power and 12V DC power (or 24V AC power) to this terminal. Factory Reset ...
  • Page 9: Connecting To Alarm Devices

    XNET Network Dome Camera Installation Manual Alarm Input  Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.) Alarm Sensor device requires a separate power source.
  • Page 10: Software Installation

    XNET Network Dome Camera Installation Manual 3. Software Installation This section provides brief guidelines to install the XNET quickly and to monitor XNET’s Video and Audio signals easily. If you have questions about details not explained in this section or if the product is not functioning as described, please refer to FAQ before contacting the store.
  • Page 11: Cable Connection

    XNET Network Dome Camera Installation Manual Connect XNET to PC directly  User can monitor and configure XNET camera by connecting it to your PC directly. 1. Connect XNET camera to your PC directly using a LAN cable like below. Crossover COMPUTER Network Cable...
  • Page 12 XNET Network Dome Camera Installation Manual 3. Please insert the Setup CD into your CD-ROM drive, and then please setup IPInstaller program. 4. Please click ‘Next’ button when the Setup screen appear. 5. Please click ‘Install’ button to begin the Installation. 6.
  • Page 13 XNET Network Dome Camera Installation Manual 7. XNET IP Installer program is automatically launched like below right after the program installation. Please double click XNET camera on the list. 13 / 22...
  • Page 14 XNET Network Dome Camera Installation Manual 8. XNET camera is successfully connected to your PC. (Internet Explorer will prompt you to install ActiveX. In order to view video, you must accept the ActiveX download. ) NOTE: Please select Setting menu for XNET camera configuration. If the login prompt appears, please enter User name and Password.
  • Page 15 XNET Network Dome Camera Installation Manual Connect XNET with a router  Please connect XNET camera and PC to a router using LAN cables like below. NETWORK HUB COMPUTER Direct Network Cable NOTE: If DHCP server is enabled at your router, XNET camera automatically receives an IP address from your router.
  • Page 16: Installing Ip-Installer Software And Configuring Ip Address

    XNET Network Dome Camera Installation Manual A unique IP address has to be configured in order to connect IP camera and monitoring PC to a network. IP- Installer software provided in the Installation CD (included in the package and also available to download from our website http://www.cnbtec.com) will configure IP address easily.
  • Page 17 XNET Network Dome Camera Installation Manual 2. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 3-2. Figure 3-2. IP Address box 3. When you enter the IP address and click Set button, the box shown in Figure 3-3 will appear. Figure 3-3.
  • Page 18: Using Web Viewer

    XNET Network Dome Camera Installation Manual 4. Using Web Viewer Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide explains about using internet web browser only. For instructions on how to configure network connection using XNET-CMS software, please refer to...
  • Page 19: Web Viewer Page

    XNET Network Dome Camera Installation Manual Web viewer page consists of Video monitor screen and menu option buttons. Figure 4-2. Web Viewer Page 19 / 22...
  • Page 20 XNET Network Dome Camera Installation Manual Item Sub Item Description Captures and saves the current image as a still picture. Capture The image is saved as jpeg file in the following folder: C:\xNetCapture Brings up Menu screen. Setup page for each XNET feature can be opened from this Menu screen. Setting Please refer to [XNET Owner’s Manual] for detail.
  • Page 21: Specification

    Browser Internet Explorer Ver. 6.0 or later (IE9 Not Supported) Applications Web Viewer(Window Web Browser Base) Monitoring Applications Video Snapshot to file (JPEG),NVR,CNB CMS and Utility(IP-Installer,etc) Maintenance System Upgrade Firmware upgrade over HTTP Operating Mechanical -10℃ ~ 50℃/ 0% ~ 80%...
  • Page 22 XNET Network Dome Camera Installation Manual Pan/Tilt/Horizontal 4-Axis Movement for Free Lens Rotation 24VAC(24~28V)/12VDC(11~15V) Dual Voltage Power Maximum Motorize on(FAN on) DC12V : 4.5W / AC24V : 375mA Dimensions / Weight(Net) 119.1(Ø ) mm / 643.5g DOME LINE-A DOME LINE-B 22 / 22...
