- Page 1 M Z-6600RU MULTIZONE AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

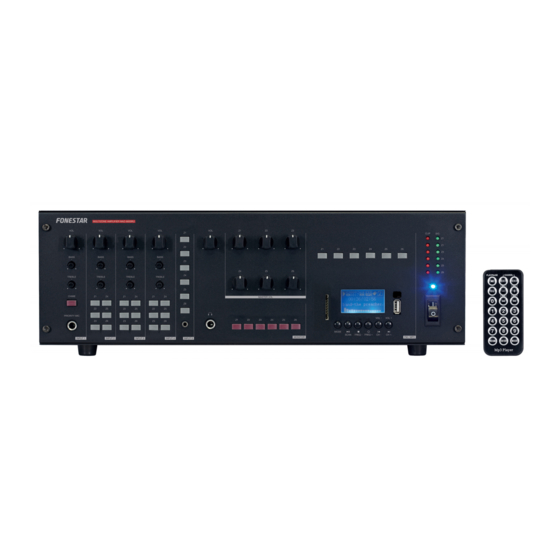

DESCRIPTION - Multizone amplifier with matrix with 5 input channels to 6 output zones with independent volume control. - USB/SD/MP3 player with digital FM radio tuner. - Suitable for commercial installations with several zones and different musical programs. CONTROLS AND FUNCTIONS FRONT PANEL INPUT 1: input 1 volume control. - Page 5 17.- SIGNAL Z1-Z6: LED indicators for output zone 1 to 6 signals. They light up green when a signal is detected in the corresponding output zones. 18.- LED power indictor for the equipment (blue). 19.- POWER: amplifier on/off switch. USB/SD/MP3 PLAYER WITH REMOTE CONTROL Information display for the USB/SD/MP3 player module.
- Page 6 One long press fast forwards/rewinds playback. It also lets you browse through the menu and MP3 submenu options. 14.- 0-9: direct selection number buttons for playing a certain audio track. 15.- ENTER: for accessing the MP3 menu, where the following options can be chosen: - Equalization (EQ) - Playback mode (PLAY MODE) - CHANGE DEVICE...
- Page 7 It also lets you browse through the radio menu and MP3 submenus. 10.- PLAY PAUSE (12): for tuning the FM radio stations automatically. Tuning starts from the lowest frequency Tuning starts from the lowest frequency and the stations will be saved automatically in consecutive memory positions.
-
Page 8: Back Panel
BACK PANEL FM ANTENNA: aerial input for the digital FM tuner. Power supply voltage selector. Input for AC mains connection. Earth screw, to be used if it is not already incorporated in the mains. ZONE 1-6: output for the speakers in each zone. For low impedance 8 Ω speaker connection and high impedance 100/70 V lines. - Page 9 - Power the MAZ-6600RU amplifier using the AC mains supply. - Once the connections have been made according to your needs, connect the equipment to the mains and switch it on.
-
Page 10: Specifications
SPECIFICATIONS MAZ-6600RU CHARACTERISTICS Multizone amplifier. Allocation matrix with 5 input channels to 6 output zones. USB/SD player for MP3 files. Digital FM radio tuner. 6 zones with independent volume control. Phantom power supply. Musical chimes. Paging priority. Remote control for USB/SD/MP3/FM player. -
Page 11: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
