Assembly Instructions; Insert Bolts - Mocka Addi Three Drawer Assembly Instructions Manual

Addi Three Drawer

Assembly Instructions

1
3
E
F
E
C
E
E
CR
G
E
E
G
C
C

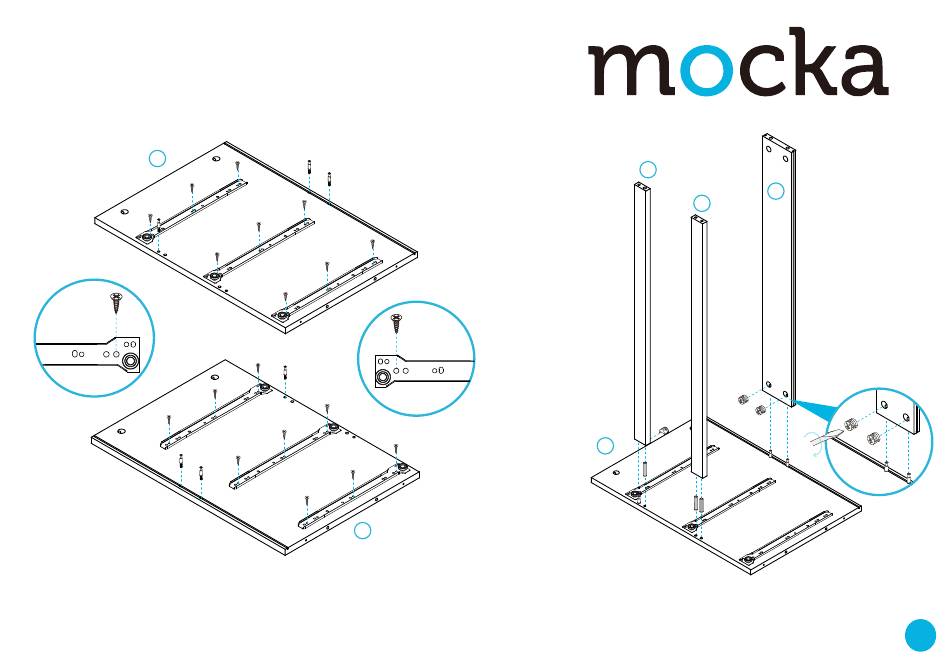

Insert 3x bolts (C) into panel [3] and 3x bolts (C) into panel [4]. Attach 3x
slide rails (G) to panel [4] and secure with 9x small screws (E) . Attach
3x slide rails (F) to panel [3] and secure with 9x small screws (E).Tighten
with a screwdriver.
