We are very grateful for your purchasing
Electronics (Shenzhen) Co., Ltd.
We believe
great convenience to your life and work.
We also believe that the quality and function of
demands for reliable communication.
Notice to the User:
* Government laws prohibit radio communication without permission in areas dominated by
the government.
* Illegal operation is subject to punishment by fine and/or imprisonment.
* Refer service to the well-trained professional technicians only.
Safety
It is important that user is aware of and understands hazards common to the operation of any
radios.
Warning!
Turn off your radio before entering any area with a potentially explosive atmosphere (where
the air contains gas, dust and smog, etc.), such as while taking on fuel, or while parking at a
gasoline service station.
Precautions in Use
Please comply with the following attentions to avoid fire, bodily injury and damage to the
radio.
* The radio is recommended to transmit for 1 minute and receive for 4 minutes. Long time
transmitting or continuous working in high power mode will make the rear side of the radio
generate heat.
* Please do not disassemble or assemble the radio under any circumstances.
* Please do not expose the radio to direct sunlight for a long time; do not place the radio near
any heating devices, either.
* Please do not put the radio in extremely dusty, moist or dabbling places; do not place it on
any unstable surface, either.
* If the radio emits smoke or strange odors, turn it off and remove the battery from the radio
User Manual

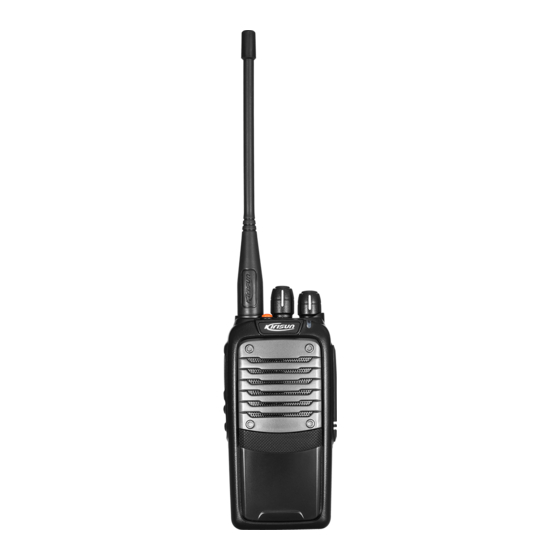

PT568
FM HANDHELD TRANSCEIVER
two-way radio, which always incorporates the latest technology, can bring
brand two-way radios produced by Kirisun
two-way radio can meet your
Advertisement
Table of Contents
Related Manuals for Kirisun PT56803
Summary of Contents for Kirisun PT56803
- Page 1 User Manual PT568 FM HANDHELD TRANSCEIVER We are very grateful for your purchasing brand two-way radios produced by Kirisun Electronics (Shenzhen) Co., Ltd. We believe two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work.
-
Page 2: Open Package Inspection
Kirisun dealer without delay. Contents 1. Open Package Inspection 2. Preparation 2.1 Charge the battery 2.2 Install/Remove the battery 2.3 Install the antenna 2.4 Install external speaker/MIC 2.5 Install the belt clip 3. Radio Overview 4. -
Page 3: Charge The Battery
Antenna Belt Clip Adapter Intelligent Charger Strap Battery 2. Preparation 2.1 Charge the battery Insert the cable plug of the adapter into the jack at the back of the charger. Then insert the adapter into an applicable AC power output socket. The three LEDs will flash for about one second, and then the green LED will be constantly on when the charger is normal. - Page 4 and the charger is in the protected status, in which you should not charge the battery compulsorily. Please remove the battery and cut the power of the charger. Note: * The radio battery has not been charged when leaving the factory; please charge the battery before using the radio for the first time.
-
Page 5: Install The Antenna
To remove the battery, please push the latch at the lower end of the radio forward, the lower part of the battery will bounce up automatically. Then, loose the belt clip slightly and remove the battery. Note: Please avoid short circuit of the battery terminals and do not throw the battery into fire. Do not tear down the shell of the battery by yourself. -
Page 6: Radio Overview
3. Radio Overview 1. LED indicator Solid red — The radio is transmitting. Solid green — The radio is receiving. Blinking red — The radio is in low battery. 2. Channel selector knob Rotate the knob to select channels 1-116. 3. - Page 7 ① Powering up the radio Rotate the Power/Volume control knob clockwise to turn on the radio. If the dealer has set the alert tone, a sound of “Bee” will be heard. ② Adjusting the volume Press the preprogrammed “Squelch Off” button to hear background noise. Then rotate the Power/Volume control knob to adjust the volume.
-
Page 8: Functions Of Programmable Buttons
⑤ Receiving Release the button, the radio will return to the receiving status. The dealer may have programmed CTCSS/DCS signaling in your radio. On the channels with CTCSS/DCS signaling programmed, you can only hear calls from other radio with the same CTCSS/DCS. 5. -
Page 9: Auxiliary Function
Monitor Press the preprogrammed “Monitor” button to disable CTCSS, DCS signaling, and you can receive signals that cannot be heard under normal operation. Press it again to resume normal operation. Momentary Press and hold the preprogrammed “Momentary Squelch Off” button to Squelch Off open squelch;... -
Page 10: Voice Announcement
radio is not capable of transmitting signals. 6.4 Voice Announcement This function can be enabled or disabled by the dealer. There are two languages available: Chinese and English. If changing the channel by channel selector knob, the radio will announce the number of the selected channel after the selection is finished. -
Page 11: Lone Worker
stay at the priority channel; if there is no signal, it will return to the original channel. c) The revert channel (Tx channel) during the scan can be designated by the dealer. There are following options available: Scan start channel: The radio will transmit signals on the channel for which the scan list applies. -
Page 12: Wired Clone Mode
7. Wired Clone Mode If the wired clone function is enabled, the radio will not quit automatically after entering the Wired Clone Mode. To return to normal user mode, the user needs to restart the radio. The operating steps go as follows: 1. -
Page 13: Major Specifications
DC7.4V 10. FCC Notice Your KIRISUN radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. - Page 14 ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the KIRISUN belt-clip which is listed in instructions when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side.
- Page 15 Exposing the inside of the transceiver to water will result in serious damage to the transceiver. FCC CAUTION: Changes or modifications to this device, not expressly approved by KIRISUN, could void your authority to operate this transceiver under FCC regulations.
