1.3 Overview

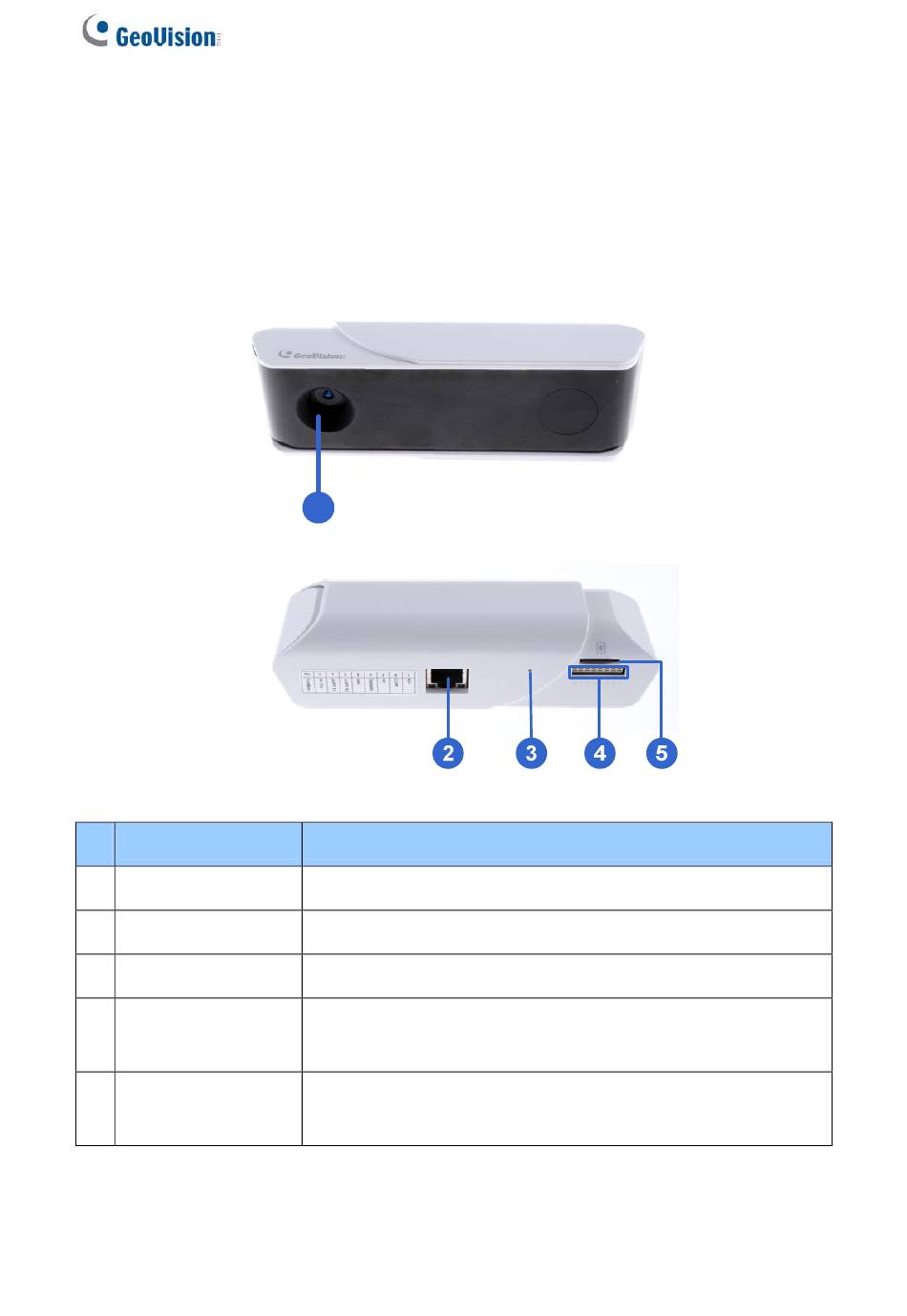

This section illustrates the components of GV-3D People Counter V2.

1.3.1 Bottom and Rear Views

No. Name
1. Lens
2 Ethernet Port
3 Default Button
4 Terminal Block
5 Memory Card Slot
4
1
Figure 1-2
Function
Captures people's image.
A plug for PoE (IEEE 802.3af).
Resets all configurations to factory default settings.
The connectors for the sensor input, alarm output and GPS
receiver, see 1.3.3 Auxiliary Device Connectors.
Inserts a micro SD card (SD/SDHC/SDXC/UHS-I, Class 10) to
store recording data.
