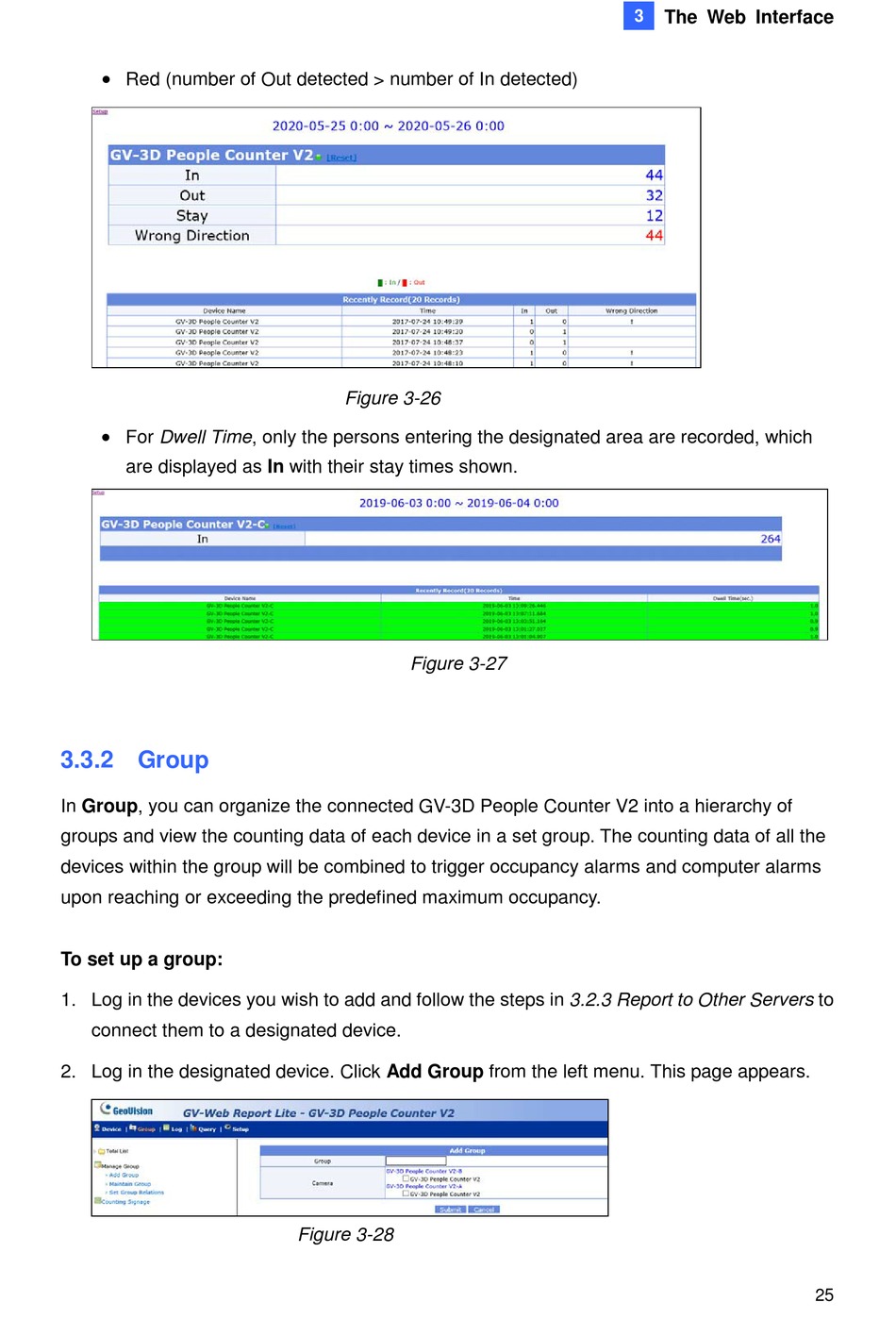

Red (number of Out detected > number of In detected)

For Dwell Time, only the persons entering the designated area are recorded, which
are displayed as In with their stay times shown.

3.3.2 Group

In Group, you can organize the connected GV-3D People Counter V2 into a hierarchy of
groups and view the counting data of each device in a set group. The counting data of all the
devices within the group will be combined to trigger occupancy alarms and computer alarms
upon reaching or exceeding the predefined maximum occupancy.
To set up a group:
1. Log in the devices you wish to add and follow the steps in 3.2.3 Report to Other Servers to
connect them to a designated device.
2. Log in the designated device. Click Add Group from the left menu. This page appears.
Figure 3-26
Figure 3-27
Figure 3-28
