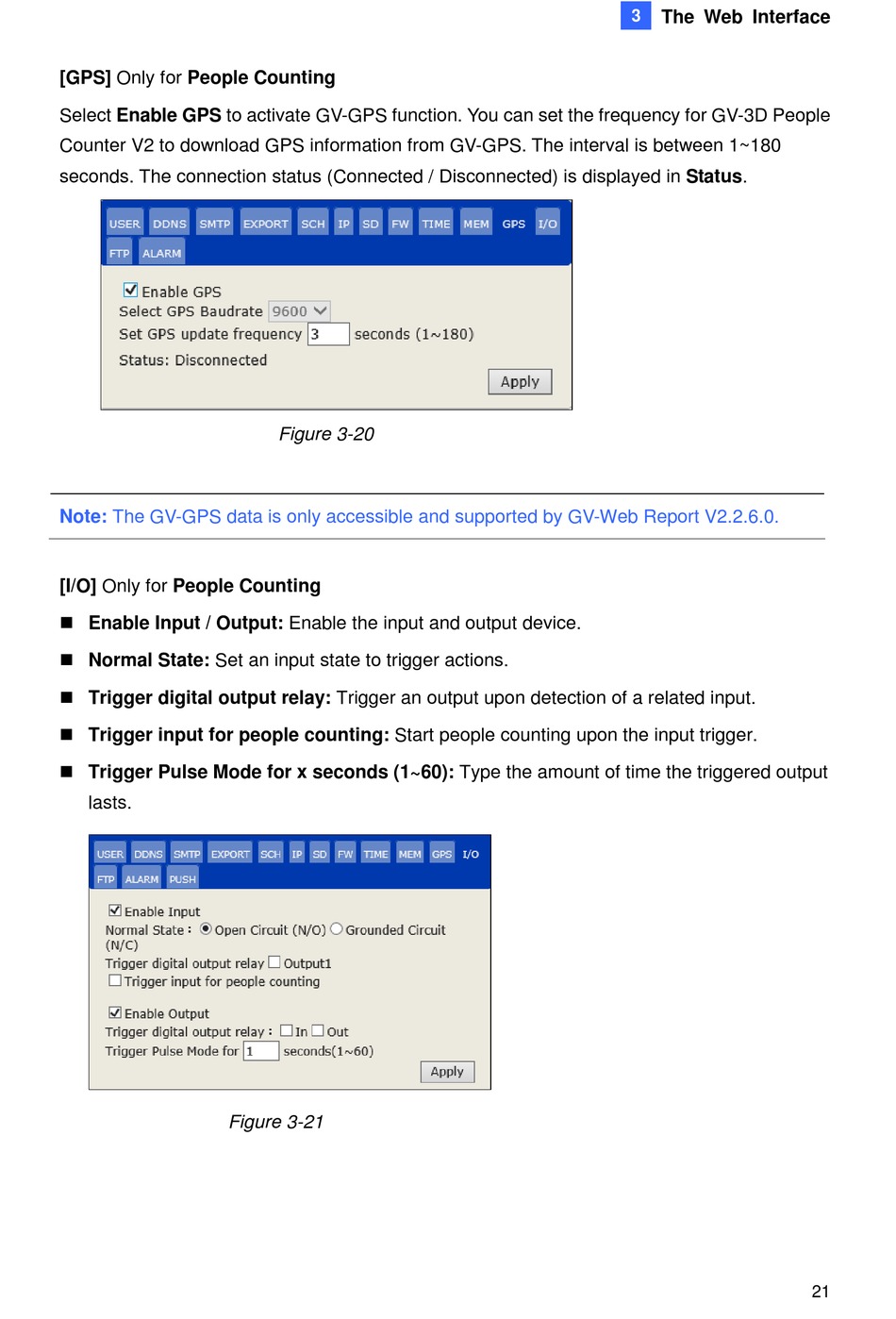

3 The Web Interface
[GPS] Only for People Counting
Select Enable GPS to activate GV-GPS function. You can set the frequency for GV-3D People
Counter V2 to download GPS information from GV-GPS. The interval is between 1~180
seconds. The connection status (Connected / Disconnected) is displayed in Status.
Figure 3-20
Note: The GV-GPS data is only accessible and supported by GV-Web Report V2.2.6.0.
[I/O] Only for People Counting
 Enable Input / Output: Enable the input and output device.
 Normal State: Set an input state to trigger actions.
 Trigger digital output relay: Trigger an output upon detection of a related input.
 Trigger input for people counting: Start people counting upon the input trigger.
 Trigger Pulse Mode for x seconds (1~60): Type the amount of time the triggered output
lasts.
Figure 3-21
