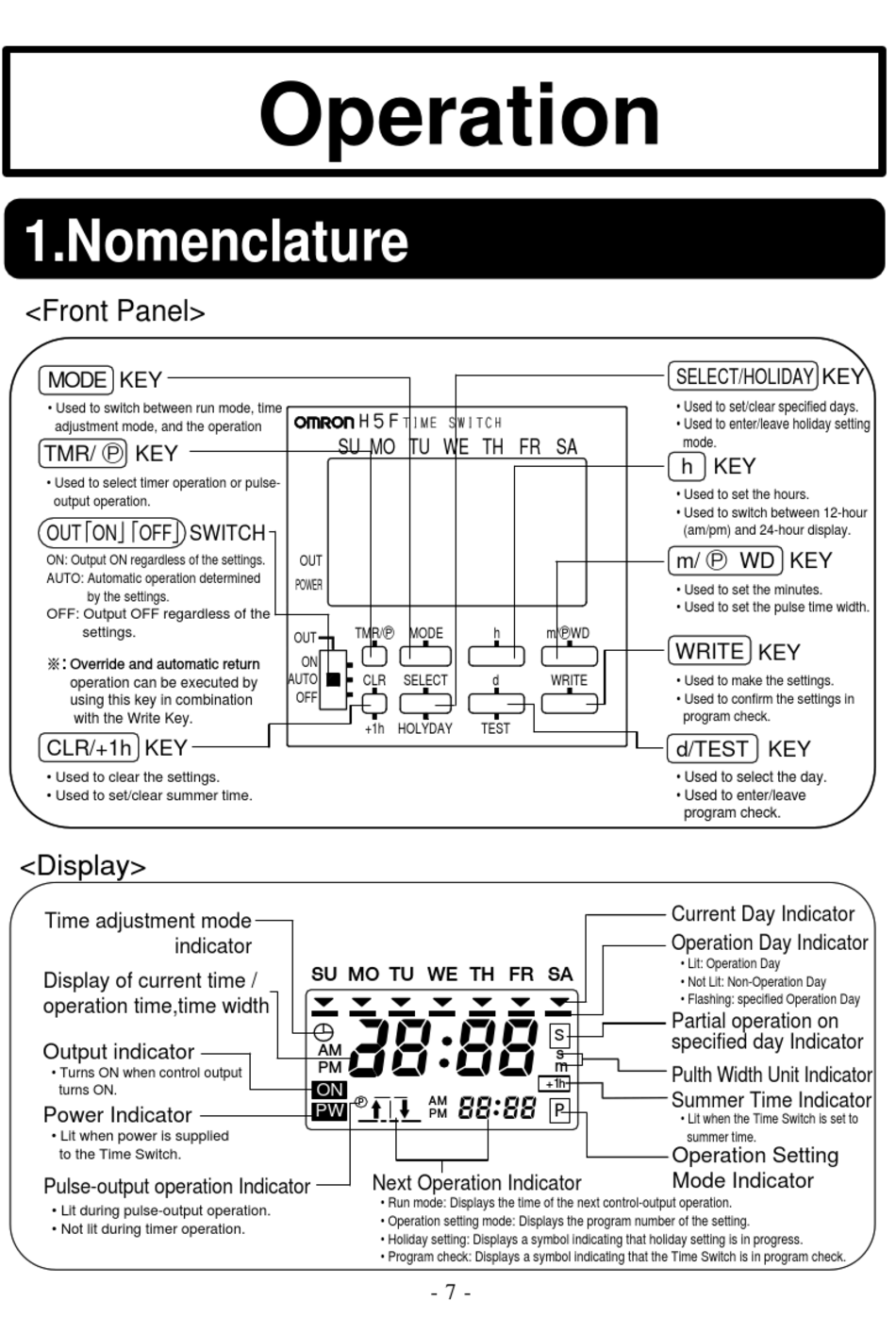

1.Nomenclature

<Front Panel>
MODE KEY
• Used to switch between run mode, time
adjustment mode, and the operation
TMR/ P KEY
• Used to select timer operation or pulse-
output operation.
OUT 「ON」 「OFF」 SWITCH
ON: Output ON regardless of the settings.
AUTO: Automatic operation determined
by the settings.
OFF: Output OFF regardless of the
settings.
※ ： Override and automatic return
operation can be executed by
using this key in combination
with the Write Key.
CLR/+1h KEY
• Used to clear the settings.
• Used to set/clear summer time.
<Display>
Time adjustment mode
indicator
Display of current time /
operation time,time width
Output indicator
• Turns ON when control output
turns ON.
Power Indicator
• Lit when power is supplied
to the Time Switch.
Pulse-output operation Indicator
• Lit during pulse-output operation.
• Not lit during timer operation.

Operation

SU MO TU WE TH FR SA
OUT
POWER
TMR/P MODE
OUT
ON
AUTO CLR SELECT
OFF
+1h HOLYDAY
SU MO TU WE TH FR SA
d 88 38
AM
PM
ON
P
PW
Next Operation Indicator
• Run mode: Displays the time of the next control-output operation.
• Operation setting mode: Displays the program number of the setting.
• Holiday setting: Displays a symbol indicating that holiday setting is in progress.
• Program check: Displays a symbol indicating that the Time Switch is in program check.
h m/PWD
d WRITE
TEST
Ｓ
s
m
+1h
AM
88 88
●
Ｐ
PM
●
- 7 -
SELECT/HOLIDAY KEY
• Used to set/clear specified days.
• Used to enter/leave holiday setting
mode.
h KEY
• Used to set the hours.
• Used to switch between 12-hour
(am/pm) and 24-hour display.
m/ P WD KEY
• Used to set the minutes.
• Used to set the pulse time width.
WRITE KEY
• Used to make the settings.
• Used to confirm the settings in
program check.
d/TEST KEY
• Used to select the day.
• Used to enter/leave
program check.
Current Day Indicator
Operation Day Indicator
• Lit: Operation Day
• Not Lit: Non-Operation Day
• Flashing: specified Operation Day
Partial operation on
specified day Indicator
Pulth Width Unit Indicator
Summer Time Indicator
• Lit when the Time Switch is set to
summer time.
Operation Setting
Mode Indicator
