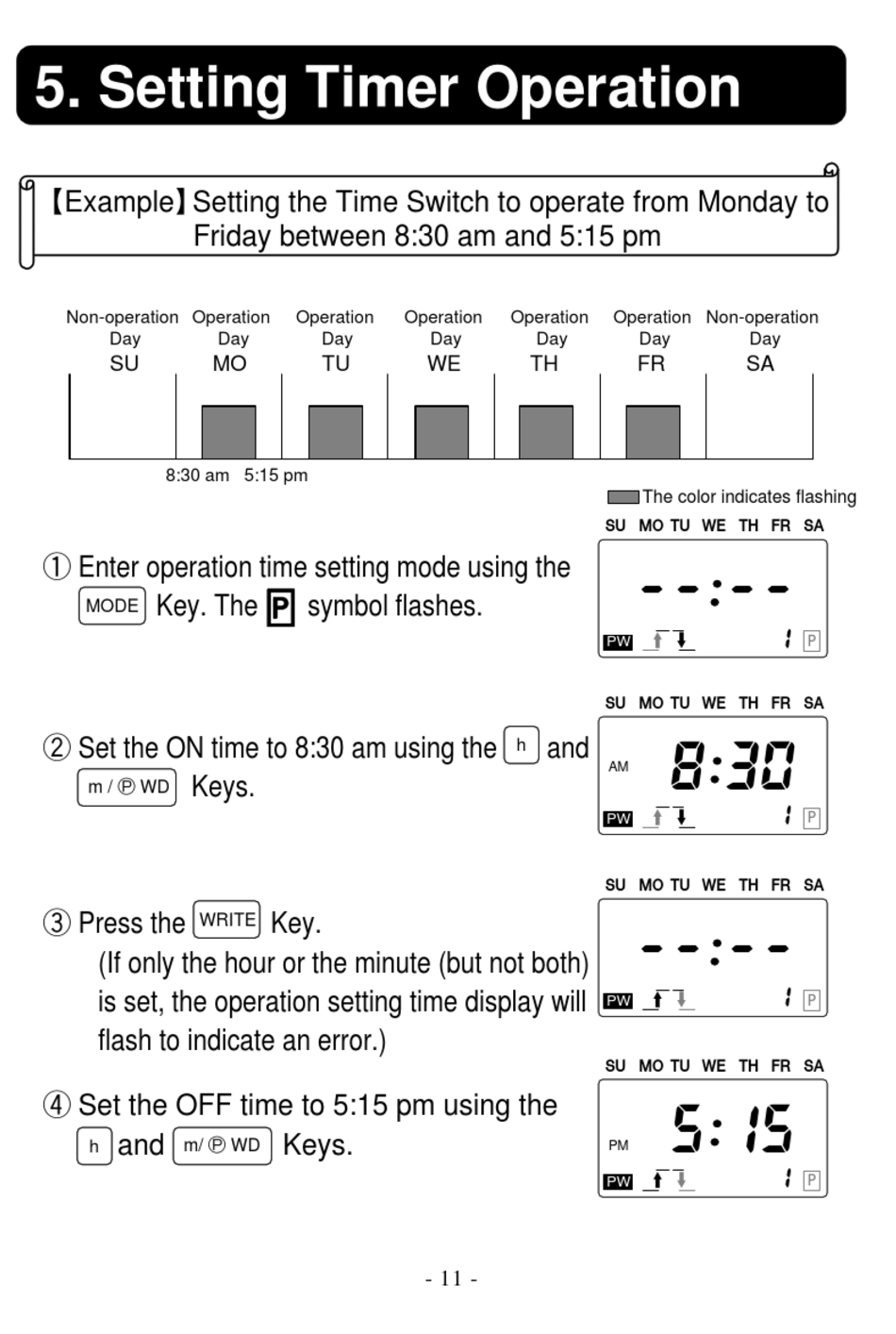

5. Setting Timer Operation

【Example】 Setting the Time Switch to operate from Monday to
Friday between 8:30 am and 5:15 pm
Non-operation Operation
Day
SU
8:30 am 5:15 pm
① Enter operation time setting mode using the
Key. The
MODE
② Set the ON time to 8:30 am using the
Keys.
m / P WD
③ Press the
WRITE
(If only the hour or the minute (but not both)
is set, the operation setting time display will
flash to indicate an error.)
④ Set the OFF time to 5:15 pm using the
and
m/ P WD
h
Operation
Day Day
MO TU
symbol flashes.
Key.
Keys.
Operation Operation
Day Day
WE TH
and
h
- 11 -
Operation Non-operation
Day Day
FR SA
The color indicates flashing
SU MO TU WE TH FR SA
-- --
PW
SU MO TU WE TH FR SA
8 30
AM
PW
SU MO TU WE TH FR SA
-- --
PW
SU MO TU WE TH FR SA
5 15
PM
PW
1
Ｐ
1
Ｐ
1
Ｐ
1
Ｐ
