Kimball Office Definition 108 Highback Organizer Assembly Instructions

Definition ®
108" Highback Organizer

Tools Required

Phillips Screwdriver
I
or Allen Wrench

Package Contents

Double-sided Adhesive
I
Tape

Installation

Note: The 108" Highback Organizer is shipped as two pieces:
a right and a left.
Note: It is recommended that more than one person be used
to assemble and install this unit.

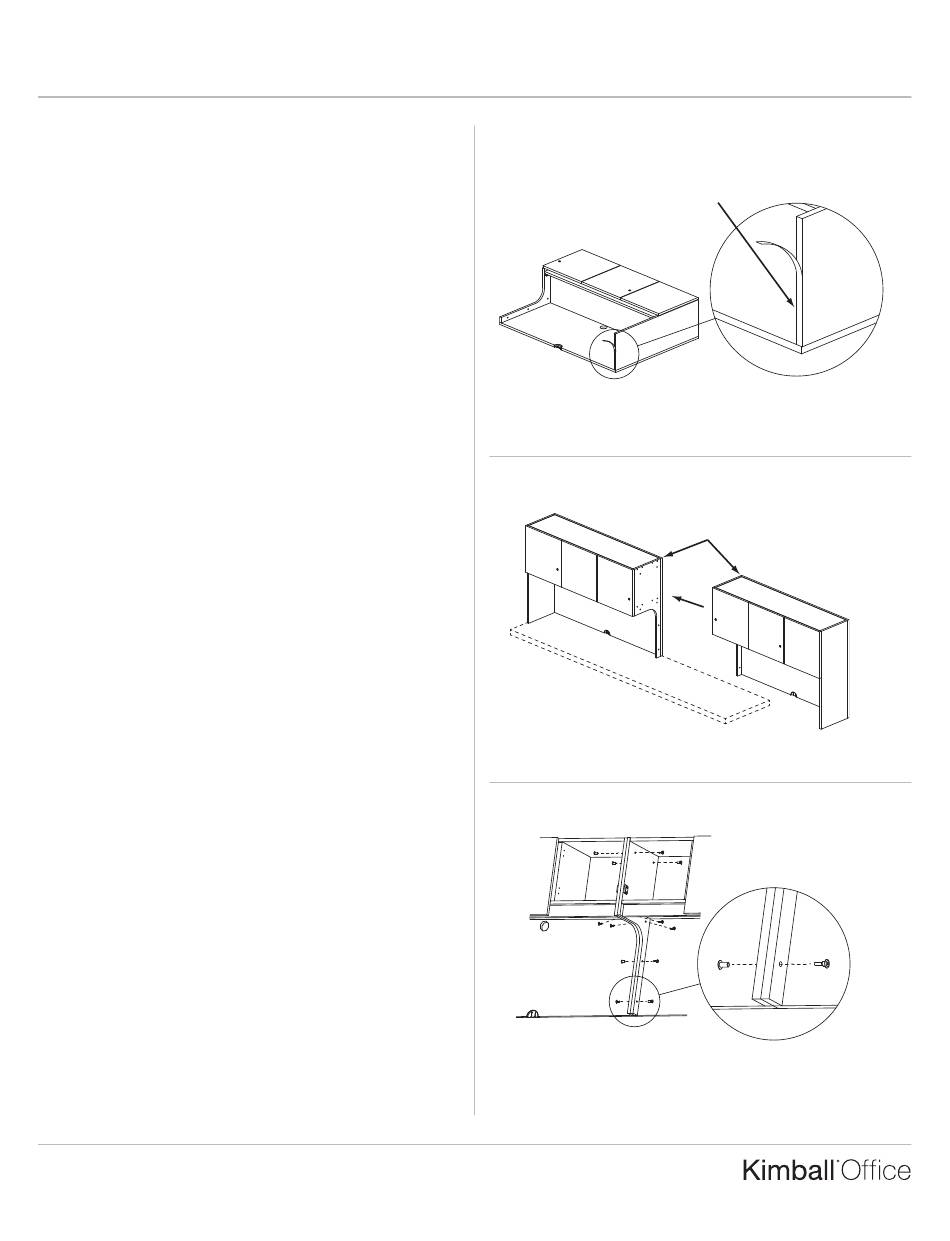

1. Lay both organizer halves on their backs. Cut a piece of
double-sided adhesive tape for each outer end panel. Peel
off one side of the protective backing and attach the tape to
the underside of each end panel. (Figure A).
2. Lift the first highback half into its desired location on the
worksurface. Lift the second highback half into position
against the first unit. Make sure units align and are flush on
all sides. (Figure B).
Caution: Make sure first unit is held steady while locating
second unit.
3. Align connecting holes in highbacks and attach highbacks
together using the six (6) provided connecting bolts. Insert
half of a connector bolt into one connecting hole, and insert
the other half into the opposite connecting hole. Tighten all
bolts securely, making sure both highback halves are flush
against each other with no gaps. (Figure C).
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1847146 Revision B-10
Tape Measure or Ruler
I
Scissors or Utility Knife
I
Connecting Bolts
I
Figure A
Attach double-sided tape
to each outer end panel
Figure B
Figure C
Attach units using
six connector bolts
Assembly Instructions
Page 1 of 2
Align
