Kimball Office Footprint 6"W Wardrobe Assembly Instructions

Footprint ®
6"W Wardrobe

Tools Required

Level
I
3
I ⁄ " nutdriver or socket
16
Electric drill
I
1
⁄ " drill bit
I
8

Package Contents

6"W Wardrobe
I

Description

The 6"W wardrobe is NOT freestanding and must be secured to
an adjacent casegood item or a wall. An 18"W wardrobe is used
as an example of a casegood item in these instructions
(Figure A).
Note: Hardware necessary to secure wardrobe is not provided in
the package contents.

Installation

1. Position 6"W wardrobe on desired side of adjacent
casegood or wall (Figure A).
2. Secure 6"W wardrobe to adjacent item using C-clamp(s).
Make sure side panels are flush and that there are no gaps
between the units (Figure B).
3. Level the 6"W wardrobe by using the
socket to adjust the floor glides. When level, ensure all
glides are snug against the floor, then insert plastic glide
hole plugs (Figure B).
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 2066788 Revision B-08
"C" clamp
I
I Phillips screwdriver
1
Six #8 x 1 ⁄ " Phillips head
I
4
wood screws or appropriate
fasteners
4 plastic glide hole plugs
I
3
⁄ " nutdriver or
16

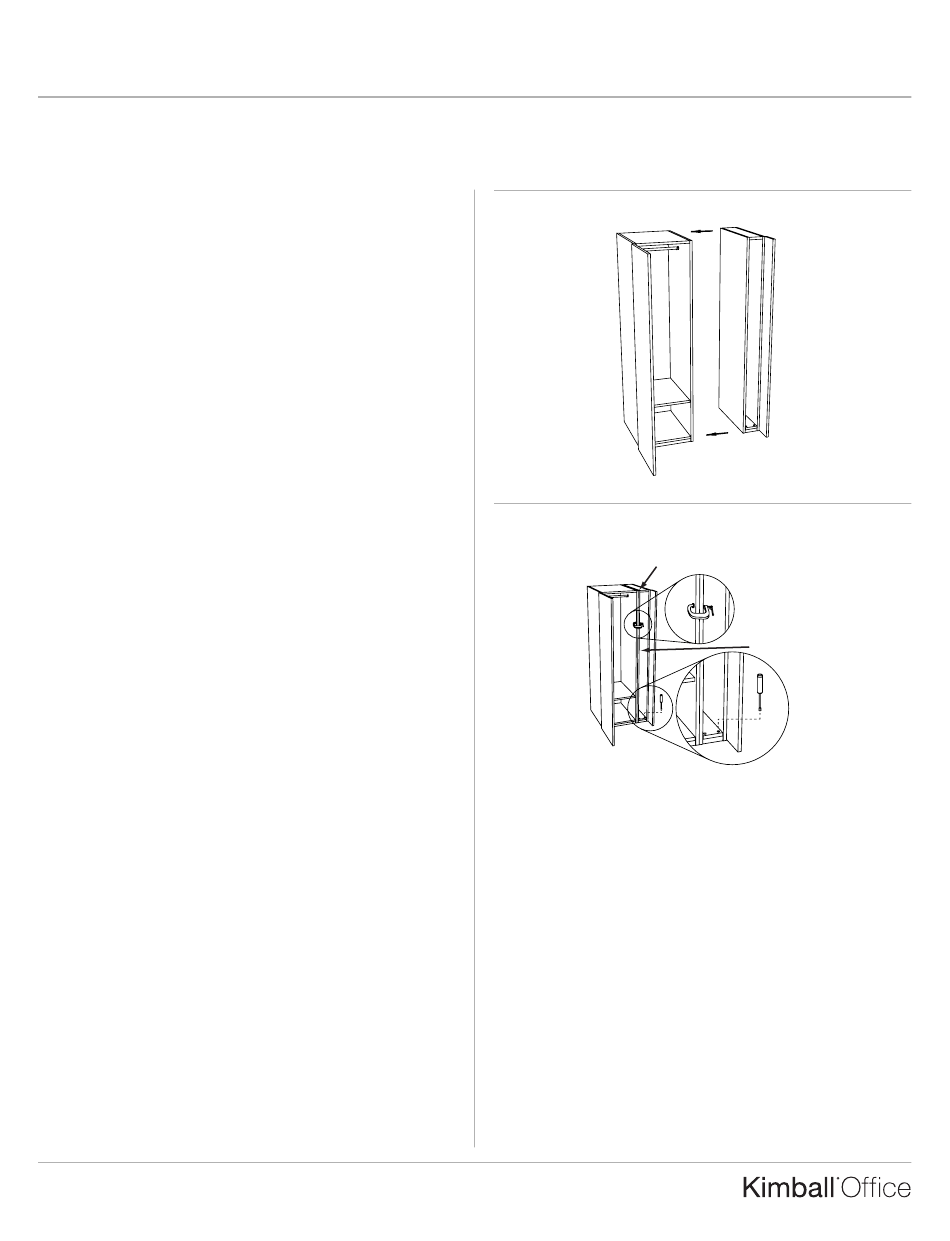

Figure A
Figure B
Both Units Flush
Assembly Instructions
Page 1 of 2
No Gaps
