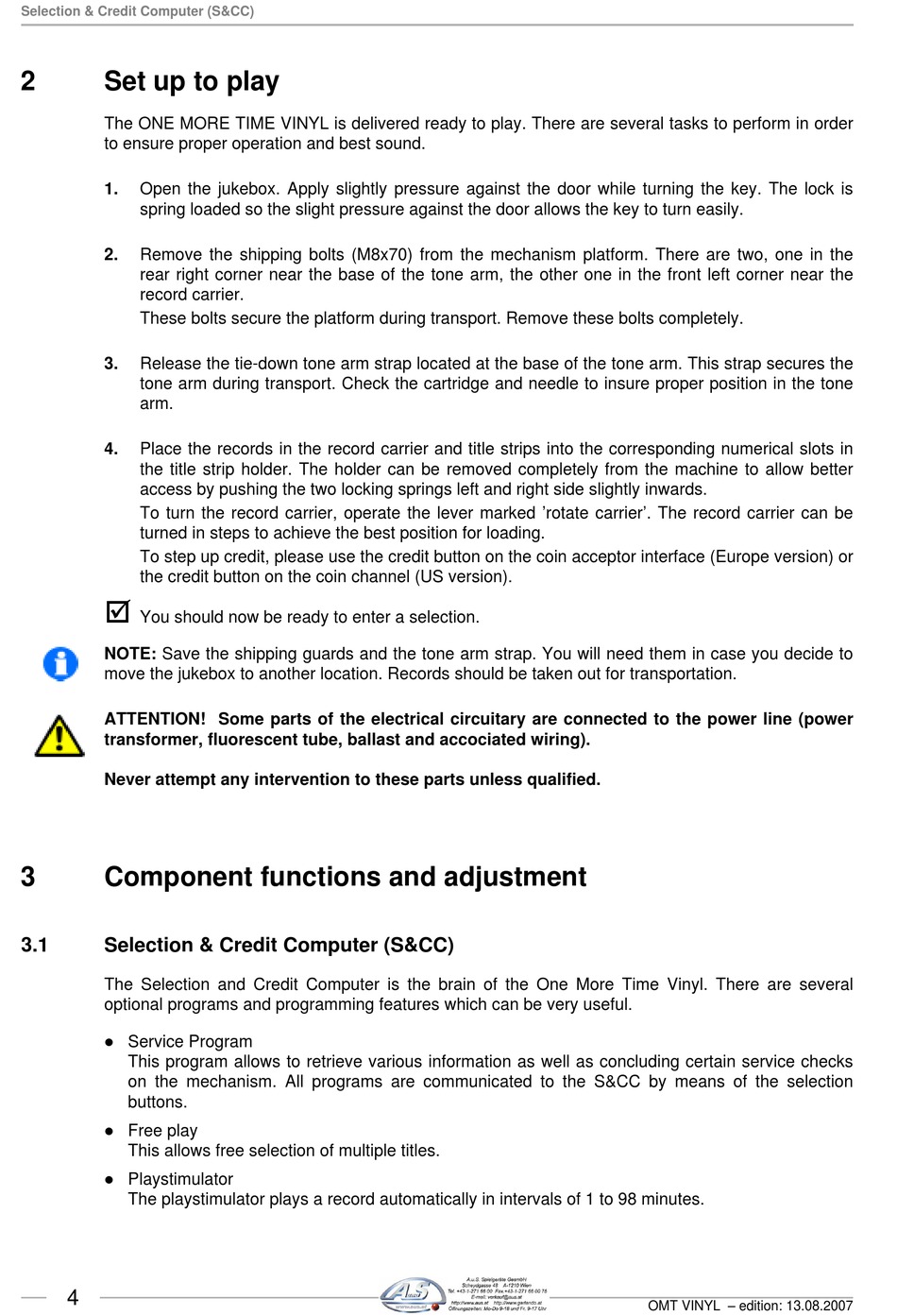

Selection & Credit Computer (S&CC)
2
Set up to play
The ONE MORE TIME VINYL is delivered ready to play. There are several tasks to perform in order
to ensure proper operation and best sound.
1.
Open the jukebox. Apply slightly pressure against the door while turning the key. The lock is
spring loaded so the slight pressure against the door allows the key to turn easily.
2.
Remove the shipping bolts (M8x70) from the mechanism platform. There are two, one in the
rear right corner near the base of the tone arm, the other one in the front left corner near the
record carrier.
These bolts secure the platform during transport. Remove these bolts completely.
3.
Release the tie-down tone arm strap located at the base of the tone arm. This strap secures the
tone arm during transport. Check the cartridge and needle to insure proper position in the tone
arm.
4.
Place the records in the record carrier and title strips into the corresponding numerical slots in
the title strip holder. The holder can be removed completely from the machine to allow better
access by pushing the two locking springs left and right side slightly inwards.
To turn the record carrier, operate the lever marked 'rotate carrier'. The record carrier can be
turned in steps to achieve the best position for loading.
To step up credit, please use the credit button on the coin acceptor interface (Europe version) or
the credit button on the coin channel (US version).
"
You should now be ready to enter a selection.
NOTE: Save the shipping guards and the tone arm strap. You will need them in case you decide to
move the jukebox to another location. Records should be taken out for transportation.
ATTENTION! Some parts of the electrical circuitary are connected to the power line (power
transformer, fluorescent tube, ballast and accociated wiring).
Never attempt any intervention to these parts unless qualified.
3
Component functions and adjustment
3.1
Selection & Credit Computer (S&CC)
The Selection and Credit Computer is the brain of the One More Time Vinyl. There are several
optional programs and programming features which can be very useful.
!
Service Program
This program allows to retrieve various information as well as concluding certain service checks
on the mechanism. All programs are communicated to the S&CC by means of the selection
buttons.
!
Free play
This allows free selection of multiple titles.
!
Playstimulator
The playstimulator plays a record automatically in intervals of 1 to 98 minutes.
4
OMT VINYL – edition: 13.08.2007
