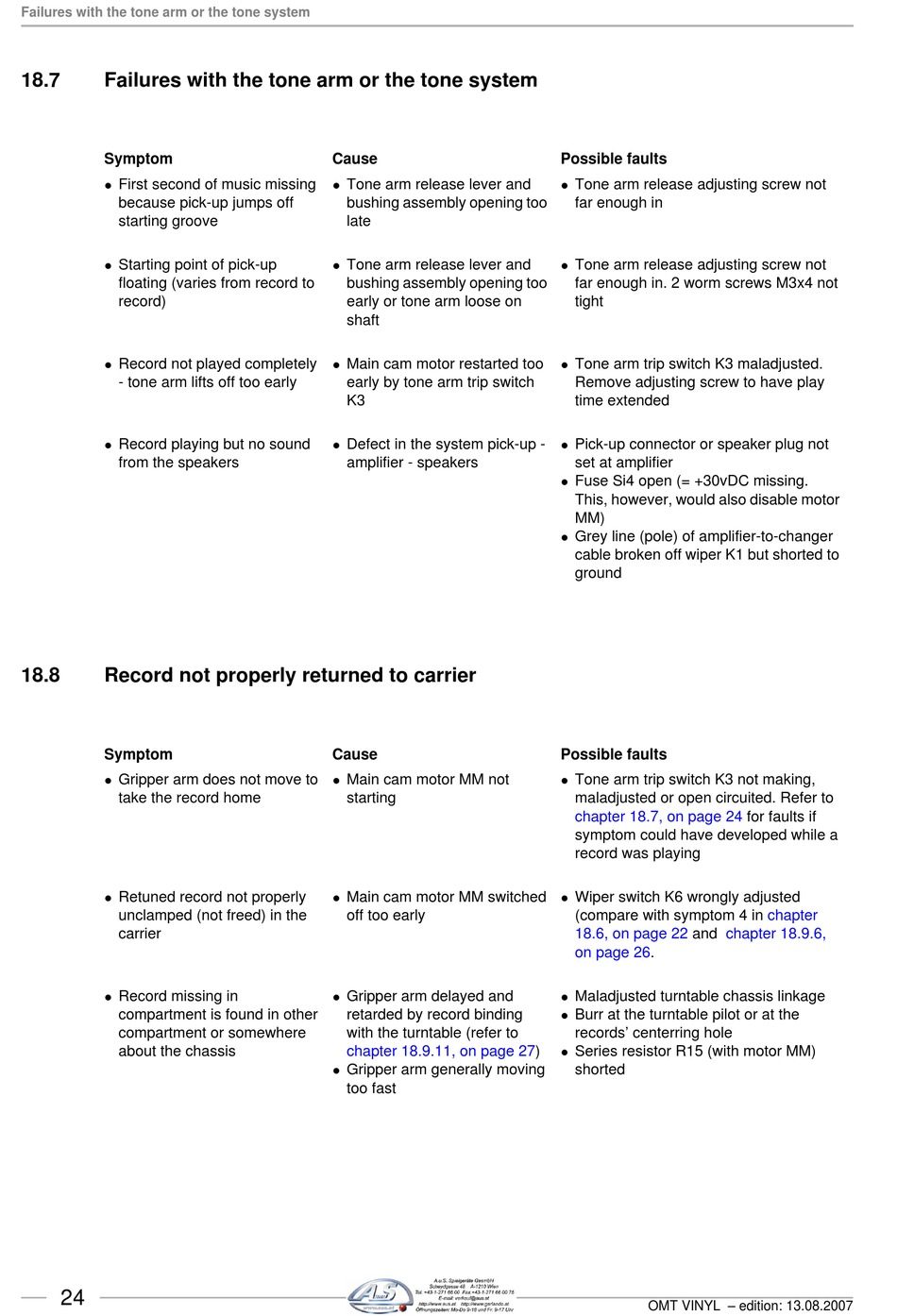

Failures with the tone arm or the tone system

18.7 Failures with the tone arm or the tone system
Symptom
First second of music missing
!
because pick-up jumps off
starting groove
Starting point of pick-up
!
floating (varies from record to
record)
Record not played completely
!
- tone arm lifts off too early
Record playing but no sound
!
from the speakers
18.8

Record not properly returned to carrier

Symptom
Gripper arm does not move to
!
take the record home
Retuned record not properly
!
unclamped (not freed) in the
carrier
Record missing in
!
compartment is found in other
compartment or somewhere
about the chassis
24
Cause
Tone arm release lever and
!
bushing assembly opening too
late
Tone arm release lever and
!
bushing assembly opening too
early or tone arm loose on
shaft
Main cam motor restarted too
!
early by tone arm trip switch
K3
Defect in the system pick-up -
!
amplifier - speakers
Cause
Main cam motor MM not
!
starting
Main cam motor MM switched
!
off too early
Gripper arm delayed and
!
retarded by record binding
with the turntable (refer to
chapter 18.9.11, on page
Gripper arm generally moving
!
too fast
Possible faults
Tone arm release adjusting screw not
!
far enough in
Tone arm release adjusting screw not
!
far enough in. 2 worm screws M3x4 not
tight
Tone arm trip switch K3 maladjusted.
!
Remove adjusting screw to have play
time extended
Pick-up connector or speaker plug not
!
set at amplifier
Fuse Si4 open (= +30vDC missing.
!
This, however, would also disable motor
MM)
Grey line (pole) of amplifier-to-changer
!
cable broken off wiper K1 but shorted to
ground
Possible faults
Tone arm trip switch K3 not making,
!
maladjusted or open circuited. Refer to
chapter 18.7, on page 24
symptom could have developed while a
record was playing
Wiper switch K6 wrongly adjusted
!
(compare with symptom 4 in
18.6, on page 22
on page 26.
Maladjusted turntable chassis linkage
!
Burr at the turntable pilot or at the
!
records' centerring hole
27) Series resistor R15 (with motor MM)
!
shorted
OMT VINYL – edition: 13.08.2007
for faults if
chapter
and chapter 18.9.6,
