Failures of the illumination, lamps and power system generally

18

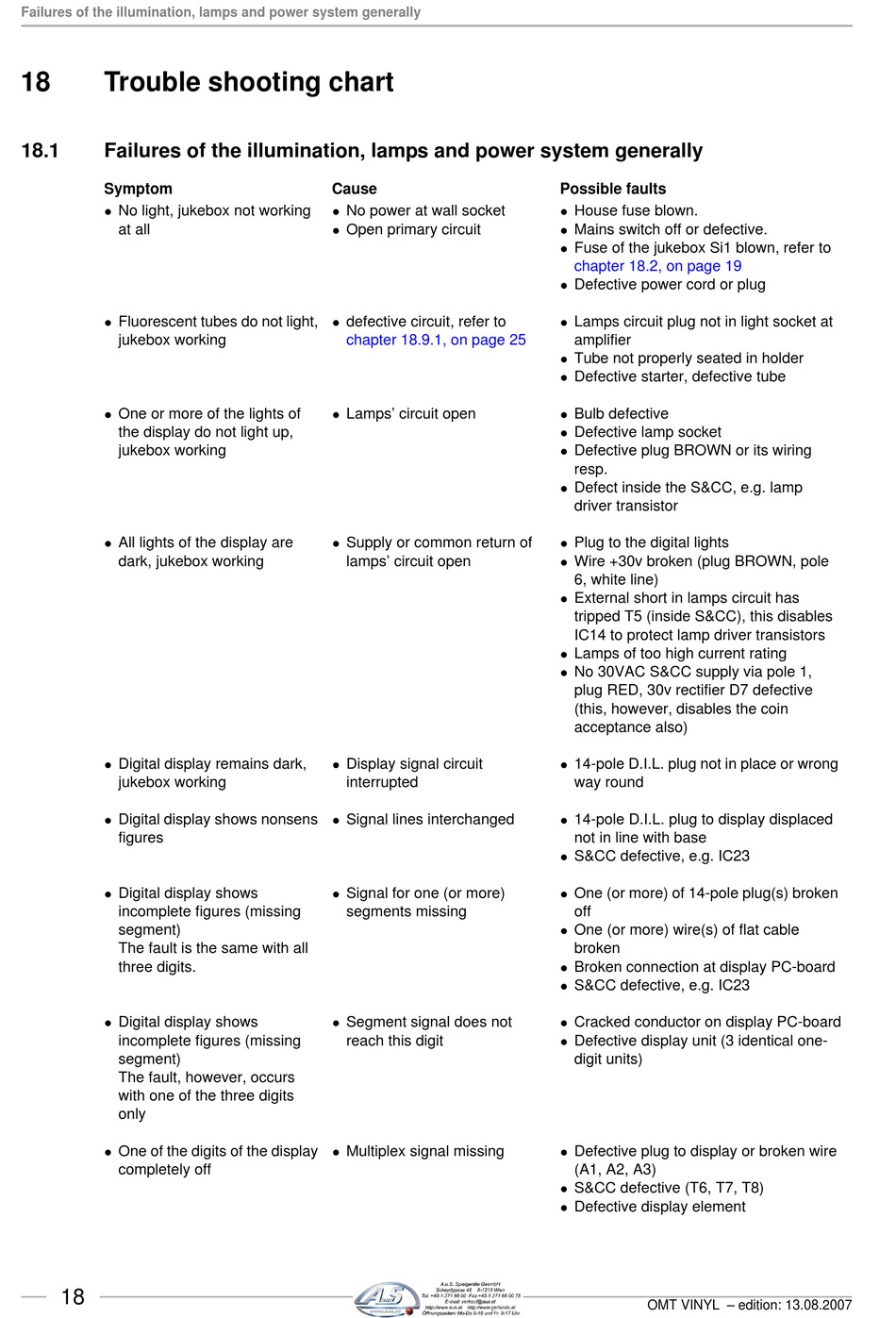

Trouble shooting chart

18.1 Failures of the illumination, lamps and power system generally
Symptom
No light, jukebox not working
!
at all
Fluorescent tubes do not light,
!
jukebox working
One or more of the lights of
!
the display do not light up,
jukebox working
All lights of the display are
!
dark, jukebox working
Digital display remains dark,
!
jukebox working
Digital display shows nonsens
!
figures
Digital display shows
!
incomplete figures (missing
segment)
The fault is the same with all
three digits.
Digital display shows
!
incomplete figures (missing
segment)
The fault, however, occurs
with one of the three digits
only
One of the digits of the display
!
completely off
18
Cause
No power at wall socket
!
Open primary circuit
!
defective circuit, refer to
!
chapter 18.9.1, on page 25
Lamps' circuit open
!
Supply or common return of
!
lamps' circuit open
Display signal circuit
!
interrupted
Signal lines interchanged
!
Signal for one (or more)
!
segments missing
Segment signal does not
!
reach this digit
Multiplex signal missing
!
Possible faults
House fuse blown.
!
Mains switch off or defective.
!
Fuse of the jukebox Si1 blown, refer to
!
chapter 18.2, on page 19
Defective power cord or plug
!
Lamps circuit plug not in light socket at
!
amplifier
Tube not properly seated in holder
!
Defective starter, defective tube
!
Bulb defective
!
Defective lamp socket
!
Defective plug BROWN or its wiring
!
resp.
Defect inside the S&CC, e.g. lamp
!
driver transistor
Plug to the digital lights
!
Wire +30v broken (plug BROWN, pole
!
6, white line)
External short in lamps circuit has
!
tripped T5 (inside S&CC), this disables
IC14 to protect lamp driver transistors
Lamps of too high current rating
!
No 30VAC S&CC supply via pole 1,
!
plug RED, 30v rectifier D7 defective
(this, however, disables the coin
acceptance also)
14-pole D.I.L. plug not in place or wrong
!
way round
14-pole D.I.L. plug to display displaced
!
not in line with base
S&CC defective, e.g. IC23
!
One (or more) of 14-pole plug(s) broken
!
off
One (or more) wire(s) of flat cable
!
broken
Broken connection at display PC-board
!
S&CC defective, e.g. IC23
!
Cracked conductor on display PC-board
!
Defective display unit (3 identical one-
!
digit units)
Defective plug to display or broken wire
!
(A1, A2, A3)
S&CC defective (T6, T7, T8)
!
Defective display element
!
