1

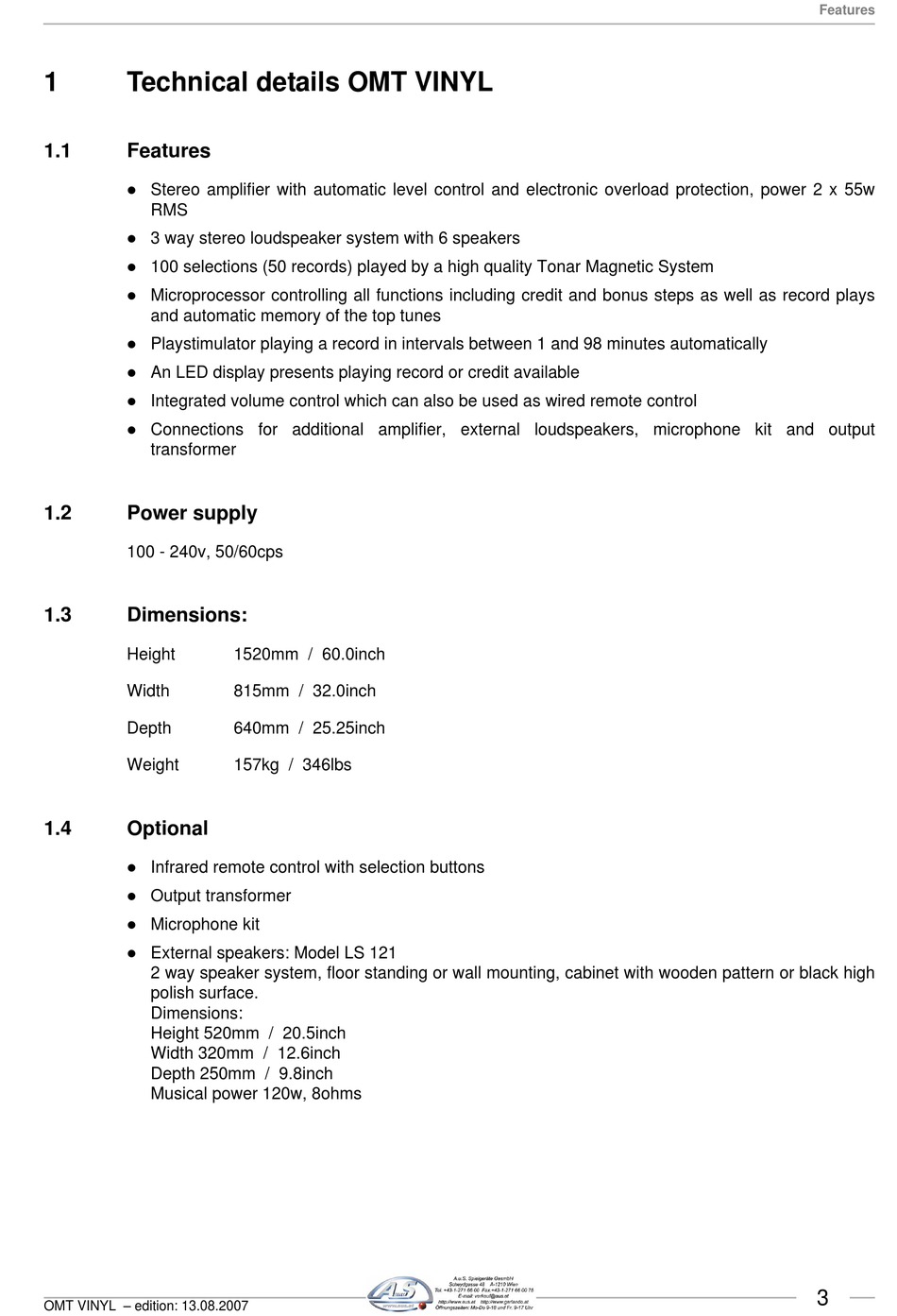

Technical details OMT VINYL
1.1
Features
!
Stereo amplifier with automatic level control and electronic overload protection, power 2 x 55w
RMS
!
3 way stereo loudspeaker system with 6 speakers
!
100 selections (50 records) played by a high quality Tonar Magnetic System
!
Microprocessor controlling all functions including credit and bonus steps as well as record plays
and automatic memory of the top tunes
!
Playstimulator playing a record in intervals between 1 and 98 minutes automatically
!
An LED display presents playing record or credit available
!
Integrated volume control which can also be used as wired remote control
!
Connections for additional amplifier, external loudspeakers, microphone kit and output
transformer
1.2
Power supply
100 - 240v, 50/60cps
1.3
Dimensions:
Height
Width
Depth
Weight
1.4
Optional
!
Infrared remote control with selection buttons
!
Output transformer
!
Microphone kit
!
External speakers: Model LS 121
2 way speaker system, floor standing or wall mounting, cabinet with wooden pattern or black high
polish surface.
Dimensions:
Height 520mm / 20.5inch
Width 320mm / 12.6inch
Depth 250mm / 9.8inch
Musical power 120w, 8ohms
OMT VINYL – edition: 13.08.2007
1520mm / 60.0inch
815mm / 32.0inch
640mm / 25.25inch
157kg / 346lbs
Features
3
