Verification of power voltage

The voltage settings are marked on
the cover
transformer. Machines for USA are
set to 117v. They have a special
transformer according to UL standard
which is not adjustable. Jukeboxes
"UNI-Pack" are shipped with 230v
setting. Mains voltage is indicated on
the label of the transformer cover. The
mains fuse (T3.15A/230v F6A/117v)
is located on the left bottom side in-
between the three terminals for the bill
acceptor, the external mains switch
and the fluorescent lamps.

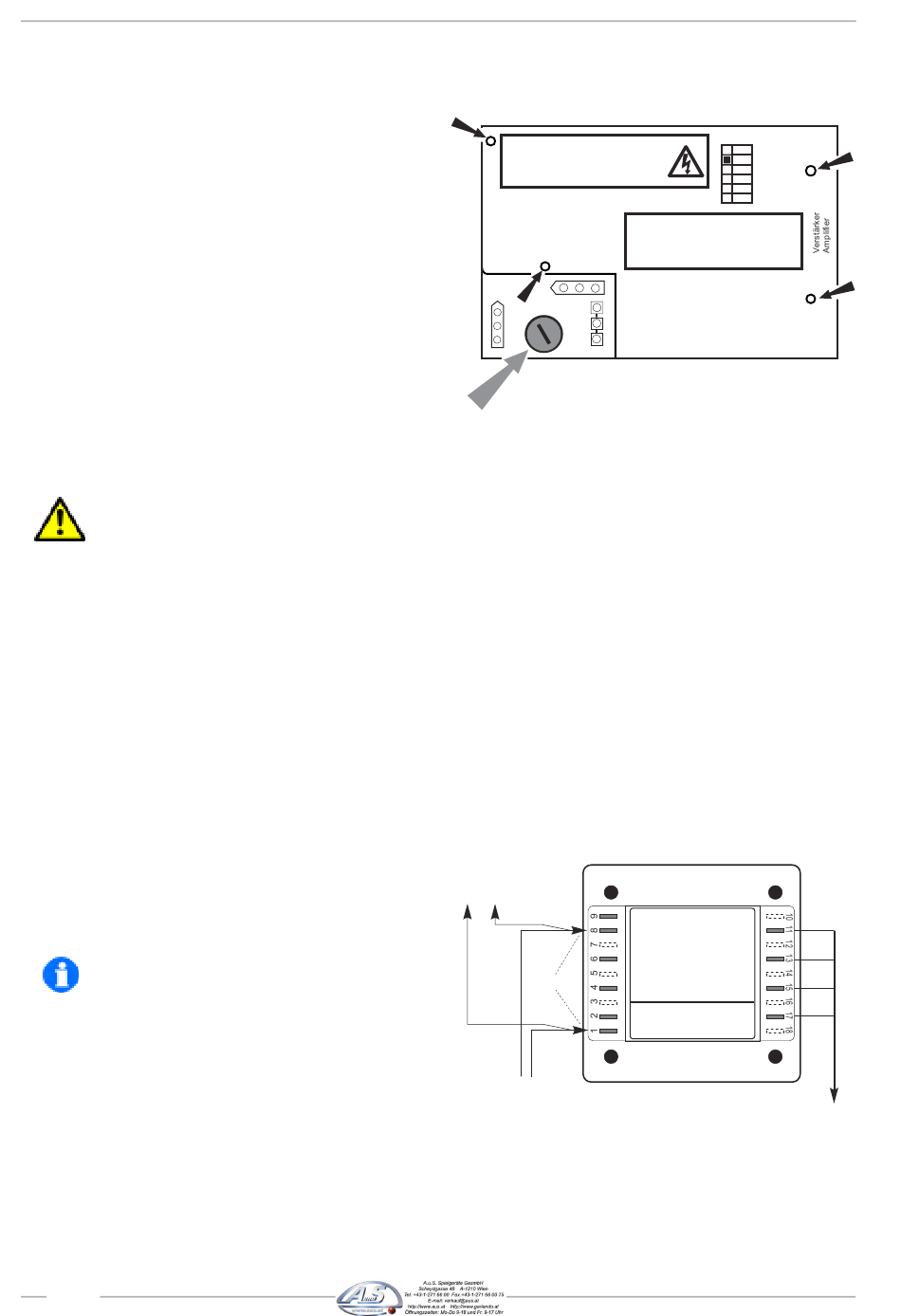

Loosen the four screws to remove the
cover plate (small arrows) to get
access to the mains transformer.
ATTENTION!
attempt any intervention to these parts unless qualified!
The position of the two plug connectors on the transformer terminals 1 to 9 (primary side) indicates
the current voltage setting. The following combinations are possible:
240v = 1 - 9
230v = 1 - 8
220v = 2 - 9
210v = 2 - 8
117v = 1 - 6
100v = 2 - 6
Notice that these settings cannot be
made on
according
version).
NOTE: Never connect the fluorescent
supply to other contact.
If you intend to change the power
voltage to a higher voltage (e.g. from
117v to 230v) it is recommended to
use a subtransformer
fluorescent lamps or change the
ballast according to the used voltage
(e.g. for 230v).
10
plate of the mains
Always remove power plug before opening transformer cover plate. Never
machines produced
to UL standard (US
for the
Achtung
Vor A nahme er appe en Netzstecker
ziehen
arning
Shock hazar o not open
ur Beachtung
Netzsicherung
gleicher
Mains Fuse
Schein-
erwen en,
210-240V - T 4A
annehmer
aution
100-117V - F 6A
Bill-
replace onl
acceptor
Externer Hauptschalter
External Mains switch
Leuchtstofflampen
Fluorescent Lamps
230V / 117V
Netzsicherung/
Mains Fuse
210-240V - T3,15A
100-117V - F6A
fluorescent
lamps
Mains voltage-Netzspannung
bk
bl
1 - 8 = 230V
Temperaturwächter
thermalfuse
Deutsche Wurlitzer GmbH
gy Art.-Nr. 0058498 K99 210VA
VDE 0551/ EN 60742 50/60Hz
br
mains
240
Netzspannung
230
50/60 Hz
220
210
Mains Voltage
117
50/60 cps
100
Nur Sicherungen mit
r e un gleichem ert
um Schä en zu ermei en
To re uce the risk of fire
with same t p an rating fuses
y/r
240V = 1 - 9
230V = 1 - 8
220V = 2 - 9
wt
210V = 2 - 8
117V = 1 - 6
100V = 2 - 6
bk
= 2 - 4
wt/r
amplifier
