Record carrier does not rotate
!
although the carrier latch
opens after a selection
A-side selections (odd
!
numbers) are not played but
the B-side of selected record
is played instead
Gripper arm does not move to
!
take the record out of the
carrier although the carrier
has stopped at the correct
position. After approx. 3
seconds the carrier moves to
the next selection if further
selections have been made
Tone arm not moving to play
!
record, selected record was
properly brought to the
turntable
Turntable does not rotate,
!
record to be played is properly
brought to the turntable
Record on turntable returned
!
to carrier before play has
commenced
OMT VINYL – edition: 13.08.2007

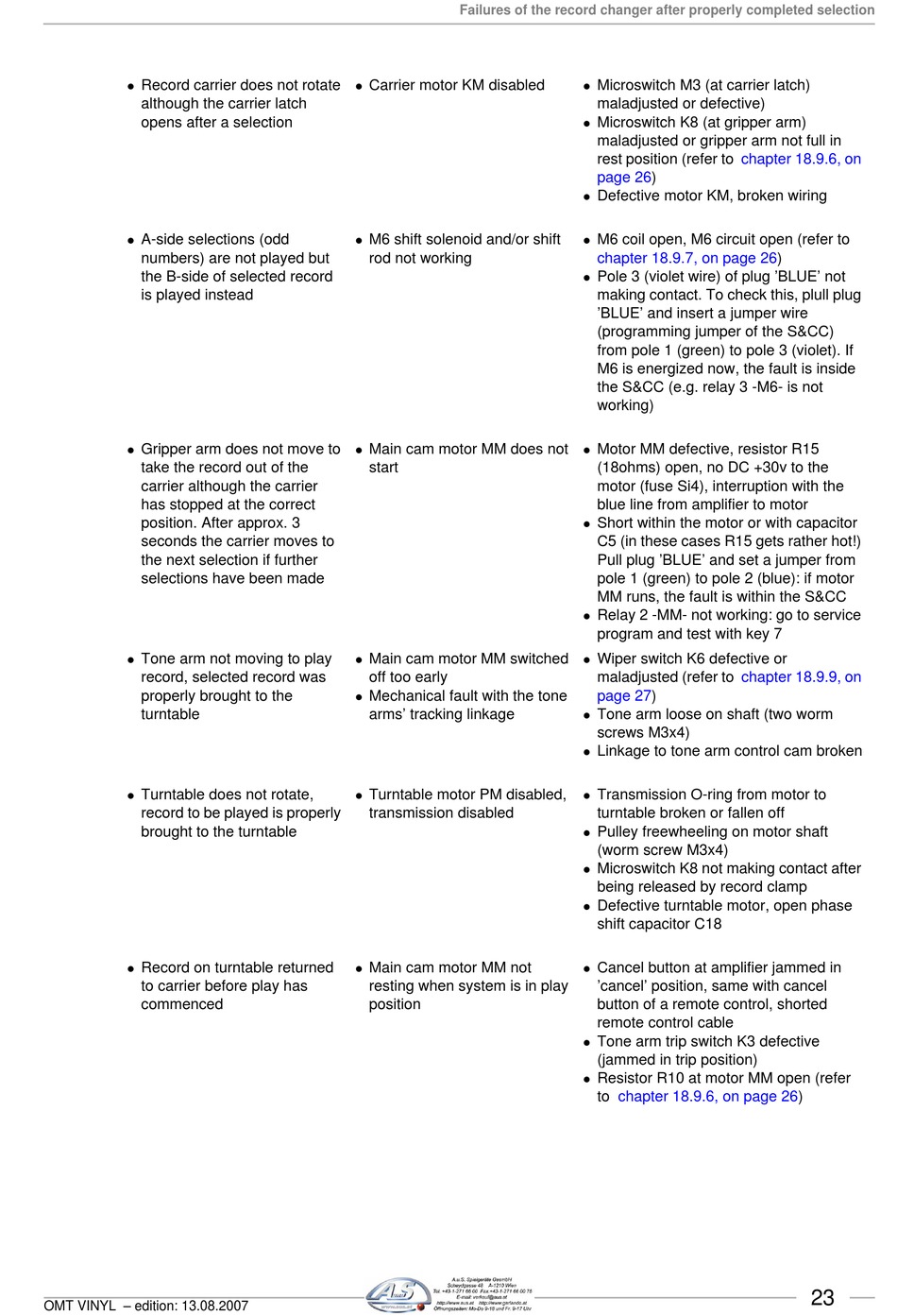

Failures of the record changer after properly completed selection
Carrier motor KM disabled
!
M6 shift solenoid and/or shift
!
rod not working
Main cam motor MM does not
!
start
Main cam motor MM switched
!
off too early
Mechanical fault with the tone
!
arms' tracking linkage
Turntable motor PM disabled,
!
transmission disabled
Main cam motor MM not
!
resting when system is in play
position
Microswitch M3 (at carrier latch)
!
maladjusted or defective)
Microswitch K8 (at gripper arm)
!
maladjusted or gripper arm not full in
rest position (refer to chapter 18.9.6, on
page 26)
Defective motor KM, broken wiring
!
M6 coil open, M6 circuit open (refer to
!
chapter 18.9.7, on page
Pole 3 (violet wire) of plug 'BLUE' not
!
making contact. To check this, plull plug
'BLUE' and insert a jumper wire
(programming jumper of the S&CC)
from pole 1 (green) to pole 3 (violet). If
M6 is energized now, the fault is inside
the S&CC (e.g. relay 3 -M6- is not
working)
Motor MM defective, resistor R15
!
(18ohms) open, no DC +30v to the
motor (fuse Si4), interruption with the
blue line from amplifier to motor
Short within the motor or with capacitor
!
C5 (in these cases R15 gets rather hot!)
Pull plug 'BLUE' and set a jumper from
pole 1 (green) to pole 2 (blue): if motor
MM runs, the fault is within the S&CC
Relay 2 -MM- not working: go to service
!
program and test with key 7
Wiper switch K6 defective or
!
maladjusted (refer to chapter 18.9.9, on
page 27)
Tone arm loose on shaft (two worm
!
screws M3x4)
Linkage to tone arm control cam broken
!
Transmission O-ring from motor to
!
turntable broken or fallen off
Pulley freewheeling on motor shaft
!
(worm screw M3x4)
Microswitch K8 not making contact after
!
being released by record clamp
Defective turntable motor, open phase
!
shift capacitor C18
Cancel button at amplifier jammed in
!
'cancel' position, same with cancel
button of a remote control, shorted
remote control cable
Tone arm trip switch K3 defective
!
(jammed in trip position)
Resistor R10 at motor MM open (refer
!
to chapter 18.9.6, on page
26)
26)
