18.2

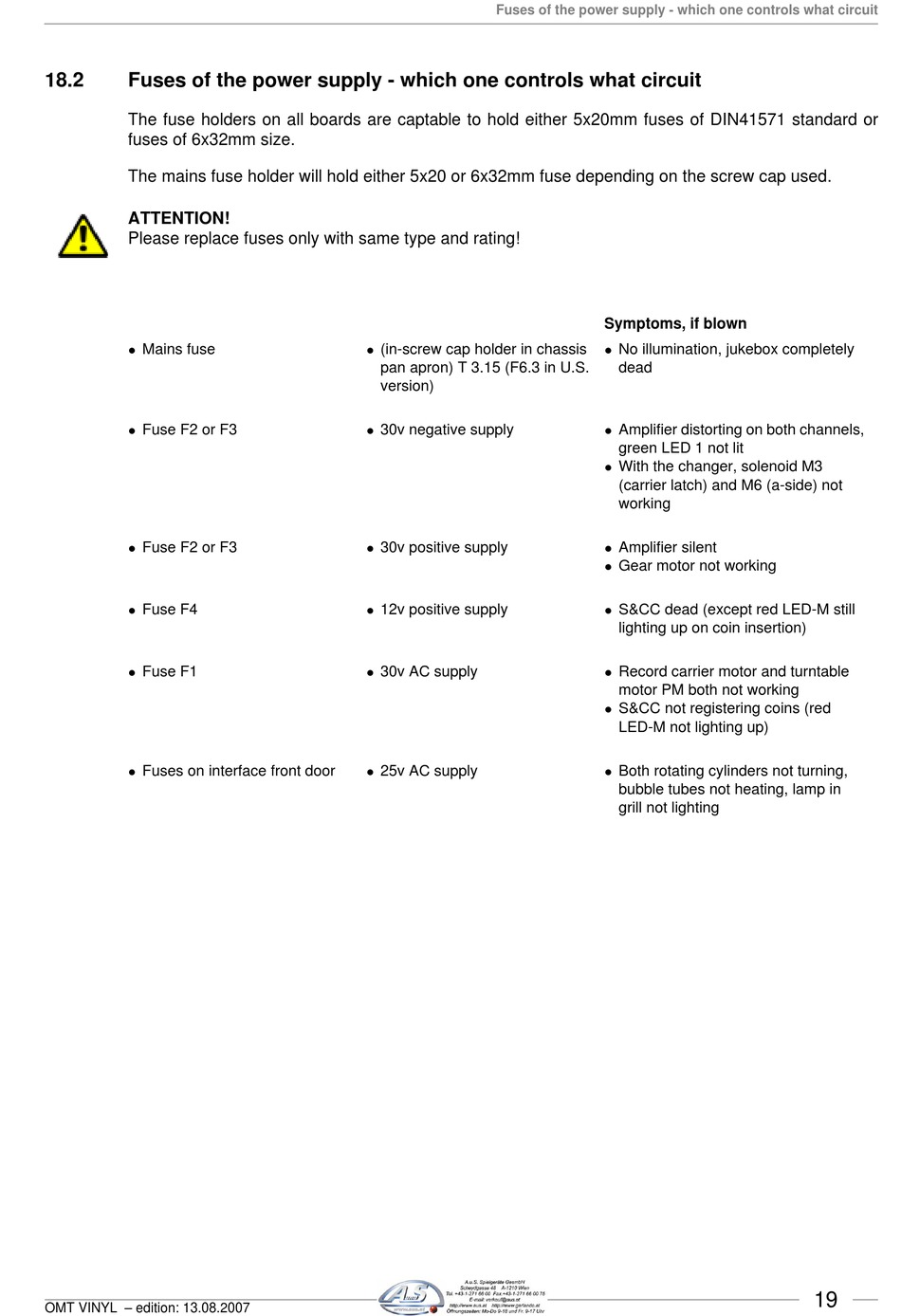

Fuses of the power supply - which one controls what circuit

The fuse holders on all boards are captable to hold either 5x20mm fuses of DIN41571 standard or
fuses of 6x32mm size.
The mains fuse holder will hold either 5x20 or 6x32mm fuse depending on the screw cap used.
ATTENTION!
Please replace fuses only with same type and rating!
Mains fuse
!
Fuse F2 or F3
!
Fuse F2 or F3
!
Fuse F4
!
Fuse F1
!
Fuses on interface front door
!
OMT VINYL – edition: 13.08.2007
Fuses of the power supply - which one controls what circuit
(in-screw cap holder in chassis
!
pan apron) T 3.15 (F6.3 in U.S.
version)
30v negative supply
!
30v positive supply
!
12v positive supply
!
30v AC supply
!
25v AC supply
!
Symptoms, if blown
No illumination, jukebox completely
!
dead
Amplifier distorting on both channels,
!
green LED 1 not lit
With the changer, solenoid M3
!
(carrier latch) and M6 (a-side) not
working
Amplifier silent
!
Gear motor not working
!
S&CC dead (except red LED-M still
!
lighting up on coin insertion)
Record carrier motor and turntable
!
motor PM both not working
S&CC not registering coins (red
!
LED-M not lighting up)
Both rotating cylinders not turning,
!
bubble tubes not heating, lamp in
grill not lighting
