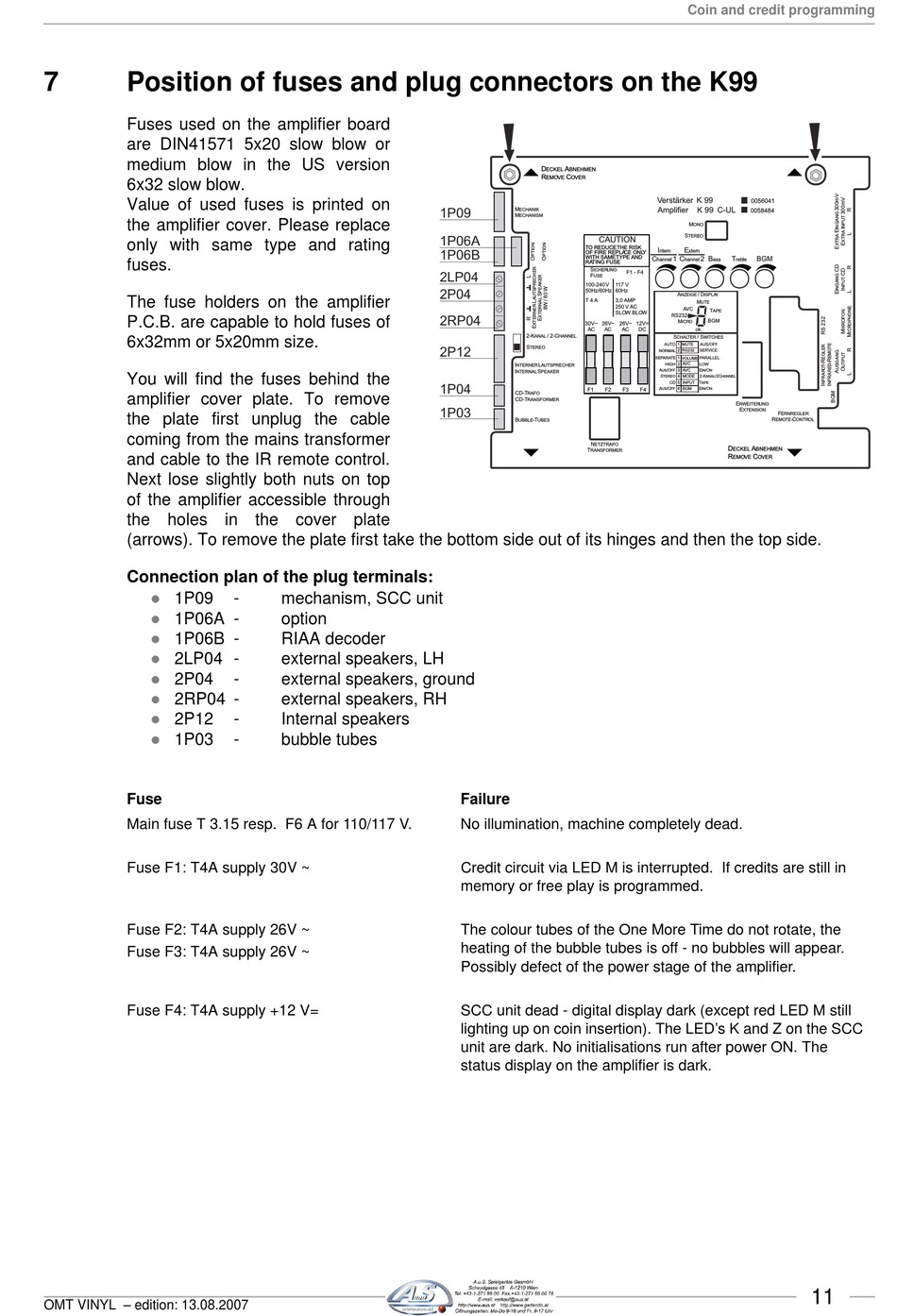

Position of fuses and plug connectors on the K99

Fuses used on the amplifier board
are DIN41571 5x20 slow blow or
medium blow in the US version
6x32 slow blow.
Value of used fuses is printed on
the amplifier cover. Please replace
only with same type and rating
fuses.
The fuse holders on the amplifier
P.C.B. are capable to hold fuses of
6x32mm or 5x20mm size.
You will find the fuses behind the
amplifier cover plate. To remove
the plate first unplug the cable
coming from the mains transformer
and cable to the IR remote control.
Next lose slightly both nuts on top
of the amplifier accessible through
the holes in the cover plate
(arrows). To remove the plate first take the bottom side out of its hinges and then the top side.
Connection plan of the plug terminals:
! 1P09
! 1P06A -
! 1P06B -
! 2LP04 -
! 2P04
! 2RP04 -
! 2P12
! 1P03
Fuse
Main fuse T 3.15 resp. F6 A for 110/117 V.
Fuse F1: T4A supply 30V ~
Fuse F2: T4A supply 26V ~
Fuse F3: T4A supply 26V ~
Fuse F4: T4A supply +12 V=
OMT VINYL – edition: 13.08.2007
- mechanism, SCC unit
option
RIAA decoder
external speakers, LH
- external speakers, ground
external speakers, RH
- Internal speakers
- bubble tubes
D A
ECKEL BNEHMEN
R C
EMOVE OVER
M
1P09 ECHANIK
M
ECHANISM
1P06A
CAUTION
TO REDUCETHE RISK
1P06B OF FIRE REPLA CE ONL Y
WITH SAMETYPE AND
RATING FUSE
S
ICHERUNG
2LP04
F
USE
100-240 V
50Hz/60Hz
2P04
T 4 A
2RP04
30V~ 26V~
AC AC
2-K / 2-C
ANAL HANNEL
S
TEREO
2P12
I L
NTERNER AUTSPRECHER
I NTERNAL PEAKER S
1P04
F1 F2
CD-T RAFO
CD-T
RANSFORMER
1P03
B -T
UBBLE UBES
N ETZTRAFO
T
RANSFORMER
Failure
No illumination, machine completely dead.
Credit circuit via LED M is interrupted. If credits are still in
memory or free play is programmed.
The colour tubes of the One More Time do not rotate, the
heating of the bubble tubes is off - no bubbles will appear.
Possibly defect of the power stage of the amplifier.
SCC unit dead - digital display dark (except red LED M still
lighting up on coin insertion). The LED's K and Z on the SCC
unit are dark. No initialisations run after power ON. The
status display on the amplifier is dark.
Coin and credit programming
Verstärker K 99
0056041
Amplifier K 99 C-UL
0058484
M ONO
S
TEREO
I E
ntern xtern
C 1 C 2 B T BGM
hannel hannel ass reble
F1 - F4
117 V
60Hz
A / D
NZEIGE ISPLAY
3,0 AMP
M
UTE
250 V AC
AVC
T APE
SLOW BLOW
RS232
M ICRO BGM
26V~ 12V=
ok.
AC DC
S / S
CHALTER WITCHES
AUTO 1 MUTE AUS/OFF
2 RS232 SERVICE
NORMAL
SEPARATE 1 VOLUME PARALLEL
A VC
HIGH 2 LOW
A US /O FF 3 A VC E /O IN N
S MODE 2-K /2C
TEREO 4 ANAL HANNEL
CD 5 INPUT T APE
A /O 6 BGM E /O
F3 F4 US FF IN N
E
RWEITERUNG
E XTENSION
F
ERNREGLER
R EMOTE- ONTROL
D A
ECKEL BNEHMEN
R C
EMOVE OVER
C
