Replacing the Top Baffle

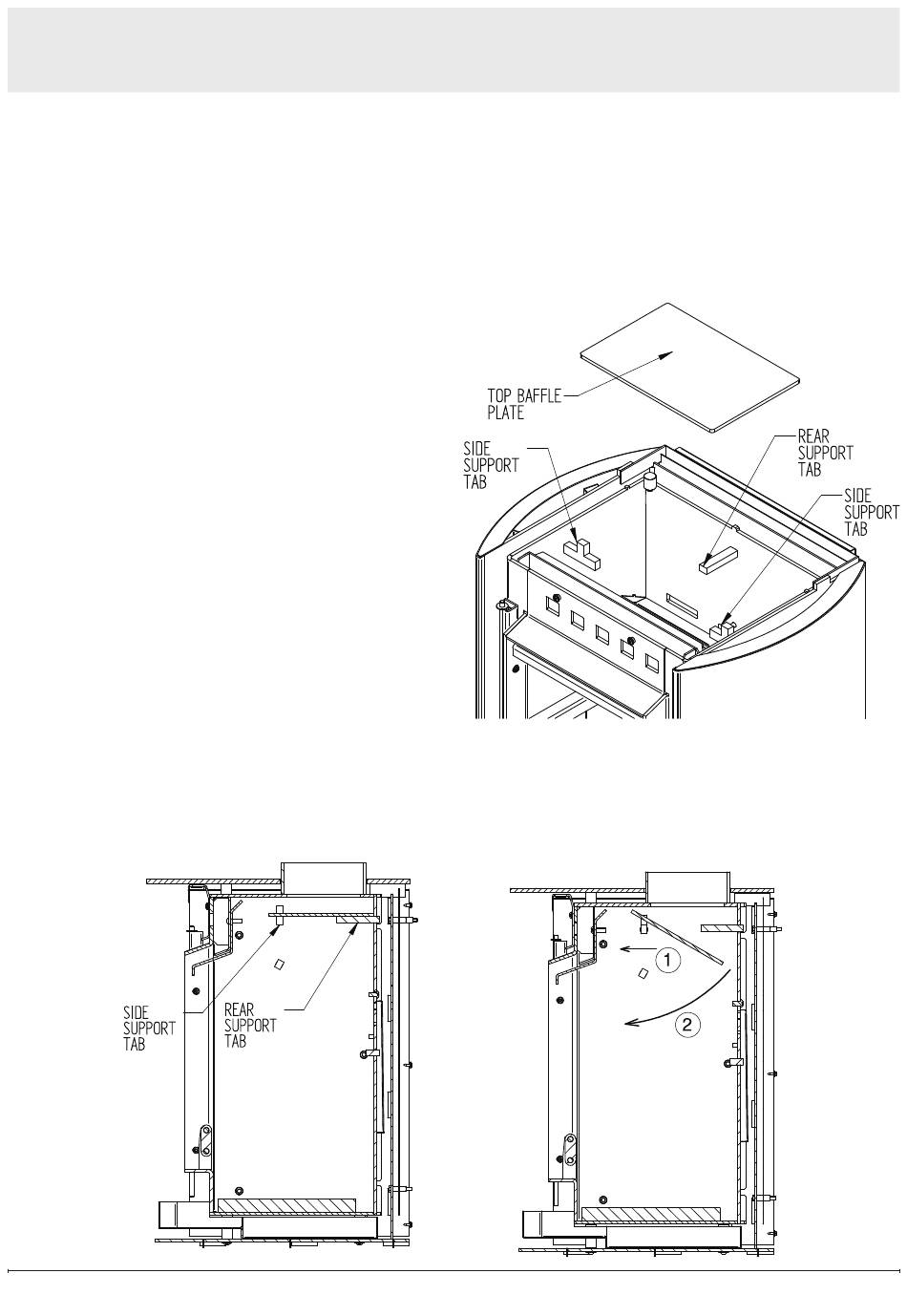

The top baffle plate can be accessed only after removing the main baffle. The top baffle plate is held
in place by two side "T" support tabs and one long rear support tab (Figure 19). The top baffle should
always be positioned all the way to the rear of the firebox. While manufacturing, this baffle is glued
to the rear of the firebox so that it remains in place during transportation or installation of the stove.
Remove the main baffle assemble before
proceeding.
1. Tap the bottom of the top baffle until it
comes loose.
2. Remove the top baffle from the firebox
(Figure 20):
① Slide the baffle towards the front of the
firebox until it slips from its rear support
tab.
② Once it slips, the baffle plate will swing
and drop down from its side supports.
!
NOTE: Compared to the main baffle, the top
baffle plate is smaller and more lightweight in
relation to the width of the firebox, so it will come
out more easily.
3. Use the above steps a and b in reverse order to
install the replacement top baffle. Make sure the
baffle plate is inserted into side "T" tabs from the
rear first.
Figure 20
26
Figure 19
