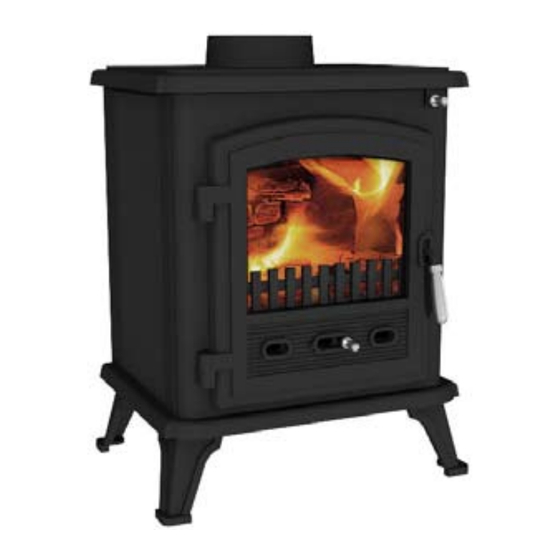

Summary of Contents for Dimplex Westcott 5kW Stove

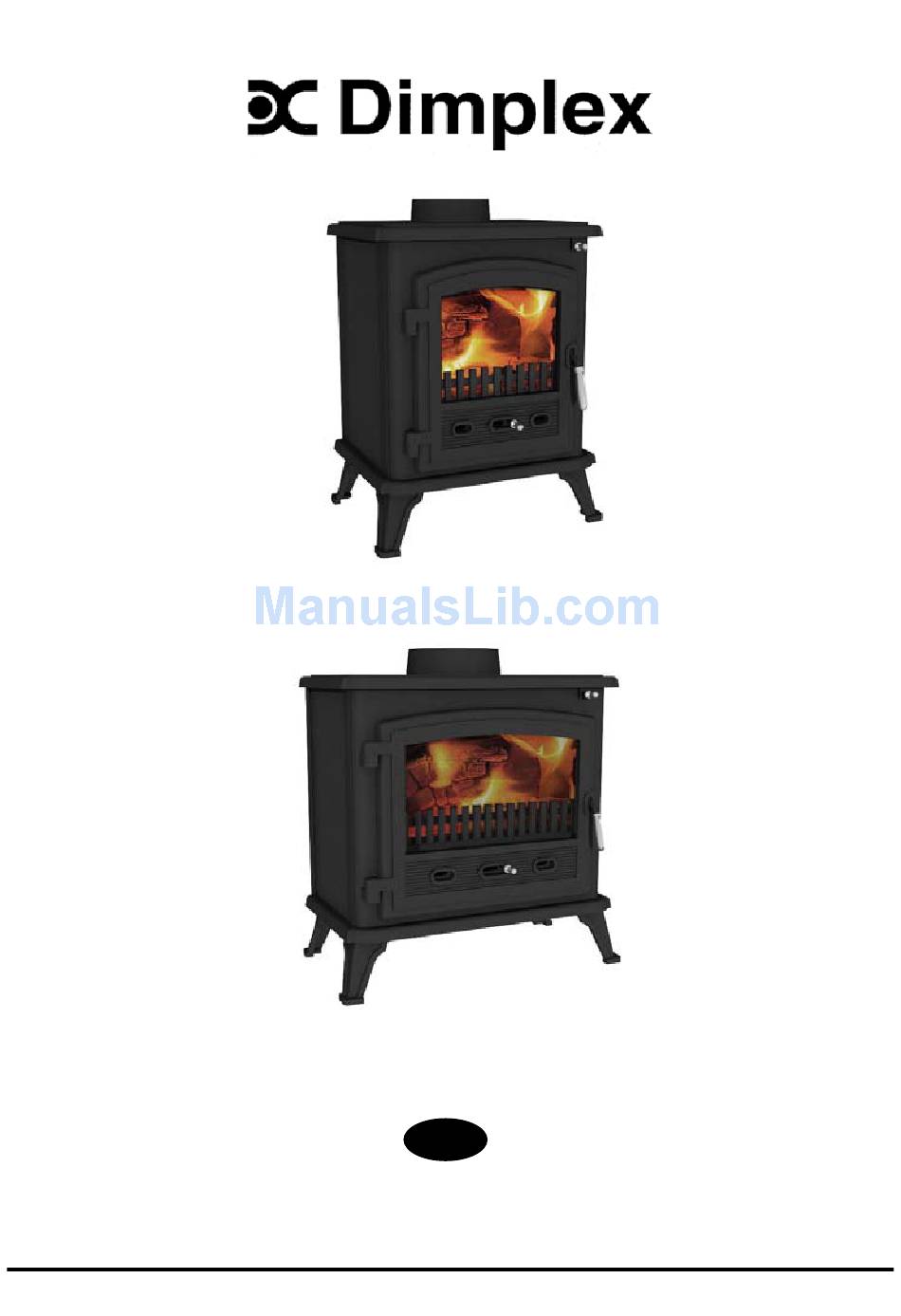

  • Page 1 Westcott 5kW Stove Westcott 8kW Stove 08/51118/3 - Issue 3 The product complies with the European Safety Standards EN13240 for Room heaters fired by solid fuel.
  • Page 2 L (Dia) Table 1 - Dimensions Westcott 5kW Westcott 8kW Note: All Dimensions in mm. Dimensions stated may be subject to a slight ± variation. ( 25.4mm = 1”) Table 2. - Technical Specification Westcott 5kW Westcott 8kW Wood Nominal heat output Solid Fuel (Ancit) Wood 79.7...
  • Page 3 Solid, non-combustible material e.g. masonary or concrete See Table 3 CONSTRUCTIONAL HEARTH NON COMBUSTIBLE 125mm THICK MINIMUM 150mm 125mm Table 3 Position of Hearth & Appliance In Relation to walls Wall Dimensions Hearth distance from wall ‘X’ Appliance distance from wall Min Wall Thickness ‘T’...
  • Page 4 CLOSURE SEAL PLATE...
  • Page 5: Important Safety Advice

    - 1 - Wescott 5kW & 8kW IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE Assembly of the stove Important Safety Advice To make the product easier for handling on installation, remove Please read these instructions carefully before installing the baffle plate, side bricks, back brick and door.
  • Page 6 - 2 - Any remedial work to the chimney flue should be carried out by a Existing Fireplace suitably Qualified Engineer. A flue draught of minimum 12 Pascal An existing fireplace opening can be bricked up or sealed with a is required for satisfactory appliance performance.
  • Page 7: Safety Notes For Your Guidance

    - 3 - Operating Instructions Notes on Solid Fuel burning (Other than Wood) Always de-ash the grate before refuelling and do not let the ash Warning: The door and operating handles become hot when build up to the underside of the grate bars. Solid fuel produces the stove is in use.
  • Page 8: General Maintenance

    Troubleshooting guard. • Only genuine Dimplex spare parts should be used. Parts that 1. Poor heat output may need occasional replacement are: firebricks, ashpan, fire a. Stove too small for room: Seek advice from a Qualified Heating grate, log guard.
  • Page 9 WESTCOTT 5kW WESTCOTT 5kW STOVE - SPARE PARTS Item Description Part No Door MF09015 Grate Accessory Pack (incl Grate Outer, Grate inner, Con Rod) MF09016 Adjustable Grate Plate MF09017 Front Bar (log bar) MF09018 Air Wash Deflector Plate MF09019 Baffle Plate...
  • Page 10 WESTCOTT 8kW WESTCOTT 8kW STOVE - SPARE PARTS Item Description Part No Door MF09025 Grate Accessory Pack (incl Grate Outer, Grate inner LH & RH, Connector, Con Rod) MF09026 Adjustable Grate Plate MF09027 Front Bar (log bar) MF09028 Air Wash Deflector Plate MF09029 Baffle Plate MF09030...
  • Page 12 TEL: 0845 600 5111 DIMPLEX FAX: 01489 773050 MILLBROOK HOUSE WEBSITE: www.dimplex.co.uk GRANGE DRIVE HEDGE END Republic of Ireland Tel: 01 842 4833 SOUTHAMPTON SO30 2DF [c]A Division of GDC Group Ltd. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of...
