Installation

Network deployment

Setup the Network Camera over the Internet
This section explains how to configure the Network Camera to Internet connection.

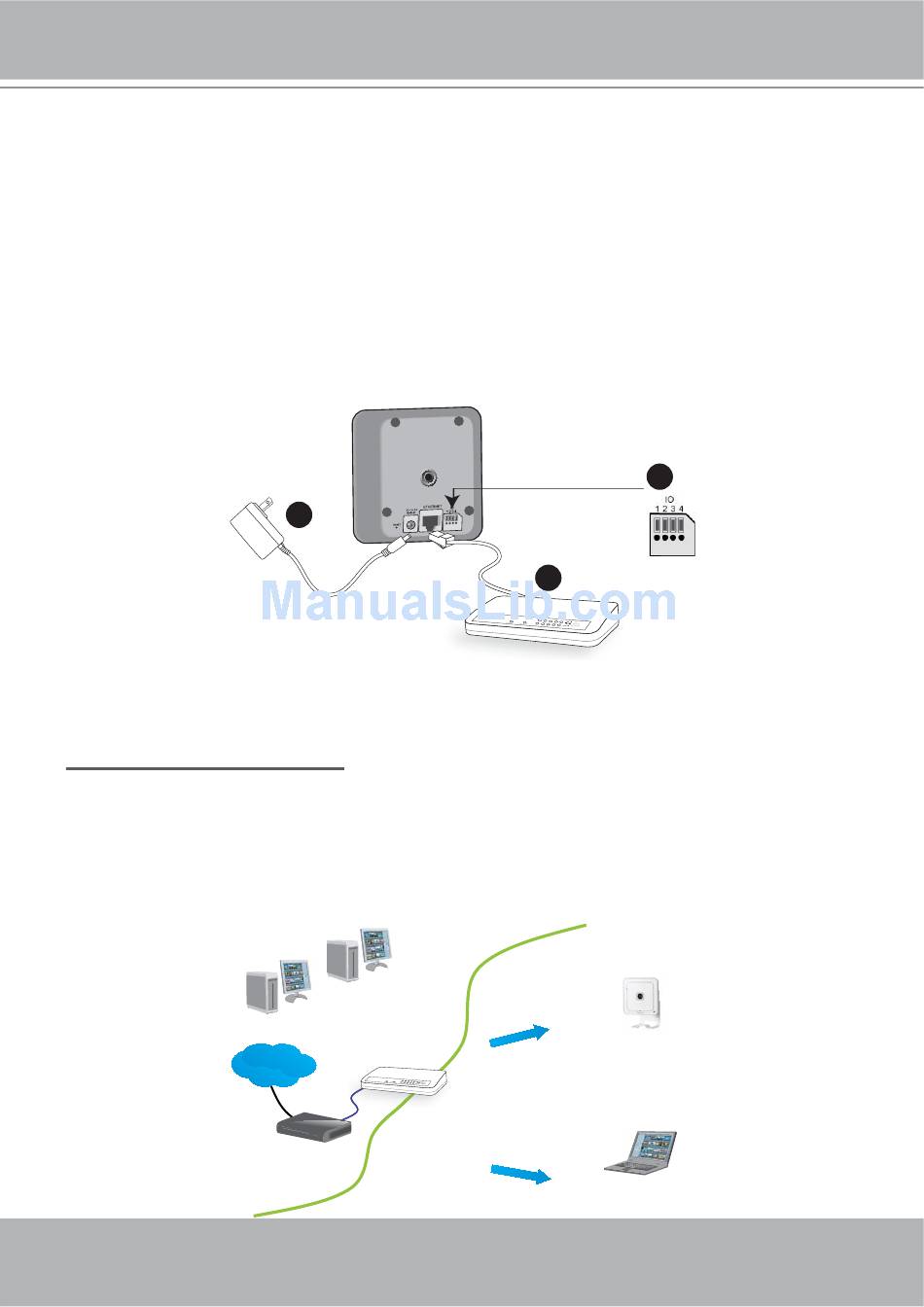

1. If you have external devices such as sensors and alarms, make connection from general I/O
terminal block.
2. Connect the camera to a switch via Ethernet cable. Use Catagory 5 Cross Cable when
Network Camera is directly connected to PC.
3. Connect the supplied power cable from the Network Camera to a power outlet.
There are several ways to setup the Network Camera over the Internet. The first way is to setup
the Network Camera behind a router. The second way is to utilize a static IP. The third way is to
use PPPoE.
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.
1. Connect your Network Camera behind a router, the Internet environment is illustrated as
below. About how to get your IP address, please refer to Software installation on page 9 for
details.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
3
WAN (Wide Area Network ) WAN (Wide Area Network )
Router IP address : from ISP P Router IP address : from ISP
Internet
LAN (Local Area Ne LAN (Local Area Network)
Router IP address : Router IP address : 192.168.0.1
Cable or DSL Modem
1
1: Power
2: Digital output
3: Digital input
4: Ground
2
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
