Motion detection

This section explains how to configure the Network Camera to enable motion detection. A total
of three motion detection windows can be configured.

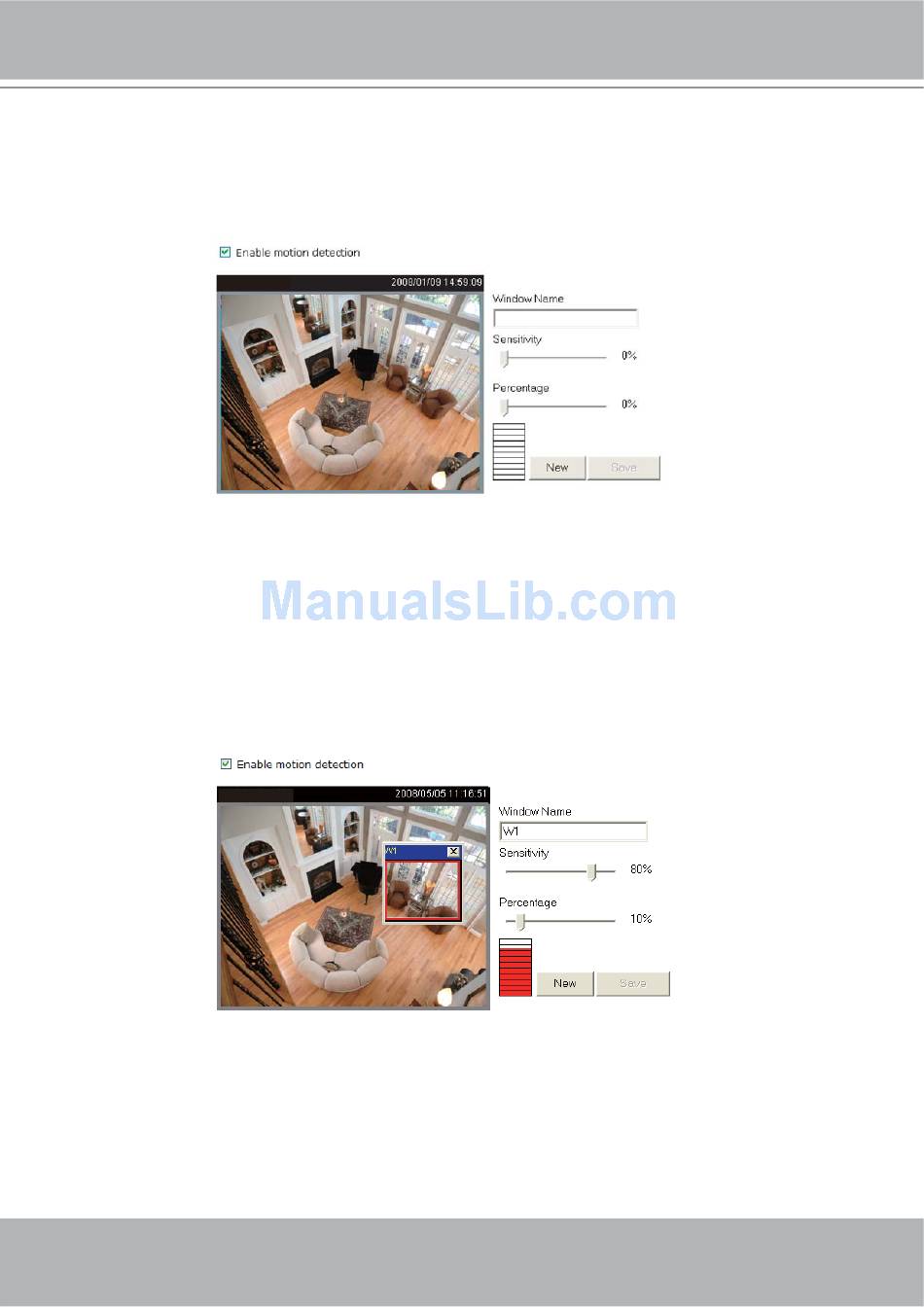

IP7133(TCP-AV)
To enable motion detection, follow the steps below:
1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a descriptive name for the motion detection window.
■ To move and resize the window, drag-drop the window.
■ To delete window, click X at top right of the window.
3. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the
Sensitivity and Percentage slider bar.
4. Click Save to take effect.
5. Select Enable motion detection to enable this function.
For example:
IP7133(TCP-AV)
The Percentage Indicator will rise or fall depending on the image variation. When motions are
detected by the Network Camera and are judged to exceed the defined threshold, a red bar
rises. Meanwhile, the motion detection window will be outlined in red. Photos or videos can
be captured instantly and configured to send to the remote server (Email, FTP) by utilizing
this feature as a trigger source. For more information on how to plot an event, please refer to
Application on page 43.
