IP7133/IP7134

Privacy Button

IP Sur veillance

Table of Contents

Need help?

Do you have a question about the IP7133 (WIRED) and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivotek IP7133 (WIRED)

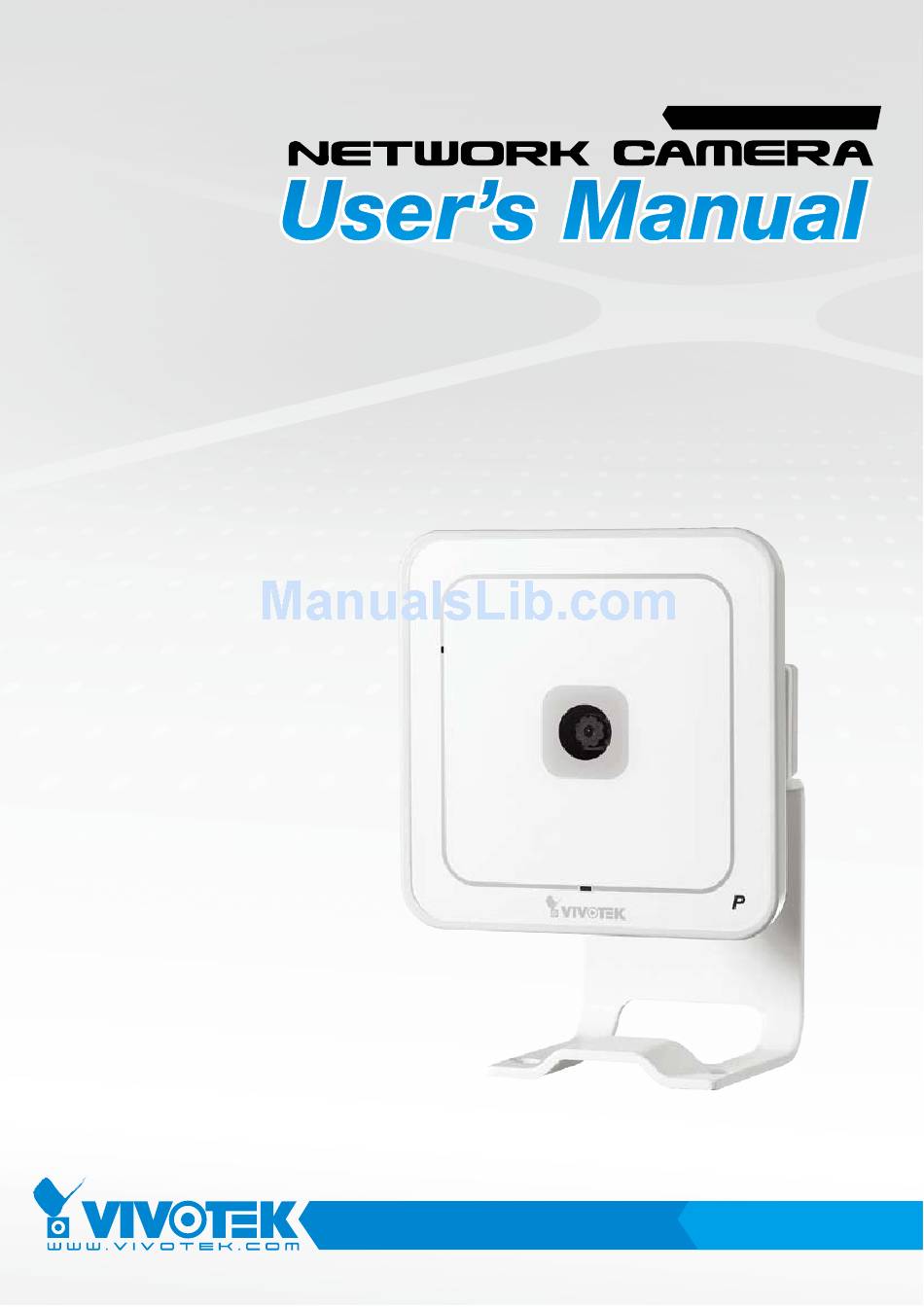

Page 1 IP7133/IP7134 Privacy Button IP Sur veillance...
Page 2: Table Of Contents
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Table of Contents Overview3 Read before use ��3 Package contents ��3 Physical description ��4 Installation 7 Network deployment ��7 Software installation ��9 Accessing the Network Camera 10 Using web browsers ��10 Using RTSP players ��12...
Page 3: Overview3
This considerate design avoids the feeling of being monitored all day long� With the delicate design and versatile functions, VIVOTEK IP7133/IP7134 is definitely the best choice for the fundamental establishment of home security�...
Page 4: Physical Description
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Physical description Front panel Built-in Microphone Lens Status LED Connectors Power cord socket Recessed reset button General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input / output devices.
Page 5: Status Led
Solid red Solid blue Blinking red Blinking blue Solid red Blinking green Blinking red Blinking green and red OFF VIVOTEK - A Leading Provider of Multimedia Communication Solutions PIN 1 Power+5V PIN 2 Digital output PIN 3 Digital input PIN 4...
Page 6 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Hardware Reset ETHERNET 1 2 3 4 RESET Reset button Status LED There is a reset button on the back cover of the Network Camera� It is used to reboot the Network Camera or restore the Network Camera to factory default�...
Page 7: Installation 7
About how to get your IP address, please refer to Software installation on page 9 for details� Internet Cable or DSL Modem VIVOTEK - A Leading Provider of Multimedia Communication Solutions router� The second way is to utilize a static WAN (Wide Area Network )
Page 8 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192�168�0�3, please forward the following ports for the Network Camera on the router� ■ HTTP port ■...
Page 9: Software Installation
After your network environment is analyzed, please click Next to continue the program� 3� The program will search all VIVOTEK devices on the same LAN� 4� After searching, the main installer window will pop up� Click on the MAC and model name which match the product label on your device to connect to the Network Camera�...
Page 10: Accessing The Network Camera 10
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Accessing the Network Camera This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software� Using web browsers 1� Launch your web browser (ex� Microsoft 2.
Page 11 ► If you see a dialog box indicating that your security settings prohibit running ActiveX Controls, please enable your ActiveX 1. Choose Tools > Internet Options > Security > Custom Level. 2. Look for Download signed ActiveX VIVOTEK - A Leading Provider of Multimedia Communication Solutions ® Controls for your browser� ®...
Page 12: Using Rtsp Players
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using RTSP players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player...
Page 13: Using 3Gpp-Compatible Mobile Devices
Type the URL commands in the player� The format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP Streaming access name for stream1 or stream2>. For example: rtsp://192.168.5.129:554/live.sdp VIVOTEK - A Leading Provider of Multimedia Communication Solutions MPEG-4 176 x 144 5 fps 40kbps 12.2kbps...
Page 14: Using Vivotek Recording Software
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using VIVOTEK recording software The product software CD also contains VIVOTEK’s recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software, then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the...
Page 15: Main Page 15
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Main Page This chapter explains the layout of the main page� It is composed of the following four sections: VIVOTEK INC. Logo, Menu, Host Name, and Live Video Window. http://192.168.5.129/index.html Host name Logo of VIVOTEK INC.
Page 16 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Live Video Window The following window is displayed when the video mode is set to MPEG-4: Video title Title and time Video title: The video title can be configured. For more information, please refer to Video settings on page 36�...
Page 17 Stop MP4 recording button to end recording� When you exit the web browser, video recording stops accordingly� To specify the storage destination and the file name, please refer to MP4 Saving Options on page 19 for details� VIVOTEK - A Leading Provider of Multimedia Communication Solutions IP7133 IP7133 10:14:40 2008/09/15...
Page 18: Client Settings 18
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Client Settings This chapter explains how to select the streaming source, transmission mode and saving options at local computer� It is composed of the following four sections: Stream Options, MPEG- 4 Media Options, MPEG-4 Protocol Options and MP4 Saving Options� When completed with the settings on this page, click Save on the page bottom to enable the settings�...
Page 19: Mp4 Saving Options
File Name Prefix: Enter the text that will be put in front of the video file name. Add date and time suffix to the file name: Select this option to add date and time to the file name suffix. VIVOTEK - A Leading Provider of Multimedia Communication Solutions CLIP_20080108-180853 Date and time sufﬁx...
Page 20: Configuration 20
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Configuration Only Administrators can access the system configuration page. Each category in the left menu will be explained in the following sections� System This section explains how to configure the basic settings for the Network Camera, such as the host name and system time�...
Page 21 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Time zone: According to your local time zone, select one from the drop-down list� Keep current date and time: Select this option to reserve the current date and time of the Network Camera�...
Page 22: Security
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security This section explains how to enable password protection and create multiple accounts� It is composed of the following three columns: Root Password, Add User and Manage User� Root Password The administrator account “root” is permanent and can not be deleted� Please note that if you want to add more accounts, you must apply a password for the “root”...
Page 23: Network
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network This section explains how to configure wired network connection for the Network Camera. It is composed of the following five columns: Network Type, HTTP, Two way audio, FTP and RTSP Streaming�...
Page 24 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Enable UPnP presentation: Select this option to enable UPnP so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras will be listed in My Network Places� Currently, UPnP utilize this feature, please make sure the UPnP Network Camera (192.168.5.132)
Page 25 3� In the Windows Components Wizard dialog box, select Networking Services and then click Details� 4� In the Networking Services dialog box, select Universal Plug and Play and then click OK� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 25...
Page 26 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 5� Click Next in the following window� 6� Click Finish� UPnP is enabled� ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without bothersome network configuration�...
Page 27 Network Camera. The FTP server allows the Network Camera to utilize VIVOTEK Installation Wizard 2 to upgrade firmware. By default, the FTP port is set to 21. Also, it can be assigned with another port number between 1025 and 65535�...
Page 28 VIVOTEK - A Leading Provider of Multimedia Communication Solutions RTSP Streaming Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic and digest� If basic authentication is selected, the password is sent in plain text format; there can be potential risks of being intercepted�...
Page 29 ► To utilize the RTSP streaming authentication, make sure that your have set a password for the Network Camera first; please refer to Security on page 22 for details� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 29...
Page 30: Wireless Lan (Ip7134 Only)
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Wireless LAN (IP7134 only) SSID (Service Set Identifier): It is a name that identifies a wireless network. Access Points and wireless clients attempting to connect to a specific WLAN (Wireless Local Area Network) must use the same SSID�...
Page 31 128 bites key length: 26 Hex digits or 13 characters. NOTE ► When 22(“), 3C(<) or 3E(>) are input in network key, the key format can’t be changed to ASCII format. VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 31...
Page 32 ► After wireless configurations are completed, click Save and the camera will reboot. Wait for the live image is reloaded to your browser� For VIVOTEK 7000-series cameras, you have to unplug the power cable and Ethernet cable from the camera; then re-plug the power cable to the camera� The camera will switch to wireless mode�...
Page 33: Ddns
Provider: Select a DDNS provider of your choice from the Provider drop-down list� VIVOTEK offers safe100, a free dynamic domain name service to VIVOTEK customers� It is recommended that you register with the safe100 to access the Network Camera from the Internet� Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), TZO.com, DHS.org,...
Page 34 4� Select Enable DDNS and then click Save to enable the settings� ■ CustomSafe100 VIVOTEK offers documents to establish CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
Page 35: Access List
Delete allowed list / Delete denied list 1� In the Delete allowed list or Delete denied list, select a list from the drop-down list� 2� Click Delete to enable the settings� VIVOTEK - A Leading Provider of Multimedia Communication Solutions Denied Allowed...
Page 36: Audio And Video
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Audio and video This section explains how to cofigure audio and video performances of the Network Camera. It is composed of the following two columns: Video settings and Audio settings� Video settings Video title: Enter a name that will be displayed on the title bar of the live video�...
Page 37 ■ Contrast: Adjust the image contrast level, which ranges from -5 to +5. The default value is set to 0. ■ Sharpness: Adjust the image sharpness level, which ranges from -3 to +3. The default value is set to +3. VIVOTEK - A Leading Provider of Multimedia Communication Solutions IP7133(TCP-AV)
Page 38 VIVOTEK - A Leading Provider of Multimedia Communication Solutions White balance: Adjust the value for best color temperature� ■ Auto The Network Camera automatically adjusts the color temperature of light in response to different light sources� The white balance setting defaults to Auto and works well in most situations�...
Page 39 Select the video size� Note that a larger frame size takes up more bandwidth� The frame sizes are selectable in the following resolutions: 176 x 144, 352 x 240, and 640 x 480� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 39...
Page 40: Audio Settings
VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Maximum frame rate This limits the maximal refresh frame rate per second� Set the frame rate higher for a smoother video quality� If the power line frequency is set to 50Hz, the frame rates are selectable at the following rates: 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps and 25fps.
Page 41: Motion Detection
(Email, FTP) by utilizing this feature as a trigger source� For more information on how to plot an event, please refer to Application on page 43� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 41...
Page 42 VIVOTEK - A Leading Provider of Multimedia Communication Solutions A green bar indicates that even though motions are detected, the event will not be triggered because the image variations are still falling under the defined threshold. NOTE ► How does motion detection work? There are two parameters for setting the motion detection: Sensitivity and Percentage�...
Page 43: Application
In Media Settings column, click Add to open the media setting page� On this page, you can specify what kind of media to send when a trigger is activated. A total of five media settings can be configured. VIVOTEK - A Leading Provider of Multimedia Communication Solutions Event Trigger ex. Motion detection,...
Page 44 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Media name: Enter a descriptive name for the media setting� Media Type: There are three choices of media types available: Snapshot, Video Clip, and System log� Snapshot: Select to send snapshots when a trigger is activated�...
Page 45: Server Settings
In the Server column, click Add to open the server setting page� On this page, you can specify where the notification messages will be send when a trigger is activated. A total of five server settings can be configured. VIVOTEK - A Leading Provider of Multimedia Communication Solutions Video20080104_100341 File name preﬁx Date and time sufﬁx...
Page 46 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Server name: Enter a descriptive name for the server setting� Server Type: There are four choices of server types available: Email, FTP, and HTTP. Email: Select to send the media via Email when a trigger is activated�...
Page 47 VIVOTEK - A Leading Provider of Multimedia Communication Solutions HTTP: Select to send the media to a HTTP server when a trigger is activated. ■ URL: Enter the URL of the HTTP server. ■ User name: Enter the user name.
Page 48 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Event Settings In the Event column, click Add to open the event setting page� On this page, you can arrange the three elements -- Trigger, Schedule and Action to plot an event� A total of three event settings can be configured.
Page 49 The new event name will appear in the event drop-down list on the application page� To remove an event setting from the list, select an event name from the drop-down list and then click Delete� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 49...
Page 50: System Log
VIVOTEK - A Leading Provider of Multimedia Communication Solutions System log This section explains how to configure the Network Camera to send system log to remote server as a backup� It is composed of the following two columns: Remote Log and Current Log�...
Page 51: View Parameters
VIVOTEK - A Leading Provider of Multimedia Communication Solutions View parameters The View parameters page lists the entire system’s parameters in alphabetical order� If you need technical assistance, please provide the information listed On this page� IP7133 User's Manual - 51...
Page 52: Maintenance
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc� Reboot This feature allows you to turn off and then turn on the Network Camera� It takes about one ~ two minutes to complete the process�...
Page 53 In the example below, the DST begins each year at 2:00 a�m� on the second Sunday in March and ends at 2:00 a.m. on the first Sunday in November. VIVOTEK - A Leading Provider of Multimedia Communication Solutions ® Notepad and locate your time zone; set the starting time and...
Page 54 Note that do not power off the Network Camera during the upgrade� Follow the steps below to upgrade firmware: 1. Download a new firmware file from VIVOTEK website. The file is in pkg file format. 2. Click Browse… and specify the firmware file.
Page 55 Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed. It will takes about 1 - 5 minutes. Wrong PKG file format Unpack fail VIVOTEK - A Leading Provider of Multimedia Communication Solutions IP7133 User's Manual - 55...
Page 56: Url Commands Of The Network Camera
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Appendix URL Commands of the Network Camera Overview For some customers who already have their own web site or web control application, Network Camera/ Video server can be easily integrated through convenient URLs. This section specifies the external HTTP based application programming interface.
Page 57: General Cgi Url Syntax And Parameters
Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION Unprotected. 1. Can view, listen, talk to camera. 2. Can control DI/DO, PTZ of the camera. Operator access rights can modify most of the camera’s parameters except some privileges and network options.
Page 58 VIVOTEK - A Leading Provider of Multimedia Communication Solutions [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned.
Page 59: Set Server Parameter Values
(Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list...
Page 60: Available Parameters On The Server
VIVOTEK - A Leading Provider of Multimedia Communication Solutions <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n...
Page 61 <MMDDhhmmYYYY.ss> <domain name>, <ip address>, <blank> timezoneindex -489 ~ 529 VIVOTEK - A Leading Provider of Multimedia Communication Solutions – 1) SECURITY DESCRIPTION (get/set) Host name of server (Network Camera, Wireless Network Camera, Video Server, Wireless Video Server).
Page 62 VIVOTEK - A Leading Provider of Multimedia Communication Solutions -281: GMT-07:00 Arizona -240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -160: GMT-04:00 Atlantic Time, Caracas, Canada, La Paz, Santiago...
Page 63 <mac address> firmwareversion string[40] language_i<0~(count-1)> string[16] VIVOTEK - A Leading Provider of Multimedia Communication Solutions Krasnoyarsk 320: GMT 08:00 Beijing, Chongging, Hong Kong, Kuala Lumpur, Singapore, Taipei 360: GMT 09:00 Osaka, Sapporo, Tokyo, Seoul, Yakutsk 380: GMT 09:30 Adelaide, Darwin...
Page 64 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: status NAME VALUE di_i<0~(ndi-1)> <boolean> do_i<0~(ndo-1)> <boolean> onlinenum_rtsp integer onlinenum_httppush integer Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE normalstate high, Group: do_i<0~(ndo-1)> (capability.ndo > 0) NAME VALUE normalstate open, grounded...
Page 65 VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION Network connection type. Stop related process before setting port value. 1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot.
Page 66 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Subgroup of network: rtsp NAME VALUE port 554, 1025 ~ 65535 authmode disable, basic, digest s0_accessname string[3b;42] s1_accessname string[32] s0_audiotrack <integer> s1_audiotrack <integer> Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast=1)
Page 67 HEX, ASCII keyselect 1 ~ 4 key1 password [32] key2 password [32] key3 password [32] VIVOTEK - A Leading Provider of Multimedia Communication Solutions SECURITY DESCRIPTION (get/set) PPPoE account user name. PPPoE account password. SECURITY DESCRIPTION (get/set) SSID for wireless lan settings.
Page 68 VIVOTEK - A Leading Provider of Multimedia Communication Solutions key4 password [32] domain ‘U’ for USA ‘C’ for Canada ‘E’ for Euro ‘S’ for Spain ‘F’ for France ‘I’ for Isrel ‘A’ for All algorithm AES, TKIP presharedkey password [63]...
Page 69 320x240, 640x480 3M CMOS => 176x144, 320x240, 640x480, 800x600, 1280x1024 VIVOTEK - A Leading Provider of Multimedia Communication Solutions SECURITY DESCRIPTION (get/set) 0 =>monochrome 1 => color Flip the image. Mirror the image. A 32-bit integer, each bit can be set separately as follows: Bit 0 =>...
Page 70 VIVOTEK - A Leading Provider of Multimedia Communication Solutions CCD => QCIF, 176x120, CIF, 352x240, 4CIF, 704x480 PAL => QCIF, 176x144, CIF, 352x288, 4CIF, 704x576 VS => QCIF, 176x120, 176x144, CIF, 352x240, 352x288, 4CIF, 704x480, 704x576 s<0~(m-1)>_mpeg4_intr 250, 500, 1000,...
Page 71 -5 ~ 5 sharpness <product dependent> VIVOTEK - A Leading Provider of Multimedia Communication Solutions Quality of JPEG video. 0 is the customized manual input setting. 1 = worst quality, 5 = best quality. Set maximum frame rate in fps (for JPEG).
Page 72 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: imagepreview_c<0~(n-1)> for n channel products NAME VALUE brightness <product dependent> saturation -5 ~ 5 contrast -5 ~ 5 sharpness <product dependent> videoin_whitebalance auto, manual videoin_restoreatwb 0, 1~ Group: imagepreview NAME...
Page 73 <boolean> upnpnatstatus Group: syslog NAME VALUE enableremotelog <boolean> VIVOTEK - A Leading Provider of Multimedia Communication Solutions SECURITY DESCRIPTION (get/set) Enable or disable the dynamic DNS. Safe100 => safe100.net DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom => dyndns.org (custom) TZO => tzo.com DHS =>...
Page 74 VIVOTEK - A Leading Provider of Multimedia Communication Solutions serverip <IP address> serverport 514, 1025~65535 level Group: privacymask_c<0~(n-1)> for n channel product NAME VALUE enable <boolean> win_i<0~4>_enable <boolean> win_i<0~4>_name string[14] win_i<0~4>_left 0 ~ 320/352 win_i<0~4>_top 0 ~ 240/288 win_i<0~4>_width 0 ~ 320/352 win_i<0~4>_height...
Page 75 <positive integer> tion protocol_rtp_multic <boolean> VIVOTEK - A Leading Provider of Multimedia Communication Solutions Number of audio outputs. Number of video inputs. Number of media stream per channels. Number of video settings per channel. Number of audio settings per channel.
Page 76 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ast_scalable protocol_rtp_multic <boolean> ast_backchannel protocol_rtp_tcp <boolean> protocol_rtp_http <boolean> protocol_spush_mjp <boolean> protocol_snmp <boolean> videoin_type 0, 1, 2 videoin_resolution <a list of available resolution separated by commas> videoin_codec <a list of available codec types separated by commas>...
Page 77 0, 1, 2 delay 1~999 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Indicate whether to support HTTP tunnel for UART transfer. Indicate transmission mode of the machine: TX = server, Rx = receiver box, Both = DVR.
Page 78 VIVOTEK - A Leading Provider of Multimedia Communication Solutions trigger boot, motion, seq, visignal, pir, recnotify, audioswitch, tampering, <integer> mdwin <integer> mdwin0 <integer> inter 1~999 weekday <integer> begintime hh:mm endtime hh:mm 78 - User's Manual Indicate the trigger condition: “boot” = System boot “di”= Digital input...
Page 79 Group: media_i<0~4> (media_freespace is used internally.) PARAMETER VALUE name string[40] VIVOTEK - A Leading Provider of Multimedia Communication Solutions Enable or disable trigger digital output. Duration of the digital output trigger in seconds. Enable or disable this server action. The default value is 0.
Page 80: Drive The Digital Output
VIVOTEK - A Leading Provider of Multimedia Communication Solutions type snapshot, systemlog, videoclip, recordmsg snapshot_source <integer> snapshot_prefix string[16] snapshot_datesuffix 0, 1 snapshot_preevent 0 ~ 7 snapshot_postevent 0 ~ 7 videoclip_source <integer> videoclip_prefix string[16] videoclip_preevent 0 ~ 9 videoclip_maxduration 1 ~ 10...
Page 81: Query Status Of The Digital Input
[di2=<state>]\r\n [di3=<state>]\r\n where <state> can be 0 or 1. Example: Query the status of digital input 1. VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION 0 – Inactive, normal state 1 – Active, triggered state Redirect to the page <return page> after the parameter is assigned.
Page 82: Query Status Of The Digital Output
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n Query Status of the Digital Output Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the digital output statuses will be returned.
Page 83: Capture Single Snapshot
Account Management Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION The channel number of the video source. The resolution of the image. The quality of the image. User's Manual - 83...
Page 84: System Logs
VIVOTEK - A Leading Provider of Multimedia Communication Solutions method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE method Delete edit username <name> userpass <value> privilege <value> viewer operator admin return <return page> System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi...
Page 85: Upgrade Firmware
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Upgrade Firmware Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated.
Page 86 VIVOTEK - A Leading Provider of Multimedia Communication Solutions PARAMETER(supported VALUE capability version) Model system.firmwareversion CapVersion MMmm, MM is major version from 00 ~ 99 mm is minor version from 00 ~ 99 ex: 0100 IP Filtering Note: This request requires Administrator access privileges.
Page 87 “m” is the stream number. For details on streaming protocol, please refer to the “control signaling” and “data format” documents. VIVOTEK - A Leading Provider of Multimedia Communication Solutions Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path.
Page 88: Technical Specifications
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technical Specifications ．IP7133 (Wired) Models ．IP7134 (WLAN) System ．CPU: VVTK-1000 SoC ．Flash: 4MB ．RAM: 32MB ．Embedded OS: Linux 2.4 ．Board lens, f = 4.09 mm, F2.0, Fixed, Lens focus range: 70 cm to infinity ．49.6°...
Page 89: Technology License Notice
VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES.
Page 90: Electromagnetic Compatibility (Emc)
France� Liability VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose�...
