Vivotek IP7138 User Manual

Vivotek IP7138 User Manual

Mega-pixel network camera
Hide thumbs Also See for IP7138:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Mega-Pixel
IP7138
IP Sur veillance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP7138 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek IP7138

Summary of Contents for Vivotek IP7138

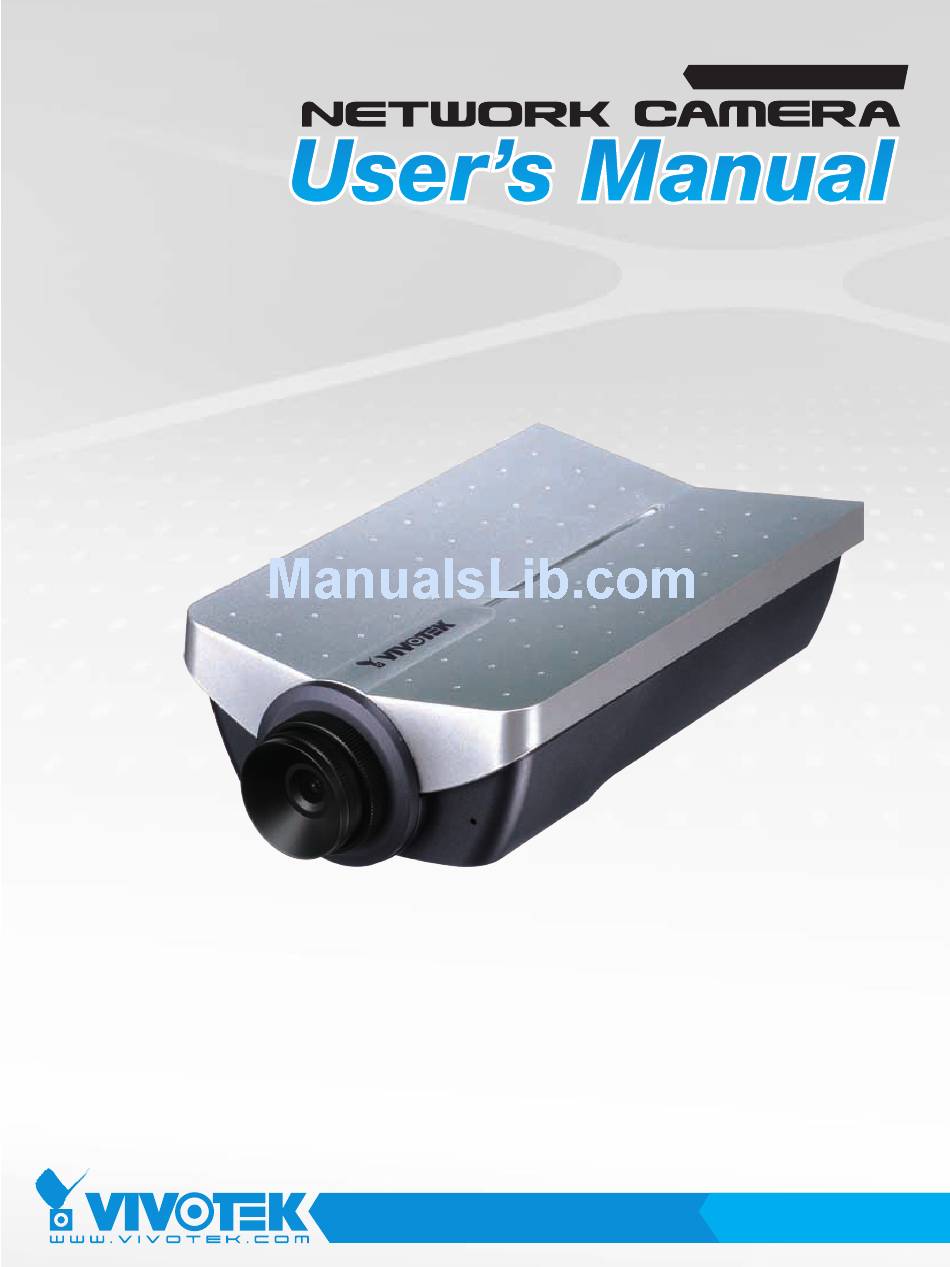

  • Page 1 Mega-Pixel IP7138 IP Sur veillance...
  • Page 2 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Product Name: Network Camera (IP7138) Release Date: 2008/03/05 Manual Revision: Web Site: www.vivotek.com Email: technical@vivotek.com sales@vivotek.com Made in Taiwan. © 2008 VIVOTEK INC. All rights reserved  - User's Manual...

  • Page 3: Before You Use This Product

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Before You Use This Product The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system.

  • Page 4: Table Of Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Table of Contents Table of Contents Before You Use This Product..............2 Before You Use This Product..............2 Package Contents ..................6 Package Contents ..................6 Installation .....................7 Installation .....................7 Hardware installation................7 Hardware installation................7 Software installation................8 Software installation................8...
  • Page 5 VIVOTEK - A Leading Provider of Multimedia Communication Solutions RTSP Streaming ................. 31 DDNS..................... 34 Access List ..................35 Audio and Video................36 Video Settings................36 Video orientation ................ 36 Audio settings ................37 Image Settings ................39 Privacy Mask................40 Motion detection ................
  • Page 6 VIVOTEK - A Leading Provider of Multimedia Communication Solutions System logs................91 Upgrade firmware ............... 92 IP filtering ................. 93 RTSP SDP .................. 94 D. Technical Spections ..............95 Specifications - 5 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532  - User's Manual...

  • Page 7: Package Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Package Contents IP7138 Software CD Power adapter Quick installation guide Camera stand Warranty card - 6 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 User's Manual - ...

  • Page 8: Installation

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Installation In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the Network Camera and grant user access to the camera.

  • Page 9: Software Installation

    To install in Ethernet VIVOTEK - A Leading Provider of Multimedia Communication Solutions Make sure the Ethernet is firmly connected to a switch hub. After attaching the Ethernet cable plug in the power adapter. If the LED turns out to blink green-color, go to next paragraph “Software installation”.

  • Page 10: Add Password To Prevent Unauthorized Access

    Once installation is complete, the Administrator should proceed to the next VIVOTEK - A Leading Provider of Multimedia Communication Solutions section "Initial access to the Network Camera" for necessary checks and configurations. Initial Access to the Network Camera Check Network Settings The Network Camera can be connected either before or immediately after software installation onto the Local Area Network.
  • Page 11 VIVOTEK - A Leading Provider of Multimedia Communication Solutions only option is to restore to the original factory default settings. How to Use A PC with Windows operating system can use the Internet Explorer to connect to the Network Camera. A plug-in will be installed into the IE when it is connected for the first time.

  • Page 12: Installing Plug-In

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Installing plug-in For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera when the Internet Explorer.

  • Page 13: Primary User's Capability

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Primary user’s capability Main Screen with Camera View The main page layout has two parts: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees.
  • Page 14 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The function in JPEG will be a little different when it is JPEG streaming. Only digital zoom and record button are supported. - 13 - www.vivotek.com Here is the layout in Firefoex when it is MPEG-4 streaming. It invokes Quick Time to stream the live video.
  • Page 15 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Here is the layout in Firefoex when it is JPEG streaming. User's Manual - ...

  • Page 16: Digital Zoom

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Digital Zoom Click on the magnifier icon under the camera view then the digital zoom control panel will be shown. Uncheck “Disable digital zoom” and use the slider control to change the zoom factors.

  • Page 17: Mp4 Recording

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions MP4 Recording Click on the red circle button on the plugin to start MP4 recording. You can set the related options in client setting page. Snapshot Click on “Snapshot”, web browser will pop up a new window to show the snapshot.

  • Page 18: Language

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Language Click on the language, all supported languages are shown in the drop-down list. The user can choose the different display language. Client settings There are four settings for the client side in IE. The first one is “Stream Options” for users to determine which stream to be streaming.
  • Page 19 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Options”. for users to determine which media to be streaming under MPEG-4 mode. The third one is “MPEG-4 Protocol Options” which allows choices on connection protocol between client and server. There are four protocols choices to optimize your usage –...

  • Page 20: Digital Output

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/clientset.html <Network Camera> is the domain name or the original IP address of the Network Camera. Digital output Click on “ON”, the digital output of the Network Camera will be triggered. Or, Clicking on “OFF”...
  • Page 21 VIVOTEK - A Leading Provider of Multimedia Communication Solutions For Viewing by Mobile Phone Most 3GPP cell phone supports media streaming with MPEG4 video and GSM-AMR audio. Due to the limitation of the bandwidth for 3GPP, only 176x144 video solution will be supported for cell phone viewing.

  • Page 22: Only Quality Images Will Do

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions For Best Real-time Video Images To achieve good real-time visual effect, the network bandwidth should be large enough to allow a transmission rate of greater than 20 image frames per second. If the broadband network is over 1 Mbps, set the “Fix bit rate”...

  • Page 23: Opening Accounts For New Users

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Opening accounts for new users Protect Network Camera by passwords The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the configuration as long as the IP address is known.

  • Page 24: Build A Security Application

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Build a security application The Administrator can use the built-in motion detection to monitor any movement to perform many useful security applications. To upload the snapshots, users can choose either email, FTP, HTTP, Network storage or CF according to user’s needs. All servers setting are in Server section on Application page.

  • Page 25: Software Revision Upgrade

    13.Click on save to validate. Software revision upgrade Customers can obtain the up-to-date software from the web site of Vivotek. An easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a few clicks. The upgrade function is opened to the Administrator only. To upgrade the system, follow the procedures below.

  • Page 26: Definitions In Configuration

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Definitions in Configuration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific phrases on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration.

  • Page 27: System Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions System parameters "Host name" The text displays the title at the top of the main page. “Turn off the LED indicator” Check this option to shut off the LED on the rear. It can prevent the camera’s operation being noticed.

  • Page 28: Security Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security settings “Root password” Change the Administrator’s password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes. After pressing , the web browser will ask the Administrator for the new password for access.

  • Page 29: Https

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions HTTPS The Network Camera provides authentication and encrypted communication over SSL. "Enable HTTPS" Select this option to turn on the HTTPS communication. "Create and Install Certificate" Select either to create a self-signed certificate or a signed certificate.

  • Page 30: Vivotek - A Leading Provider Of Multimedia Communication Solutions

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions 3 : The CSR should look should look something like this: -----BEGIN CERTIFICATE----- MIIEKTCCAxGgAwIBAgIRAO8QfYSRPc8IqNgEFisnLnQwDQYJKoZIhvcNAQEFBQAw cjELMAkGA1UEBhMCR0IxGzAZBgNVBAgTEkdyZWF0ZXIgTWFuY2hlc3RlcjEQMA4G A1UEBxMHU2FsZm9yZDEaMBgGA1UEChMRQ09NT0RPIENBIExpbWl0ZWQxGDAWBgNV BAMTD0Vzc2VudGlhbFNTTCBDQTAeFw0wODAyMjYwM0BAQUFAAOCAQEAMQfe UAu1qaHkq0U4/4FV4y+ArAtDuYjX6VRZiBl2VmKiY26SD2kfRe5q0OkQOW/hiJc9 r709l1C1/qmUOGTsVolRUM+DXys07Fbn0NlRK1Hzn2GzhPF8v8xIA1QmMSJVUvzs bMLZACFivdml0jWNARMWusmc4jlZS7r1+z8eglGwcd5jB6cfn9yg46UIwyrOlMsY xZCtuylfTxU2Zh3a3Vs23NJ8YVV7Zz3XL6x4+k5yrEzj19v1Emto6g8LocAxc/hx g2BaZ7x2JrrbnwTlKBQlhxxs9GS+UZKs+WOSwR1i/r4feXPhHdDH0Og7BEnFhmIe Dg5M3CGrLb2tEpTdYg== -----END CERTIFICATE----- 4 : Look for a trusted certificate authority that issues digital certificates.
  • Page 31 VIVOTEK - A Leading Provider of Multimedia Communication Solutions To create a self-signed certificate: 1 : Click Create for Create and Install Certificate. This pops up the Create Certificate window. 2 : Fill in the information required for generating a Certificate Signing Request (CSR) and click Save.
  • Page 32 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 3 : Browsing the Network Camera using HTTPS helps to protect streaming data over the Internet. https://XXX.XXX.XXX.XXX "Certificate information" Display the certification information. Users may click Property for details. To remove the signed certificate, uncheck the Enable HTTPS secure connection and click Remove.

  • Page 33: Network Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network settings Any changes made on the Network type sectoin will restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on Network type “LAN”...

  • Page 34: Http

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions of computer name and IP address. “Enable UPnP presentation” Enable the UPnP camera short cut “Enable UPnP port forwarding” Enable UPnP port forwarding “PPPoE” If using the PPPoE interface, fill the following settings from ISP “User name”...
  • Page 35 VIVOTEK - A Leading Provider of Multimedia Communication Solutions connection from client software when the codec type is MPEG-4. “Access name for stream 2” This is the access URL of stream 2 for making connection from client software when the codec type is MPEG-4.
  • Page 36 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/network.html <Network Camera> is the domain name or original IP address of the Network Camera. - 33 -  - User's Manual...

  • Page 37: Ddns

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions DDNS “Enable DDNS” This option turns on the DDNS function. “Provider” The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website to make sure the service charges.

  • Page 38: Access List

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Access List The access list is to control the access permission of clients by checking the client IP address. Access List There are two lists for permission control: Allow List and Deny List. Only those clients whose IP address is in the Allow List and not in the Deny List can connect to the Video Server or Network Camera for receiving the audio/video streaming.

  • Page 39: Audio And Video

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Audio and Video This product supports dual-stream. It provides two setting for video streams, but only one setting for audio. Video Settings “Video title” The text string can be displayed on video “Color”...

  • Page 40: Audio Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions There are three dependent parameters provided in MPEG-4 mode for video performance adjustment. “Intra frame period” The interval of intra frame. “Max frame rate” This limits the maximal refresh frame rate, which can be combined with the “Video quality”...
  • Page 41 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/audiovideo.htm <Network Camera> is the domain name or original IP address of the Network Camera. User's Manual - 0...

  • Page 42: Image Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Image Settings Click on this button to pop up another window to tune “Brightness”, “Contrast”, “Hue” and “Saturation” for video compensation. Each field has eleven levels ranged from -5 to +5. In “Brightness” and “Contrast” fields the value 0 indicates auto tuning.

  • Page 43: Privacy Mask

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Privacy Mask Click on the button to pop up another window to set privacy mask window. All user can not view the block under privacy mask window. “Enable privacy mask” Check this option to turn on privacy mask.

  • Page 44: Motion Detection

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Click on this button to save the related window settings. "Window Name" The text will show at the top of the window. The following figure shows the screen when is clicked and the privacy mask is enabled.
  • Page 45 VIVOTEK - A Leading Provider of Multimedia Communication Solutions the title bar to move. Clicking on the ‘x’ at the upper right-hand corner of the window to delete the window. Remember to save in order to validate the changes. Click on this button to save the related window settings. A graphic bar will rise or fall depending on the image variation.

  • Page 46: Application

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Application There are three sections in application page. They are event, server and media. Click to pop a window to add a new item of event, server or media. Click delete the selected item from event, server or media. Click on the item name to pop a window to edit it.

  • Page 47: Event

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/application.htm <Network Camera> is the domain name or original IP address of the Network Camera. Event “Event name” The unique name for event “Enable this event” Check it to enable this event.
  • Page 48 VIVOTEK - A Leading Provider of Multimedia Communication Solutions  - User's Manual...

  • Page 49: Server

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Server “Server name” The unique name for server There are four kinds of servers supported. They are email server, FTP server, HTTP server and network storage. Here is setting for email server.

  • Page 50: Media

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions correct. The testing result will be shown in a pop-up window. Media “Media name” The unique name for media There are three kinds of media. They are snapshot, video clip and system log.
  • Page 51 VIVOTEK - A Leading Provider of Multimedia Communication Solutions “Send Post-event images” The number of post-event images “Send Post-event images” The number of post-event images “File name prefix” The prefix name will be added on the file name of the snapshot “File name prefix”...

  • Page 52: Recording

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Recording The Network camera supports recording on CF and network storage. The operation of editing recording item is the same as the one in application page. User can know the recording name, status, weekly and time schedule, stream source and destination of recording.
  • Page 53 “File name prefix” The prefix name will be added on the file name of the recording. VIVOTEK - A Leading Provider of Multimedia Communication Solutions When click on the destination, a page appears listing all .mp4 files in that destination.

  • Page 54: System Log

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions System log The Network camera support log the system messages on remote server. The protocol is compliant to RFC 3164. If you have external Linux server with syslogd service, use “-r” option to turn on the facility for receiving log from remote machine. Or you can use some software on Windows which is compliant to RFC 3164.

  • Page 55: Viewing System Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/syslog.htm <Network Camera> is the domain name or original IP address of the Network Camera. Viewing system parameters Click on this link on the configuration page to view the entire system’s parameter set.
  • Page 56 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/parafile.htm <Network Camera> is the domain name or original IP address of the Network Camera. - 53 - www.vivotek.com  - User's Manual...

  • Page 57: Maintenance

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc. "Reboot" Click this button to turn off and turn on the Network Camera. It takes about one ~ two minutes to complete the process.
  • Page 58 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ® 1 : Open the XML file using Microsoft Notepad and locate your time zone; set the starting time and ending time of the DST. When completed, save the file. In the example below, the DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
  • Page 59 Network Camera during the upgrade. The upgrade is successful as you see “Reboot system now!! This connection will close”. 1 : Download a new firmware file from VIVOTEK website. The file is in pkg file format. 2 : Click Browse… and specify the firmware file.
  • Page 60 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The following message is displayed when you have selected an incorrect firmware file. Starting firmware upgrade... Do not power down the server during the upgrade. The server will restart automatically after the upgrade is completed.
  • Page 61 VIVOTEK - A Leading Provider of Multimedia Communication Solutions "CF Settings" Loading a CF card to the Network Camera allows you to save snapshots and video clips to it. To ensure that the card is ready to record, it is suggested that the CF card is formatted at initial usage.
  • Page 62 VIVOTEK - A Leading Provider of Multimedia Communication Solutions To test if the CF card can be applied to a recording setting, follow the steps below: 1 : Select Recording from the main menu. 2 : Click CF Test to see if the card is working correctly.
  • Page 63 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/maintain.htm <Network Camera> is the domain name or original IP address of the Network Camera. User's Manual -  - 57 -...

  • Page 64: Appendix

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Appendix A. Troubleshooting Status LED The following table lists the LED patterns in general. Condition LED color Loading system after power on Steady green and blink red (once) During booting procedure...

  • Page 65: Style Convention

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions 1. Press on the button continuously. 2. Wait for self-diagnostic to run twice. 3. Free the button as soon as the second self-diagnostic starts. Restoring the factory defaults will erase any previous settings.

  • Page 66: General Cgi Url Syntax And Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions with the referred syntax as seen below. The name of the server is written as <servername>. This is intended to be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.

  • Page 67: Security Level

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Example: Setting digital output #1 to active http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1 Security level SECURITY SUB-DIRECTORY DESCRIPTION LEVEL anonymous Unprotected. 1 [view] anonymous, viewer, 1. Can view, listen, talk to camera dido, camctrl 2. Can control dido, ptz of camera...
  • Page 68 VIVOTEK - A Leading Provider of Multimedia Communication Solutions [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] where the <parameter> should be <group>[_<name>] or <group>[.<name>] If you do not specify the any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of related group will be returned.

  • Page 69: Set Server Parameter Values

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions network.ipaddress=192.168.0.123\r\n Set server parameter values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&update=<value>][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&update=<value>] [&return=<return page>] http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&update=<value>] [&return=<return page>] http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>...

  • Page 70: Available Parameters On The Server

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions (.vspx) file. It can not be a CGI command. It can not have any extra parameters. This parameter must be put at end of parameter list) Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n...
  • Page 71 VIVOTEK - A Leading Provider of Multimedia Communication Solutions string[<n>] Text string shorter than ‘n’ characters password[<n>] The same as string but display ‘*’ instead integer Any number between (-2 – 1) and (2 – 1) positive integer Any number between 0 and (2 –...
  • Page 72 VIVOTEK - A Leading Provider of Multimedia Communication Solutions time <hh:mm:ss>, Current time of system. Set to keep, ‘keep’ keeping time unchanged. auto Set to ‘auto’ to use NTP to synchronize time. <domain NTP server name>, <ip address>, <blank> timezoneindex...
  • Page 73 VIVOTEK - A Leading Provider of Multimedia Communication Solutions -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS. 0: GMT Casablanca, Greenwich Mean Time:Dublin, Edinburgh, Lisbon, London 40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna,...
  • Page 74 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Chennai, Mumbai, New Delhi 230: GMT 05:45 Kathmandu 240: 06:00 Almaty, Novosibirsk, Astana, Dhaka, Sri Jayawardenepura 260: GMT 06:30 Rangoon 280: 07:00 Bangkok, Hanoi, Jakarta, Krasnoyarsk 320: 08:00 Beijing, Chongging, Hong Kong,...
  • Page 75 VIVOTEK - A Leading Provider of Multimedia Communication Solutions restore Restore the system parameters <positive to default value. Restart the integer> server after <value> seconds. reset Restart server after <positive <value> seconds. integer> restoreexceptnet Restore the system parameters <positive default...
  • Page 76 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 1 => Active, triggered do_i<0~ndi-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered onlinenum_rtsp integer current RTSP connection numbers onlinenum_httppush integer current HTTP push server connection numbers Group: di_i<0~(ndi-1)> NAME...
  • Page 77 VIVOTEK - A Leading Provider of Multimedia Communication Solutions privilege operator, admin Group: network NAME VALUE SECURITY DESCRIPTION (get/set) type lan, Network connection type pppoe resetip <boolean> 1 => get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot 0 =>...
  • Page 78 VIVOTEK - A Leading Provider of Multimedia Communication Solutions alternateport 1025~65535 Alternative HTTP port authmode basic, HTTP authentication mode digest s0_accessname string[32] Http server push access name for stream 1 s1_accessname string[32] Http server push access name for stream 2...
  • Page 79 VIVOTEK - A Leading Provider of Multimedia Communication Solutions videoport 1025 ~ 65535 6/6 video channel port for RTP audioport 1025 ~ 65535 6/6 audio channel port for RTP Subgroup of network: pppoe NAME VALUE SECURITY DESCRIPTION (get/set) user string[128]...
  • Page 80 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: videoin_c<0~(n-1)> for n channel products, m is stream number NAME VALUE SECURITY DESCRIPTION (get/set) color 0, 1 0 =>monochrome 1 => color flip <boolean> flip the image mirror <boolean> mirror the image ptzstatus <integer>...
  • Page 81 VIVOTEK - A Leading Provider of Multimedia Communication Solutions s<0~(m-1)>_keyin 1, 3, 5, 10, Key frame interval terval s<0~(m-1)>_resol 176x144, Video resolution in pixel ution 320x240, 640x480, 800x600, 1280x1024 s<0~(m-1)>_ratec cbr, vbr cbr, constant bitrate ontrolmode vbr, fix quality s<0~(m-1)>_quant 1, 2, 3, 4, 5 quality of video when choosing vbr in “ratecontrolmode”.
  • Page 82 VIVOTEK - A Leading Provider of Multimedia Communication Solutions NTSC or 60Hz CMOS) s<0~(m-1)>_forcei Force I frame Group: audioin_c<0~(n-1)> for n channel products NAME VALUE SECURITY DESCRIPTION (get/set) source micin, micin => external linein microphone input linein => use line input, i.e.
  • Page 83 VIVOTEK - A Leading Provider of Multimedia Communication Solutions (get/set) brightness -5 ~ 5 Adjust brightness of image according to mode settings. saturation -5 ~ 5 Adjust saturation of image according to mode settings. contrast -5 ~ 5 Adjust contrast image according to mode settings.
  • Page 84 VIVOTEK - A Leading Provider of Multimedia Communication Solutions dns. provider Safe100, Safe100 => safe100.net DyndnsDynami DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom, DyndnsCustom => dyndns.org TZO, (custom) DHS, TZO => tzo.com DynInterfree, DHS => dhs.org PeanutHull, DynInterfree CustomSafe100 =>dyn-interfree.it PeanutHull => peanut hull CustomSafe100 =>...
  • Page 85 VIVOTEK - A Leading Provider of Multimedia Communication Solutions enable <boolean> 6/6 Enable or disable the UPNP port forwarding service. upnpnatstatus status UpnP port forwarding, used internally. 0 is OK, 1 is FAIL, 2 is no IGD router, 3 is no need to do port...
  • Page 86 VIVOTEK - A Leading Provider of Multimedia Communication Solutions window win_i<0~4>_name string[14] The name of privacy mask window win_i<0~4>_left 0 ~ 320/352 Left coordinate window position. win_i<0~4>_top 0 ~ 240/288 coordinate window position. win_i<0~4>_width 0 ~ 320/352 Width of privacy mask window win_i<0~4>_height...
  • Page 87 VIVOTEK - A Leading Provider of Multimedia Communication Solutions nvideoin <positive number of video input integer> nmediastream <positive number of media stream per integer> channel nvideosetting <positive number of video settings per integer> channel naudiosetting <positive number of audio settings per integer>...
  • Page 88 VIVOTEK - A Leading Provider of Multimedia Communication Solutions videoin_type 0, 1, 2 0 => Interlaced CCD 1 => Progressive CCD 2 => CMOS videoin_resolution <a list of the available resolutions list available resolution separates by comma) videoin_codec <a list of the...
  • Page 89 VIVOTEK - A Leading Provider of Multimedia Communication Solutions audioout_codec <a list of the available codec list available codec types separaters by comma) camctrl_httptunnel <boolean> Indicate whether to support the http tunnel for camera control uart_httptunnel <boolean> Indicate whether to support...
  • Page 90 VIVOTEK - A Leading Provider of Multimedia Communication Solutions (get/set) name string[40] The identification of this entry enable 0, 1 To enable or disable this event. priority 0, 1, 2 Indicate the priority of this event. “0” indicates low priority.
  • Page 91 VIVOTEK - A Leading Provider of Multimedia Communication Solutions weekday <interger> 6/6 Indicate which weekday is scheduled. One bit represents one weekday. The bit0 (LSB) indicates Saturday. The bit1 indicates Friday. The bit2 indicates Thursday. The bit3 indicates Wednesday. The bit4 indicates Tuesday.
  • Page 92 VIVOTEK - A Leading Provider of Multimedia Communication Solutions type email, Indicate the server type. ftp, “email” is email server. http, “ftp” is ftp server. “http” is http server. “ns” is network storage. http_url string[128] 6/6 The url of http server to upload.
  • Page 93 VIVOTEK - A Leading Provider of Multimedia Communication Solutions PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] The identification of this entry type snapshot, The media type to send to the server systemlog or store by the server. videoclip snapshot_source <integer>...
  • Page 94 VIVOTEK - A Leading Provider of Multimedia Communication Solutions enable 0, 1 To enable or disable this recoding. priority 0, 1, 2 Indicate the priority of this recoding. “0” indicates low priority. “1” indicates normal priority. “2” indicates high priority.

  • Page 95: Drive The Digital Output

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Drive the digital output Note: This request requires the privilege of viewer. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>][&return=<return page>] Where state is 0, 1. “0” means inactive or normal state while “1” means active or triggered state.

  • Page 96: Query Status Of The Digital Output

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all the status of digital input will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [di0=<state>]\r\n [di1=<state>]\r\n [di2=<state>]\r\n [di3=<state>]\r\n where <state> can be 0 or 1.

  • Page 97: Capture Single Snapshot

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the status of digital output will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do0=<state>]\r\n [do1=<state>]\r\n [do2=<state>]\r\n [do3=<state>]\r\n where <state> can be 0 or 1.

  • Page 98: Account Management

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>] If the user requests the size larger than all stream setting on the server, this request will failed! PARAMETER VALUE DEFAULT DESCRIPTION channel 0~(n-1) the channel number of video source resolution <available...

  • Page 99: System Logs

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to server. When using this method, “username” field is necessary. It will use default value of other fields if not specified. delete Remove an account from server.

  • Page 100: Upgrade Firmware

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n Upgrade firmware Note: This request requires administrator privilege Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi...

  • Page 101: Ip Filtering

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions IP filtering Note: This request requires administrator access privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/ipfilter.cgi? method=<value>&[start=<ipaddress>&end=<ipaddress>][&index=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION Method addallow Add a set of allow IP address range to server. Start and end parameters must be specified.

  • Page 102: Rtsp Sdp

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions start <ip address> The start IP address to add or to delete. <ip address> The end IP address to add or to delete. index <value> The start position to add or to delete.

  • Page 103: Led Indicator

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions D. Technical specifications - System - Microphone Vivotek VVTK-1000 CPU: RAM: 64MB SDRAM Internal microphone: ROM: 8MB FLASH ROM Omni-directional Frequency: 50 – 16000Hz S/N ratio: more than 60dB External microphone...

  • Page 104: Technology License Notice

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.
  • Page 105 Vivotek Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
