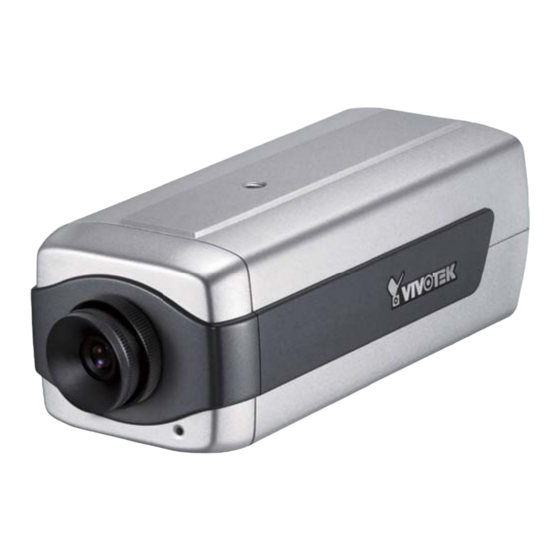

Vivotek IP7130 User Manual

Tamper detection dual streams poe network camera
Hide thumbs Also See for IP7130:
Table of Contents

Advertisement

Quick Links

Download this manual
IP7130
Tamper Detection Dual Streams PoE
IP Sur veillance
IP Sur veillance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP7130 and is the answer not in the manual?

Questions and answers

Related Manuals for Vivotek IP7130

Summary of Contents for Vivotek IP7130

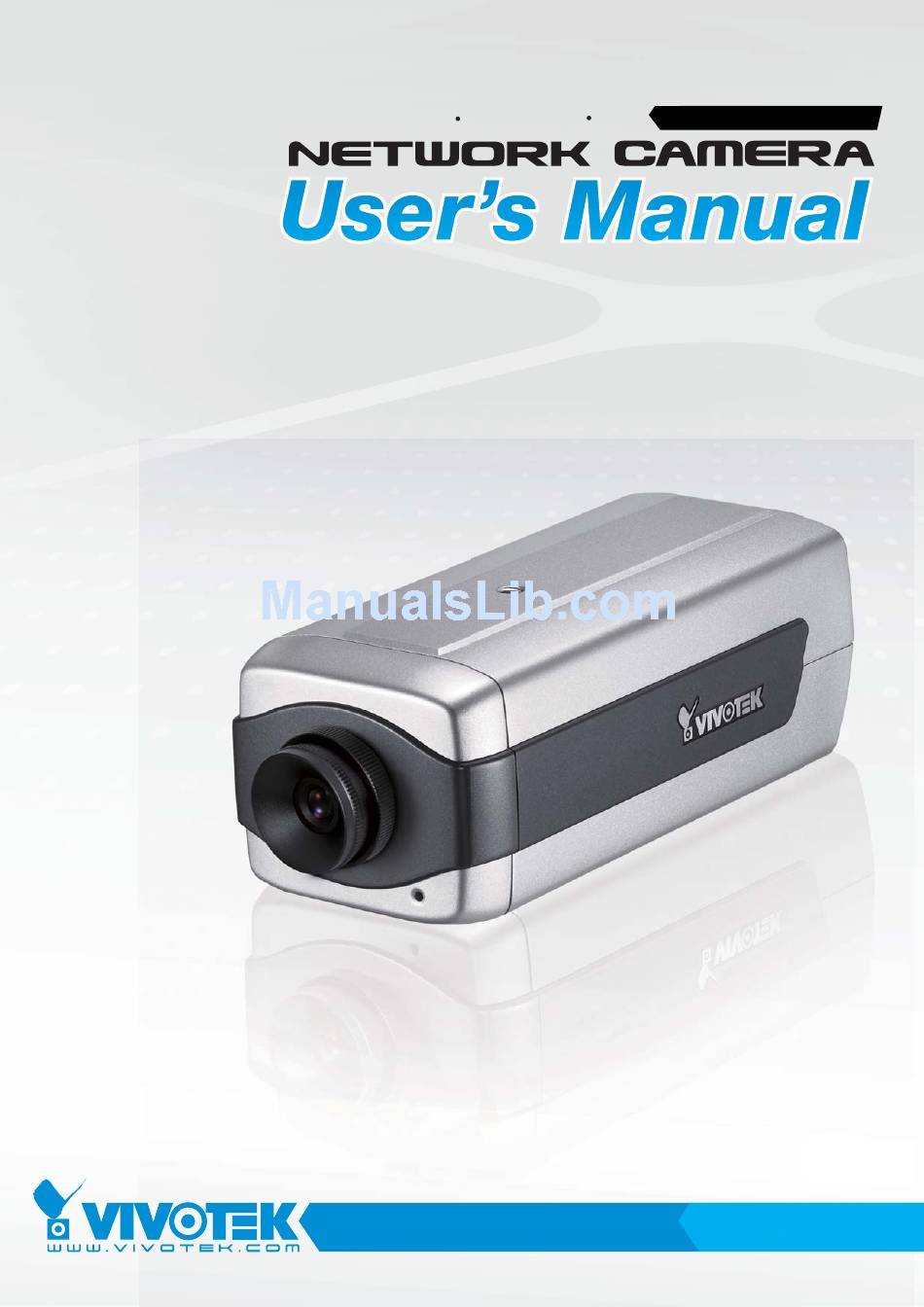

  • Page 1 IP7130 Tamper Detection Dual Streams PoE IP Sur veillance IP Sur veillance...

  • Page 2: Table Of Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Table of Contents Overview3 Read Before Use �������������������������������������������������������������������������������������������������������������������������������������3 Package Contents �����������������������������������������������������������������������������������������������������������������������������������3 Physical Description ��������������������������������������������������������������������������������������������������������������������������������4 Network Deployment �������������������������������������������������������������������������������������������������������������������������������7 Software Installation ������������������������������������������������������������������������������������������������������������������������������10 Ready to Use ����������������������������������������������������������������������������������������������������������������������������������������� 11 Accessing the Network Camera 12 Using Web Browsers �����������������������������������������������������������������������������������������������������������������������������12 Using RTSP Players ������������������������������������������������������������������������������������������������������������������������������14...

  • Page 3: Overview3

    With its dual-stream feature, the IP7130 also allows two video streams to be delivered in a different resolutions, frame rates, and image qualities for individual recording or bandwidth demands� Images can be displayed in VGA format for real- time monitoring while displayed on a 3GPP mobile phone in lower resolution, giving users a higher level of flexibility for dealing with camera images on different platforms.

  • Page 4: Physical Description

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Physical Description Front Panel Lens Back Panel Status LED Microphone In Ethernet 10/100 RJ45 Socket Indented Reset Button General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input / output devices.

  • Page 5: Status Led

    Steady Red + Blink Green every 2 sec� Blink Red every 0�15 sec� + Blink Green every 1 sec� Blink Red every 0�15 sec� + Blink Green every 0�15 sec� VIVOTEK - A Leading Provider of Multimedia Communication Solutions PIN 1 Power+12V...
  • Page 6 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Hardware Reset Status LED Indented Reset Button The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, restore the factory settings and install again.

  • Page 7: Network Deployment

    Regarding how to obtain your IP address, please refer to Software Installation on page 10 for details� Internet Cable or DSL Modem VIVOTEK - A Leading Provider of Multimedia Communication Solutions router� The second way is to utilize a static WAN (Wide Area Network )
  • Page 8 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192.168.0.3, please forward the following ports for the Network Camera on the router. ■ HTTP port ■...
  • Page 9 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Set up the Network Camera through Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, which allows it to be powered via a single Ethernet cable� If your switch/router supports PoE, refer to the following illustration to connect the Network Camera to a PoE-enabled switch/router.

  • Page 10: Software Installation

    After your network environment is analyzed, please click Next to continue the program� 3� The program will search for all VIVOTEK network devices on the same LAN� 4. After searching, the main installer window will pop up. Click on the MAC and model name which matches the product label on your device to connect to the Network Camera via Internet Explorer�...

  • Page 11: Ready To Use

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Ready to Use 1� Access the Network Camera from the LAN� 2� Retrieve live video through a web browser or recording software� User's Manual - 11...

  • Page 12: Accessing The Network Camera 12

    3� The live video will be displayed in your web browser� 4. If this is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below� Follow the instructions to install the required plug-in on your computer�...
  • Page 13 1� Choose Tools > Internet Options > Security > Custom Level� 2. Look for Download signed ActiveX 3. Refresh your web browser, then install the Active X complete installation� VIVOTEK - A Leading Provider of Multimedia Communication Solutions ® Controls for your browser� ®...

  • Page 14: Using Rtsp Players

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following applications that support RTSP streaming� Quick Time Player Real Player VLC media player 1�...

  • Page 15: Using 3Gpp-Compatible Mobile Devices

    5� Type the following URL command into the player� The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming access name for stream1 or stream2>� For example: VIVOTEK - A Leading Provider of Multimedia Communication Solutions MPEG-4 176 x 144 5 fps 40kbps 12.2kbps...

  • Page 16: Using Vivotek Recording Software

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using VIVOTEK Recording Software The product software CD also contains VIVOTEK’s recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software, then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the...

  • Page 17: Main Page 17

    Main Page This chapter explains the layout of the main page� It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window� VIVOTEK INC. Logo Camera Control Area Configuration Area VIVOTEK INC.
  • Page 18 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Live Video Window ■ The following window is displayed when the video mode is set to MPEG-4: Video Title Title and Time Video Title: The video title can be configured. For more information, please refer to Video Settings on page 48�...
  • Page 19 Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP (*�bmp) format� VIVOTEK - A Leading Provider of Multimedia Communication Solutions Mute function is not activated, move the slider bar to adjust the...
  • Page 20 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation screen indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen.

  • Page 21: Client Settings 21

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When finished with the settings on this page, click Save on the page bottom to enable the settings�...

  • Page 22: Mp4 Saving Options

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions MP4 Saving Options Users can record live video as they are watching by clicking Here, you can specify the storage destination and file name. Folder: Specify the storage destination for the recorded video files.

  • Page 23: Configuration 23

    Click Configuration on the main page to enter the camera setting pages� Note that only Administrators can access the configuration page. VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users�...

  • Page 24: System

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Advanced Mode Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up advanced...
  • Page 25 VIVOTEK - A Leading Provider of Multimedia Communication Solutions System Time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the system power is turned off�...

  • Page 26: Security

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User section, please set the password for the “root”...

  • Page 27: Https

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level�...
  • Page 28 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 4. The Certificate Information will automatically de displayed in the third section as shown below. You can click Property to view detailed information about the certificate. 5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the address bar and press Enter on your keyboard�...
  • Page 29 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Create a self-signed certificate manually 1� Select this option� 2� Click Create to open the Create Certificate page, then click Save to generate the certificate. 3. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate.
  • Page 30 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 3. If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups� 4. The pop-up window shows an example of a certificate request.
  • Page 31 ► If you want to create and install other certificates, please remove any existing ones. To remove the signed certificates, uncheck Enable HTTPS secure connection in the first section and click Save� Then click Remove to erase the certificate. VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 31...

  • Page 32: Network

    Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera� 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on the LAN� Please refer to Software Installation on page 10 for details�...
  • Page 33 ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding. VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network Camera (192.168.5.151) and it is activated� User's Manual - 33...
  • Page 34 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ► Steps to enable the UPnP user interface on your computer: Note that you must log on to the computer as a system administrator to install the UPnP components� 1. Go to Start, click Control Panel, then click Add or Remove Programs�...
  • Page 35 Camera to factory default; please refer to Restore on page 79 for details� After the Network Camera is reset to factory default, it will be accessible on the LAN. VIVOTEK - A Leading Provider of Multimedia Communication Solutions http://192.168.4.160 or http://192.168.4.160:8080...
  • Page 36 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Enable IPv6 Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The ® browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
  • Page 37 DHCPv6 server and router advertisements-enabled routers� If you check this item, the following blanks will be displayed for you to enter the corresponding information: VIVOTEK - A Leading Provider of Multimedia Communication Solutions IPv6 address IPv6 address...
  • Page 38 VIVOTEK - A Leading Provider of Multimedia Communication Solutions HTTP Advanced Mode To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security on page 26 for details� Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest�...
  • Page 39 The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously� By using the Network Camera’s built-in or external microphone and an external speaker, you can communicate with people around the Network Camera. VIVOTEK - A Leading Provider of Multimedia Communication Solutions stream 2 is set to video2�mjpg: will fail to access the Network Camera�...
  • Page 40 The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via an FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535�...

  • Page 41: Rtsp Streaming

    3� Type the URL command in the text box� For example: 4� The live video will be displayed in your player as shown below� Video 16:38:01 2008/01/03 VIVOTEK - A Leading Provider of Multimedia Communication Solutions authentication is selected, user credentials are encrypted using MD5 Quick Time player Real Player...
  • Page 42 VIVOTEK - A Leading Provider of Multimedia Communication Solutions RTSP port /RTP port for video, audio/ RTCP port for video, audio ■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554�...

  • Page 43: Ddns

    Enable DDNS: Select this option to enable the DDNS setting� Provider: Select a DDNS provider from the provider drop-down list� VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register with Internet. Additionally, we offer other DDNS providers, such as Dyndns.org (Dynamic), Dyndns.org (Custom), TZO.com, DHS.org, CustomSafe100, dyn-interfree.it.
  • Page 44 4� Select Enable DDNS and click Save to enable the setting� ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...

  • Page 45: Access List

    3. The administrator has set up a root password, but allows anonymous viewing. For more information about Allow Anonymous Viewing, please refer to Security on page 26� VIVOTEK - A Leading Provider of Multimedia Communication Solutions IP address Elapsed time 192.168.1.147...
  • Page 46 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access�...
  • Page 47 Always allow the IP address to access this device: You can check this item and add the Administrator’s IP address in this field to make sure the Administrator can always connect to the device. VIVOTEK - A Leading Provider of Multimedia Communication Solutions IP address 192�168�2�x will be blocked�...

  • Page 48: Audio And Video

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Audio and Video This section explains how to cofigure the audio and video settings of the Network Camera. It is composed of the following two columns: Video Settings and Audio Settings�...
  • Page 49 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Note that when the frame size is set to 176 x 144 as shown in the picture below, only the time will be stamped on the video streams� 17:08:56 2008/06/25 Advanced Mode Image Settings Click Image settings to open the Image Settings page.
  • Page 50 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Keep current value Follow the steps below to manually set the white balance to compensate for the ambient lighting conditions� 1� Set the White balance to Auto and click Save�...
  • Page 51 ► Up to 5 privacy mask windows can be set up on the same screen� ► If you want to delete the privacy mask window, please click the ‘x’ on the upper right-hand corner of the window� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 51...
  • Page 52 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Video quality settings for stream 1 / stream 2 The Network Camera offers two choices of video compression standards for real-time viewing: MPEG-4 and MJPEG� Click the items to display the detailed configuration settings. You can set up two seperate streams for the Network Camera for different viewing devices.
  • Page 53 Excellent� You can also select Customize and manually enter a value� NOTE ► Video quality and fixed quality refers to the compression rate, so a lower value will produce higher quality� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 53...

  • Page 54: Audio Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients� Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.

  • Page 55: Motion Detection

    (Email, FTP) by utilizing this feature as a trigger source. For more information on how to set an event, please refer to Application on page 61� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 55...
  • Page 56 VIVOTEK - A Leading Provider of Multimedia Communication Solutions A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. This motion detection window will also be displayed on the Event Settings page� You can go to Application >...

  • Page 57: Camera Tampering Detection

    3� Set up the event source as Camera Tamper Detection on Application page > Event Settings /Server Settings (how to send alarm message) / Media Settings (send what type of alarm message)� Please refer to page 63 for detailed information� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 57...
  • Page 58 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Homepage Layout Advanced Mode This section explains how to set up your own customized homepage layout. Preview This column shows the settings of your homepage layout� You can manually select the background and font colors in Theme Options (the third column on this page)�...
  • Page 59 Background Color of the Control Area Font Color of the Configuration Area Background Color of the Configuration Area VIVOTEK - A Leading Provider of Multimedia Communication Solutions Font Color of the Video Title Background Color of the Video Area Frame Color...
  • Page 60 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Follow the steps below to set up a customized homepage: 1� Click Custom on the left column� 2. Click the field where you want to change the color on the right column.

  • Page 61: Application

    Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will pop up. If you need more information, please ask for VIVOTEK technical support. Click to upload a file...
  • Page 62 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Event Settings In the Event Settings column, click Add to open the Event Settings page. On this page, you can arrange three elements -- Trigger, Schedule, and Action to set an event. A total of 3 event settings can be configured.
  • Page 63 ■ System boot This option triggers the Network Camera when the power to the Network Camera is disconnected� VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 63...
  • Page 64 VIVOTEK - A Leading Provider of Multimedia Communication Solutions ■ Recording notify This option allows the Network Camera to trigger when the recording disk is full or when recording starts to rewrite older data� If you want receive Recording notify message, please refer to page 72 for detailed information�...
  • Page 65 67� Click Add Media to configure page 70� Here is an example of the Event Settings page: VIVOTEK - A Leading Provider of Multimedia Communication Solutions Server Settings. For more information, please refer to Server Settings Media Settings� For more information, please refer to Media Settings on...
  • Page 66 VIVOTEK - A Leading Provider of Multimedia Communication Solutions When completed, click Save to enable the settings and click Close to exit the Event Settings page� The new event settings / server settings / media settings will appear in the event drop-down list on the Application page�...

  • Page 67: Server Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Server Settings Click Add Server on the Event Settings page to open the Server Setting page. On this page, you can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.
  • Page 68 VIVOTEK - A Leading Provider of Multimedia Communication Solutions FTP: Select to send the media files to an FTP server when a trigger is activated. ■ Server address: Enter the domain name or IP address of the FTP server. ■ Server port By default, the FTP server port is set to 21.
  • Page 69 VIVOTEK - A Leading Provider of Multimedia Communication Solutions HTTP: Select to send the media files to an HTTP server when a trigger is activated. ■ URL: Enter the URL of the HTTP server. ■ User name: Enter the user name if necessary.

  • Page 70: Media Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Media Settings Click Add Media on the Event Settings page to open the Media Settings page. On this page, you can specify the type of media that will be sent when a trigger is activated� A total of 5 media settings can be configured.
  • Page 71 System log: Select to send a system log when a trigger is activated� Click Save to enable the settings, then click Close to exit the page� VIVOTEK - A Leading Provider of Multimedia Communication Solutions 2 sec. 3 sec. 4 sec. 5 sec.
  • Page 72 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Recording notify message: Select to send a recording notification message when a trigger is activated. The following is an example of a recording notification message (.txt file), which shows a list of deleted previously-recorded data due to cycle recording�...
  • Page 73 The format is: File name prefix + Minute (mm) You can set up the file name prefix on Media Settings page. Please refer to page 70 for detailed information� VIVOTEK - A Leading Provider of Multimedia Communication Solutions 20081120 20081121...

  • Page 74: Recording

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Recording Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings NOTE ► Before setting up this page, please set up the Network Storage on the Server Settings page first.
  • Page 75 VIVOTEK - A Leading Provider of Multimedia Communication Solutions If successful, you will receive a test.txt file on the network storage server. 3� Enter a server name� 4� Click Save to enable the settings and click Close to exit the page�...
  • Page 76 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Source: Select the recording source (stream 1 or stream 2)� Recording Schedule: Specify the recording duration� ■ Select the days of the week. ■ Select the recording start and end times in a 24-hr time format.

  • Page 77: System Log

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions System Log Advanced Mode This section explains how to configure the Network Camera to send the system log to the remote server as backup� Remote Log You can configure the Network Camera to send the system log file to a remote server as a log backup.

  • Page 78: View Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions View Parameters Advanced Mode The View Parameters page lists the entire system’s parameters in alphabetical order� If you need technical assistance, please provide the information listed on this page. 78 - User's Manual...

  • Page 79: Maintenance

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc. Reboot This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser.
  • Page 80 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Export / Upload Files Advanced Mode This feature allows you to Export / Upload daylight saving time rules, custom language files, and setting backup files. Export daylight saving time configuration file: Click to set the start and end time of DST�...
  • Page 81 Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2� Click Browse… and specify the firmware file.
  • Page 82 VIVOTEK - A Leading Provider of Multimedia Communication Solutions The following message is displayed when the upgrade has succeeded� The following message is displayed when you have selected an incorrect firmware file. Starting firmware upgrade... Do not power down the server during the upgrade.

  • Page 83: Url Commands For The Network Camera

    URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box with the example� Example: request a single snapshot image http://mywebserver/cgi-bin/viewer/video.jpg VIVOTEK - A Leading Provider of Multimedia Communication Solutions User's Manual - 83...

  • Page 84: Style Convention

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Overview For some customers who already have their own web site or web control application, a Network Camera/Video server can be easily integrated through URLs. This document provides the supersets of URL commands V2 for VIVOTEK 7000 series products.

  • Page 85: General Cgi Url Syntax And Parameters

    Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION Unprotected. 1. Can view, listen, talk to camera. 2. Can control DI/DO, PTZ of the camera. Operator access rights can modify most of the camera’s parameters except some privileges and network options.

  • Page 86: Set Server Parameter Values

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned.
  • Page 87 (Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list...

  • Page 88: Available Parameters On The Server

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Available parameters on the server Valid values: VALID VALUES DESCRIPTION string[<n>]...
  • Page 89 <MMDDhhmmYYYY.ss> <domain name>, <ip address>, <blank> timezoneindex -489 ~ 529 VIVOTEK - A Leading Provider of Multimedia Communication Solutions SECURITY DESCRIPTION (get/set) Host name of server (Network Camera, Wireless Network Camera, Video Server, Wireless Video Server). Turn on (0) or turn off (1) all led indicators.
  • Page 90 VIVOTEK - A Leading Provider of Multimedia Communication Solutions -201: GMT-05:00 Bogota, Lima, Quito, Indiana -160: GMT-04:00 Atlantic Time, Canada, Caracas, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS.
  • Page 91 3600, 86400, 604800, 2592000 enableir <boolean> VIVOTEK - A Leading Provider of Multimedia Communication Solutions Jakarta, Krasnoyarsk 320: GMT 08:00 Beijing, Chongging, Hong Kong, Kuala Lumpur, Singapore, Taipei 360: GMT 09:00 Osaka, Sapporo, Tokyo, Seoul, Yakutsk 380: GMT 09:30 Adelaide, Darwin...
  • Page 92 VIVOTEK - A Leading Provider of Multimedia Communication Solutions restore <positive integer> reset <positive integer> restoreexceptnet <Any value> restoreexceptdst <Any value> restoreexceptlang <Any Value> SubGroup of system: info (The fields in this group are unchangeable.) NAME VALUE modelname string[40] extendedmodelname...
  • Page 93 Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE normalstate high, VIVOTEK - A Leading Provider of Multimedia Communication Solutions 12 characters MAC address (without hyphens). Firmware version, including model, company, and version number in the format: <MODEL-BRAND-VERSION> ODM-specific firmware version (eg.
  • Page 94 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: do_i<0~(ndo-1)> (capability.ndo > 0) NAME VALUE normalstate open, grounded Group: viewmode NAME VALUE busymode <boolean> refreshinterval 1~99 defaultsource 0~(n-1), quad Group: security NAME VALUE privilege_do view, operator, admin user_i0_name string[64] user_i<1~20>_name...
  • Page 95 <boolean> VIVOTEK - A Leading Provider of Multimedia Communication Solutions 1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot. 0 => Use preset ipaddress, subnet, rounter, dns1, and dns2. IP address of server.
  • Page 96 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Subgroup of network: https NAME VALUE port 443, 1025 ~ 65535 Subgroup of network: rtsp NAME VALUE port 554, 1025 ~ 65535 anonymousviewing <boolean> authmode disable, basic, digest s0_accessname string[3b;42] s1_accessname...
  • Page 97 1.0.0.0 ~ 255.255.255.255 ipv6_allow_i<0~9> String[44] ipv6_deny_i<0~9> String[44] Group: videoin NAME VALUE cmosfreq 50, 60 VIVOTEK - A Leading Provider of Multimedia Communication Solutions SECURITY DESCRIPTION (get/set) Video channel port for RTP. (capability.protocol.rtp_unicast=1) Audio channel port for RTP. (capability.protocol.rtp_unicast=1) SECURITY DESCRIPTION (get/set) PPPoE account user name.
  • Page 98 VIVOTEK - A Leading Provider of Multimedia Communication Solutions whitebalance <product dependent> atwbvalue 0 ~ 65535 Group: videoin_c<0~(n-1)> for n channel products, m is stream number NAME color flip mirror ptzstatus text imprinttimestamp maxexposure options enablepreview s<0~(m-1)>_codectype s<0~(m-1)>_resolution 98 - User's Manual...
  • Page 99 Group: audio (product dependent) NAME VALUE duplexmode full, half, post, sendclientaudio <boolean> VIVOTEK - A Leading Provider of Multimedia Communication Solutions 320x240, 640x480 250, 500, Intra frame period in milliseconds. 1000, 2000, 3000, 4000 cbr, vbr cbr, constant bitrate vbr, fix quality...
  • Page 100 VIVOTEK - A Leading Provider of Multimedia Communication Solutions lowbandwidth <boolean> enableaec <boolean> Group: audioin_c<0~(n-1)> for n channel products NAME VALUE source micin, linein mute 0, 1 gain 0~31 boostmic 0, 1 s<0~(m-1)>_codectype aac4, gamr s<0~(m-1)>_aac4_bitrate 16000, 32000, 48000, 64000,...
  • Page 101 0, 1~ VIVOTEK - A Leading Provider of Multimedia Communication Solutions Adjust noise reduction mode. 1 => DeGaussian 2 => DeImpulse 3 => DeGaussian + DeImpulse Adjust noise reduction strength. 1 is minimum and 63 is maximum.
  • Page 102 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: motion_c<0~(n-1)> for m profile and n channel product NAME VALUE enable <boolean> win_i<0~2>_enable <boolean> win_i<0~2>_name string[14] win_i<0~2>_left 0 ~ 320 win_i<0~2>_top 0 ~ 240 win_i<0~2>_width 0 ~ 320 win_i<0~2>_height 0 ~ 240 win_i<0~2>_objsize...
  • Page 103 <IP address> serverport 514, 1025~65535 level Group: layout (product dependent) NAME logo_default VIVOTEK - A Leading Provider of Multimedia Communication Solutions (This field only exists if the provider is customsafe100) SECURITY DESCRIPTION (get/set) Enable or disable the UPNP presentation service. SECURITY...
  • Page 104 VIVOTEK - A Leading Provider of Multimedia Communication Solutions logo_link theme_option theme_color_font theme_color_configfont theme_color_titlefont theme_color_controlbackground theme_color_configbackground theme_color_videobackground theme_color_case Group: privacymask_c<0~(n-1)> for n channel product NAME VALUE enable <boolean> win_i<0~4>_enable <boolean> win_i<0~4>_name string[14] win_i<0~4>_left 0 ~ 320/352 win_i<0~4>_top 0 ~ 240/288 win_i<0~4>_width...
  • Page 105 <positive integer> nmotionprofile <positive integer> ptzenabled <positive integer> VIVOTEK - A Leading Provider of Multimedia Communication Solutions Number of digital outputs. Number of audio inputs. Number of audio outputs. Number of video inputs. Number of media stream per channels.
  • Page 106 VIVOTEK - A Leading Provider of Multimedia Communication Solutions lens_pan <positive integer> lens_tilt <positive integer> lens_zoom <positive integer> lens_focus <positive integer> lens_iris <positive integer> npreset <positive integer> protocol_https < boolean > protocol_rtsp < boolean > protocol_sip <boolean> protocol_maxconnection <positive integer>...
  • Page 107 <boolean> audio_extmic <boolean> audio_linein <boolean> VIVOTEK - A Leading Provider of Multimedia Communication Solutions The maximum general streaming connections. The maximum megapixel streaming connections. Indicate whether to support scalable multicast. Indicate whether to support backchannel multicast.
  • Page 108 VIVOTEK - A Leading Provider of Multimedia Communication Solutions audio_lineout <boolean> audio_headphoneout <boolean> audioin_codec <a list of the available codec types separated by commas) audioout_codec <a list of the available codec types separated by commas) uart_httptunnel <boolean> camctrl_privilege <boolean> transmission_mode...
  • Page 109 <integer> VIVOTEK - A Leading Provider of Multimedia Communication Solutions control. Media files are indexed in database. SECURITY DESCRIPTION (get/set) Custom script identification of this entry. Date of custom script. SECURITY DESCRIPTION (get/set) Identification of this entry.
  • Page 110 VIVOTEK - A Leading Provider of Multimedia Communication Solutions mdwin <integer> mdwin0 <integer> inter 1~999 weekday <integer> begintime hh:mm endtime hh:mm action_do_i<0~(ndo-1) 0, 1 >_enable action_do_i<0~(ndo-1) 1~999 >_duration action_cf_enable 0. 1 action_cf_folder string[128] action_cf_media NULL, 0~4 action_cf_datefolder <boolean> action_server_i<0~4>_e 0, 1 nable action_server_i<0~4>_...
  • Page 111 VIVOTEK - A Leading Provider of Multimedia Communication Solutions SECURITY DESCRIPTION (get/set) Identification of this entry Indicate the server type: “email” = email server “ftp” = FTP server “http” = HTTP server “ns”...
  • Page 112 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: media_i<0~4>(media_freespace is used internally.) PARAMETER VALUE name string[40] type snapshot, systemlog, videoclip, recordmsg snapshot_source <integer> snapshot_prefix string[16] snapshot_datesuffix 0, 1 snapshot_preevent 0 ~ 7 snapshot_postevent 0 ~ 7 videoclip_source <integer>...
  • Page 113 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Indicate the source of the media stream. 0 = First stream. 1 = Second stream, etc. 0: Entire free space mechanism 1: Limit recording size mechanism...
  • Page 114 VIVOTEK - A Leading Provider of Multimedia Communication Solutions dest cffolder string[128] Group: custom_i<0~2> PARAMETER VALUE name string[40] Group: path NAME VALUE encoder1_start <boolean> encoder2_start <boolean> Group: https (product dependent) NAME VALUE connect 1025 ~ 65535 enable <boolean> policy <Boolean>...

  • Page 115: Drive The Digital Output

    Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all of the digital input statuses will be returned. VIVOTEK - A Leading Provider of Multimedia Communication Solutions Organizational unit name in the certificate information. Common name in the certificate information.

  • Page 116: Query Status Of The Digital Output

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [di0=<state>]\r\n [di1=<state>]\r\n [di2=<state>]\r\n [di3=<state>]\r\n where <state> can be 0 or 1. Example: Query the status of digital input 1. Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n...

  • Page 117: Capture Single Snapshot

    Return: HTTP/1.0 200 OK\r\n Content-Type: image/jpeg\r\n [Content-Length: <image size>\r\n] VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION The channel number of the video source. The resolution of the image. The quality of the image.

  • Page 118: Account Management

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions <binary JPEG image data> Account Management Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE method Delete edit username <name> userpass <value> privilege <value> viewer...

  • Page 119: System Logs

    Server will return the most up-to-date configuration file. PARAMETER VALUE DEFAULT format Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <configuration file length>\r\n \r\n <configuration data>\r\n VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION Format for the config file. User's Manual - 119...

  • Page 120: Upgrade Firmware

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Upgrade Firmware Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated.
  • Page 121 <ip address> <ip address> index <value> VIVOTEK - A Leading Provider of Multimedia Communication Solutions DESCRIPTION Add allowed IP address range to the server. Start and end parameters must be specified. If the index parameter is specified, it will try to add starting from the index position.
  • Page 122 VIVOTEK - A Leading Provider of Multimedia Communication Solutions return <return page> Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp”...

  • Page 123: Technical Specifications

    ．CE, LVD, FCC, VCCI, C-Tick ．Temperature: 0 ~ 50 °C (32 ~ 122 °F ) Operating Environments ．Humidity: 90% RH Distributed by: VIVOTEK - A Leading Provider of Multimedia Communication Solutions Specifications Viewing System Requirements Installation, Management, and Maintenance Applications...

  • Page 124: Technology License Notice

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES.

  • Page 125: Electromagnetic Compatibility (Emc)

    Liability VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose�...
