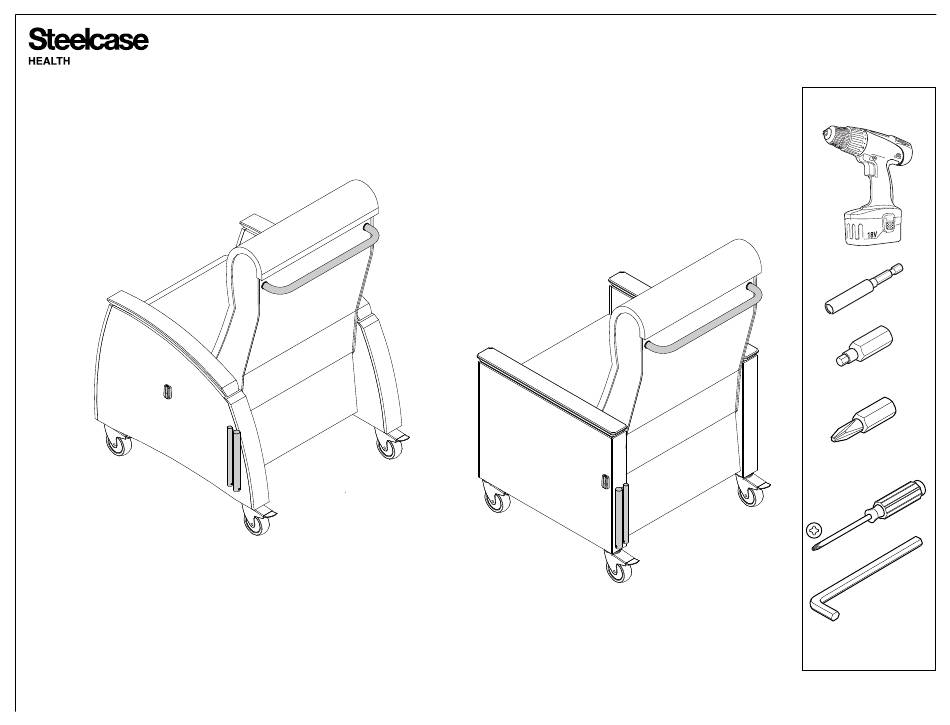

Customer Service for Drainage Bag, IV Pole & Push Bar

™

on Mitra

& Mineral

Recliner

HEX DRIVE

PHILLI PS DRIVE

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2014 Steelcase Inc.

Grand Rapids, MI 49501

Page 1 of 4

U.S.A.

Printed in U.S.A.

939502116 Rev C

Table of Contents

Need help?

Do you have a question about the Mitra and is the answer not in the manual?

Page 1 HEX DRIVE PHILLI PS DRIVE If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 Install drainage bag bracket with two (2) flat head screws (provided) with phillips screwdriver. HOLE OR MITRA ONLY: PUNCH TOOL There are no inserts behind the fabric. Push and rotate the hole punch tool in the center (same as step 3 above) and remove the cut piece of fabric.
Page 3 IV Pole Installation Mitra Recliner Mineral Recliner (Back View) NOTE: You will need to cut the holes in the fabric. We recommend a hole punch tool that is 3/8" diameter. (McMaster-Carr, Osborne, etc.) 3-1/2” Mark the two (2) hole locations as shown.
Page 4 20-1/4" NOTE: You will need to cut the holes in the fabric. We recommend a hole punch tool that is 3/8" diameter. (McMaster-Carr, Osborne, etc.) Mitra Recliner Mineral Recliner (Back View) (Back View) Mark the two (2) hole locations as shown.
