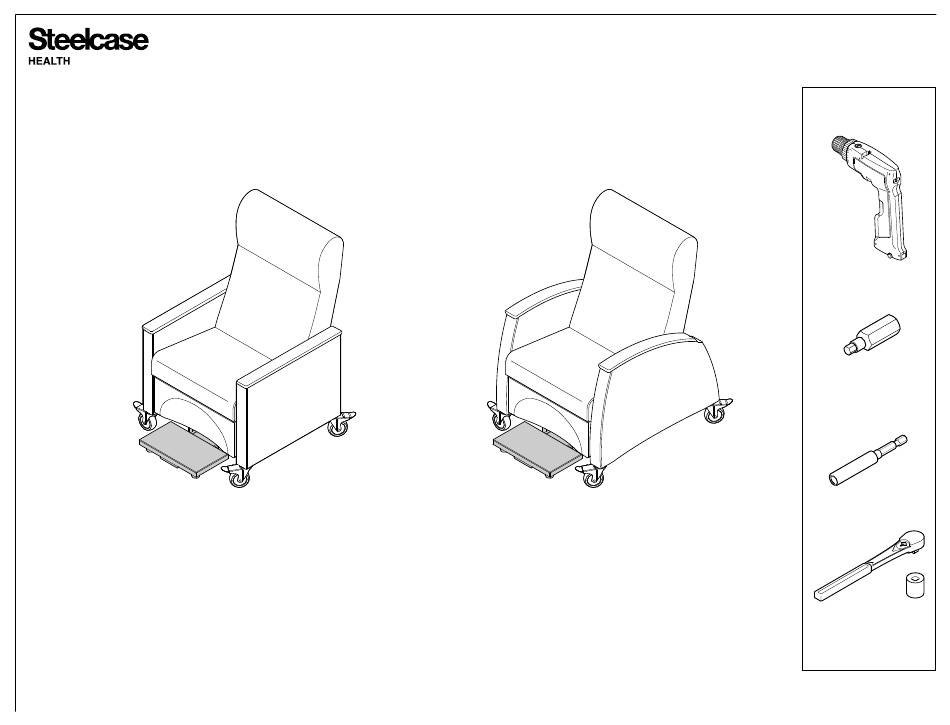

HEX DRIVE (Footrest shown in the fully extended position) If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
REAR MOUNT BRACKET REAR MOUNT BRACKET ASSEMBLY - LH ASSEMBLY - RH Standard Foot Tray Installation 1/4-20 x 1/2" BUTTON HEAD CAP SCREW WASHER Fasten rear mount bracket assemblies loosely to the main slide frame with washers MAIN SLIDE FRAME and 1/4-20 x 1/2"...
Page 3
Position main slide frame assembly, as shown, in the center of the chair frame. Install both LH & RH rear mount brackets onto chair frame back bar with 1/4-20 x 1/2" button head cap screws. MAIN SLIDE FRAME ASSEMBLY 1/4-20 x 1/2" BUTTON HEAD CAP SCREW REAR MOUNT BRACKET - RH 1/4-20 x 1/2"...
Page 4
Position top front mount bracket and bottom front mount bracket, as shown, onto the chair frame front bar with 1/4-20 x 1/2" button head cap screw and install loosely (4a). Repeat for the opposite side. Slide front mount brackets under the front bracket (4b) and install 1/4-20 x 3"...
Page 5
Position footrest, as shown, onto the slide frame assembly and install with four (4) 1/4-20 x 3/4" button head cap screw. TEST FOOTREST Check the tightness of the foot tray to ensure that the slide frame assembly is not loose when a person is in the standing or seated position.
Page 6
REAR MOUNT BRACKET ASSEMBLY - RH REAR MOUNT BRACKET ASSEMBLY - LH Trendelenburg Foot Tray Installation 1/4-20 x 1/2" BUTTON HEAD CAP SCREW WASHER Fasten rear mount brackets to the main slide frame with washers and 1/4-20 x 1/2" button MAIN SLIDE FRAME head cap screws.
Page 7
Position main slide frame assembly, as shown, in the center of the chair frame. Install four (4) 1/4-20 x 1/2" button head cap screws. MAIN SLIDE FRAME ASSEMBLY 1/4-20 x 1/2" BUTTON HEAD CAP SCREW Page 7 of 9 939502118 Rev C...
Page 8
Install 1/4-20 x 3-1/2" hex bolt, spring & two (2) washers as shown. Repeat for the opposite side. Slide out tray (5a) and press in the direction of the arrow (5b). To ensure quiet operation, make sure hex bolts are tightened securely. 1/4-20 x 3"...
Page 9
Position footrest, as shown, onto the slide frame assembly and install with four (4) 1/4-20 x 3/4" button head cap screw. TEST FOOTREST Check the tightness of the foot tray to ensure that the slide frame assembly is not loose when a person is in the standing or seated position.
