Elite Industries CREDENZA EL-1195 Assembly Instructions Manual

Phillips Head Screw Driver • Straight Blade Screw Driver • Rubber Padded Hammer or Mallet
ASSEMBLY INSTRUCTIONS
50" WIDE "CREDENZA" UNIT
TV STAND & AUDIO RACK COMBO
Model EL-1195
Black Ash Melamine
OVERALL DIMENSIONS:
24" H x 50" W x 19" D

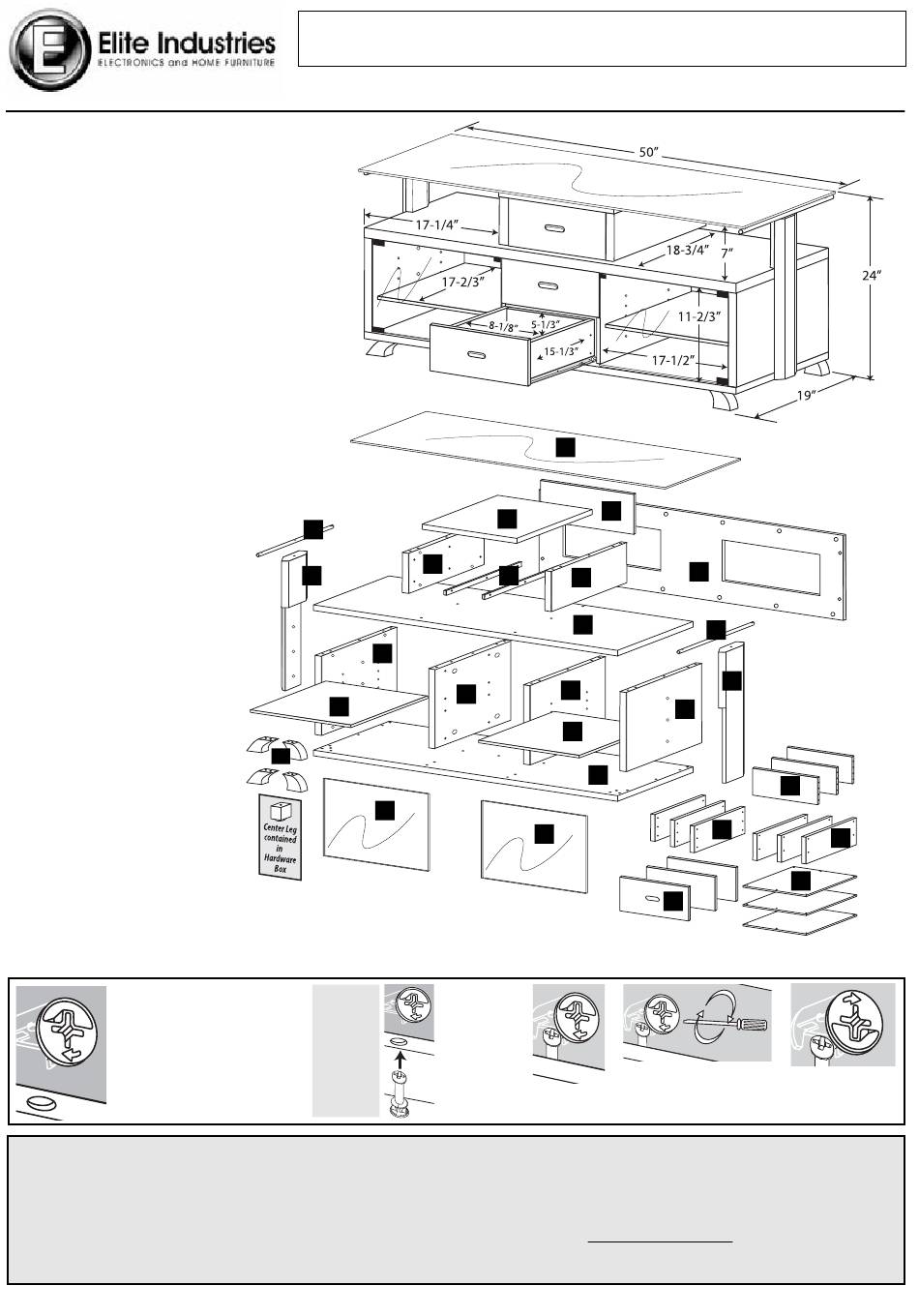

CABINET PARTS
1. Bottom Wooden Panel
2. Corner Legs (4 identical)
3. Side Panels (2 identical)
4. Vertical Divider Panels
(2 identical)
5. Top Wooden Panel
6. Upper Cavity Sides
(2 identical)
7. Upper Cavity Top
8. Upper Cavity Back
9. Upper Cavity Spacer Bars
(2 identical)
10. Vertical Wooden Mouldings
(2 identical)
11. Horizontal Metal
Glass Supports
(2 identical)
12. Lower Back Panel
13. Adjustable Shelves
(2 identical)
14. Glass Doors
(2 identical)
15. Glass Top
16. Drawer Face Panels
(3 identical)
17. Drawer Back Panels
(3 identical)
18. Drawer Side Panels
(6 identical)
19. Drawer Bottom Panels
(3 identical)
SPECIAL NOTE: In all steps
involving camlocks, please note the
correct position of the camlock in
the illustration at the left. Check all
camlocks before aligning and join-
ing pieces together. IMPORTANT:
Throughout assembly of the unit,
camlocks must be inserted with
the ARROW FACING THE EDGE.
IMPORTANT NOTES & CAUTIONS/WARNINGS
•
Carefully read and follow these instructions for assembly.
•
Please handle parts carefully, some parts may be heavy and can have sharp edges –
we recommend possibly using cloth protective gloves for extra protection.
•
To protect the unit and your flooring surface we recommend working on a padded
or carpeted area, you may also use the open box the unit came in for this purpose.
•
For proper construction & integrity/assembly and for TV weight support and safety,
all connections need to be sufficiently tight. However, do not over-tighten
connections to the point of stripping screw threadings. Parts are designed to fit
477771
PLEASE CALL 1-800-ELITE-48. CUSTOMER SERVICE HOURS EASTERN TIME 8:45 AM - 4:30 PM M-F
Thank you for purchasing this Elite product. You will need the following tools:
11
10
13
2
CAMLOCK/
CONNECTING
BOLT
PROCEDURE
PLEASE DO NOT RETURN UNIT TO STORE FOR PARTS & CUSTOMER SERVICE.
VISIT OUR WEBSITE AT: www.elite-inds.com
7
6
9
3
4
14
14
1
ALIGN
CAMLOCK &
CONNECTING
BOLT
2
JOIN PIECES
TOGETHER
together tightly, however, avoid excessive force but rather align & fit panels together
methodically and with patience.
•
For some heavy or large units, it may be recommended for 2 people to work
together on this assembly.
•
It is extremely important to attach the BACK PANEL as instructed within this manual.
Such panels are crucial for the stability and structural support of the unit.
•
Please read additional important safety information at the end of this
instruction manual.
•
We urge you to keep this manual with your unit for future reference.
Page 1/8
15
8
12
6
5
11
10
4
3
13
1
18
16
3 TURN CAMLOCKS
180° CLOCKWISE
USING A FLATHEAD
SCREWDRIVER
17
18
19
ARROW WILL NOW
BE AWAY FROM
THE EDGE ON THE
OPPOSITE SIDE.
