Quail Digital Pro9 Installation Manual page 5

Step 6 You now fit the Drive-Thru Module
(Q-P9DTM) into to the order point using the
flanges and four screws. If the DTM does not
fit or cannot be mounted in the order point,
go to Step 10.
Step 7 Next install a single length of direct
burial Cat5 cable from the DTM in the order
point, through the existing underground
conduit(s) to the likely location of the
base station (Q-P9BS) in the kitchen area.
Then, using your crimping tool, terminate
both ends of the cable with RJ45 plugs,
remembering to fit waterproof connection
cover provided onto the Cat5 at the DTM
end. Use your Cat5 tester to confirm a PASS
for a full 8 core test. Figure 4 shows the
colour code sequence for wiring the plug.
Step 8 Plug in the Cat5 cable and the
speaker and the microphone to their
respective sockets on the DTM as shown.
Step 9 Before connecting the loop to the
DTM ensure you have checked the loop
lead-in wires for continuity. If this test fails,
check/test or replace the loop as required.
If the test is successful, proceed to connect
loop lead-in wires to the screw terminals of
the DTM as shown, remembering to fit the
weatherproof cover provided.
Now go straight to Step 11.
PRO 9 DRIVE THRU MODULE
Q-P9DTM

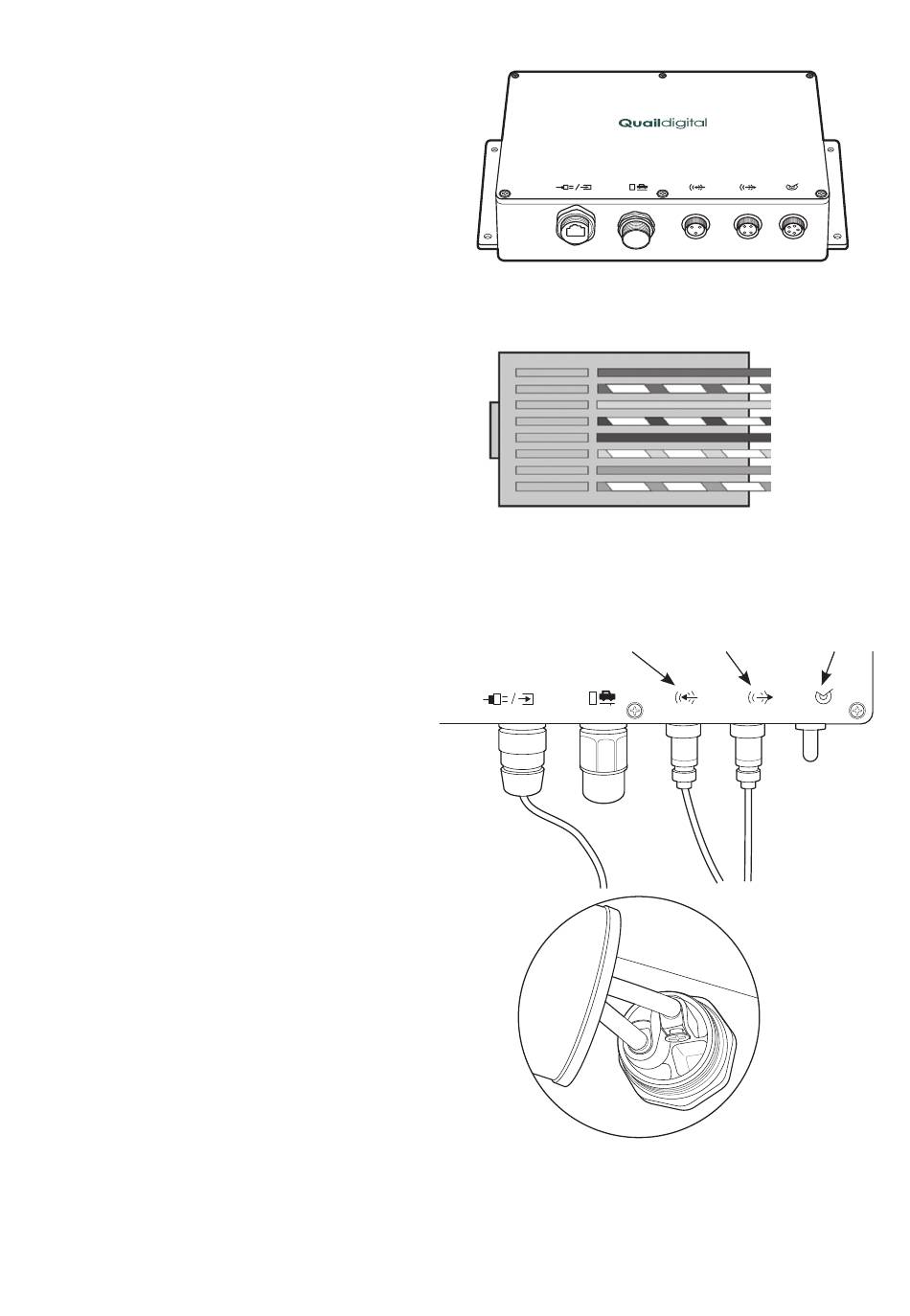

Figure 3 - Pro9 Drive-Thru Module
Figure 4 - Type B RJ45 termination colour code
Connection
to mic
Figure 5 - Loop connection
brown
brown/white
green
blue/white
blue
green/white
orange
orange/white
Connection Connection
to speaker to sonar
page 5
