Appendix C
Pro9 auxiliary connections (Q-P9ACB)
If your system is using a lane timer and/or a chime speaker use an Auxiliary Connection Box and follow
these connection instructions:

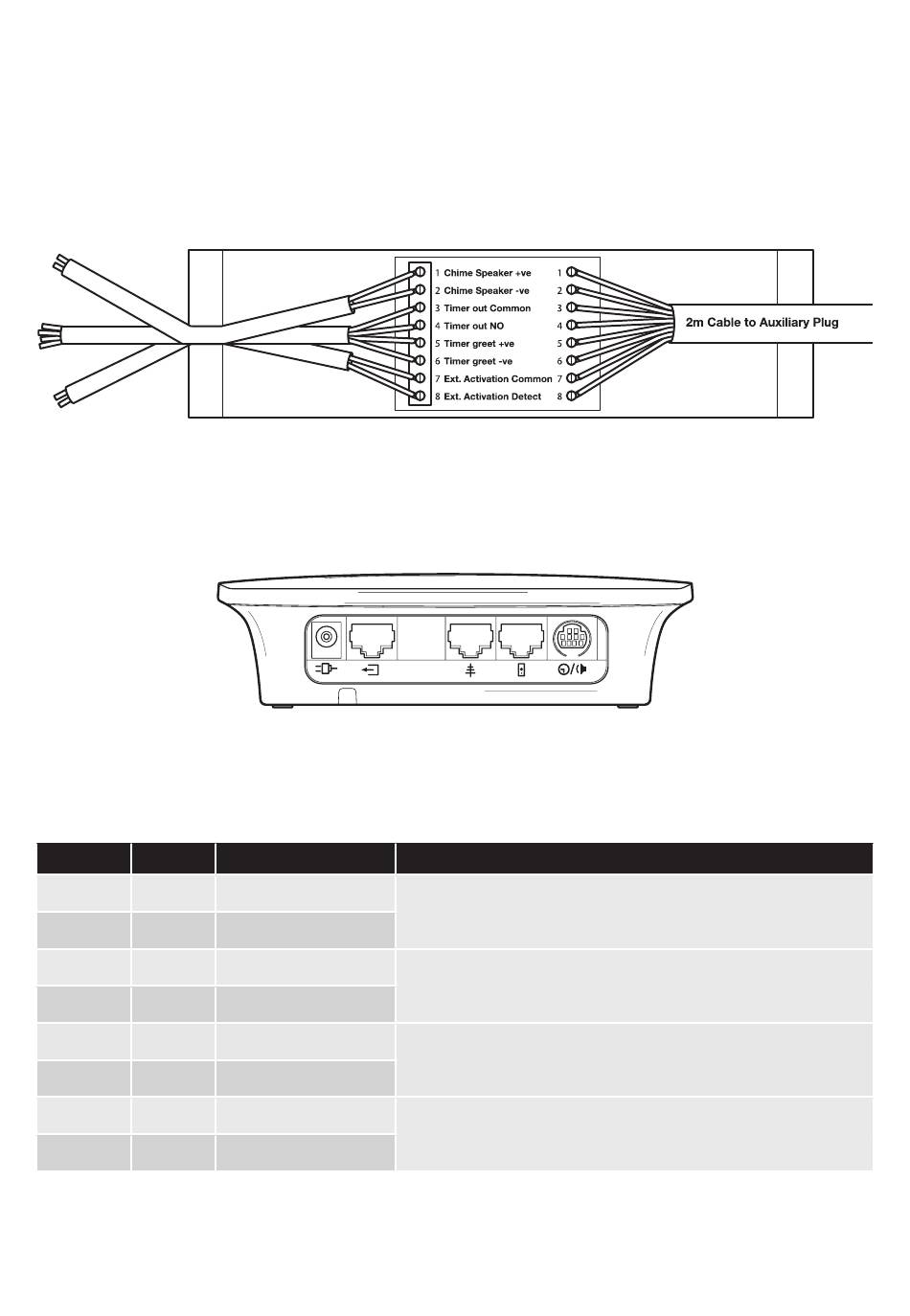

Figure16 - Auxillary connector box connections
Plug this interface connection unit into the corresponding connector on top of the base station.
Figure17 - base station (top)
This table provides the information you may require in relation to the auxiliary connections.
Connection Colour
1 White
2 Red
3 Blue
4 Green
5 Brown
6 Grey
7 Purple
8 Yellow
page 12
Description
Chime speaker +ve
Chime speaker -ve
Timer out common
Timer out NO
Timer greet +ve
Timer greet -ve
Ext activation common
Ext activation detect
Notes
For connection directly to a speaker to provide a chime on arrival of
a vehicle at the order point.
0v switch output to provide vehicle detection to OEM timers or
other equipment.
Simulated voltage output triggered when headset goes live to
speaker post. Provides "greet" function to OEM timers.
0v to 12v detection to provide third party activation of the
headset system. Typically output from an OEM timer system.
