3. Installation
Instruction
CAUTION!
Please consider the GB7000.15/EN60598-2-17 and the other respective national norms during
The installation. The installation must only be carried out by a qualified person.
►The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting
under or above the temperature.
►The installation of the effect has to be built and constructed in a way that it can hold 10 times
the weight for 1 hour without any harming deformation.
►The installation must always be secured with a secondary safety attachment, e.g. an
appropriate safety rope.Never stand directly below the device when mounting, removing or
servicing the fixture.
►The operator has to make sure the safety relating and machine technical installations are
approved
by an expert before taking the device into operation for the first time.
►These installations have to be approved by a skilled person once a year.
►Overhead mounting requires extensive experience, including amougst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the installation
yourself. Improper installation can result in bodily injury.
4.DMX-512 control connection
Connect the provided XLR cable to the male 3-pin XLR output of your controller and the other
side to the female 3-pin XLR input of the light.You can chain multiple lights together through
serial linking
The cable needed should be two core, screened cable with XLR input and output connectors.

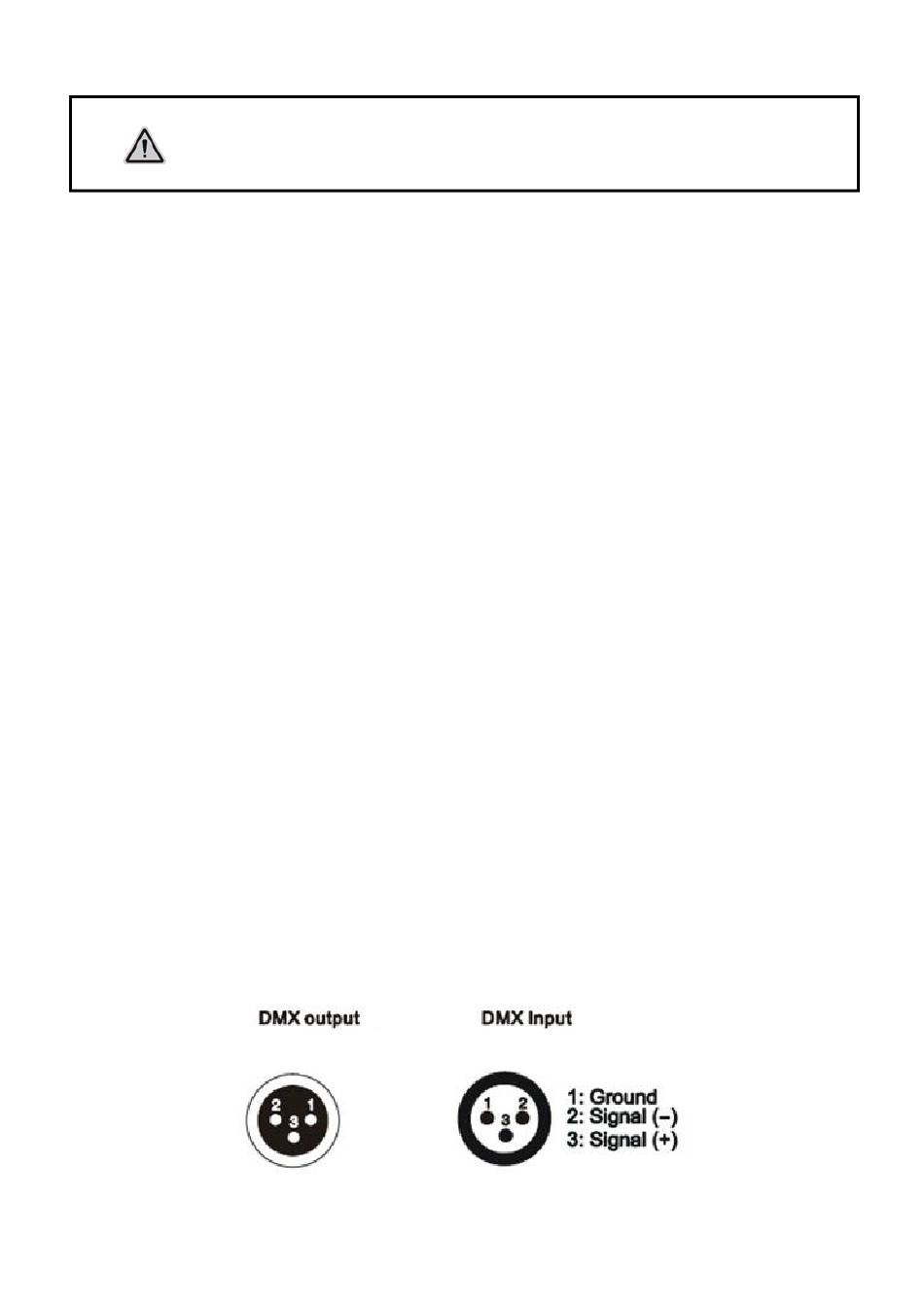

Please refer to the diagram below.
XLR Mounting socket
XLR Mounting plug
4
