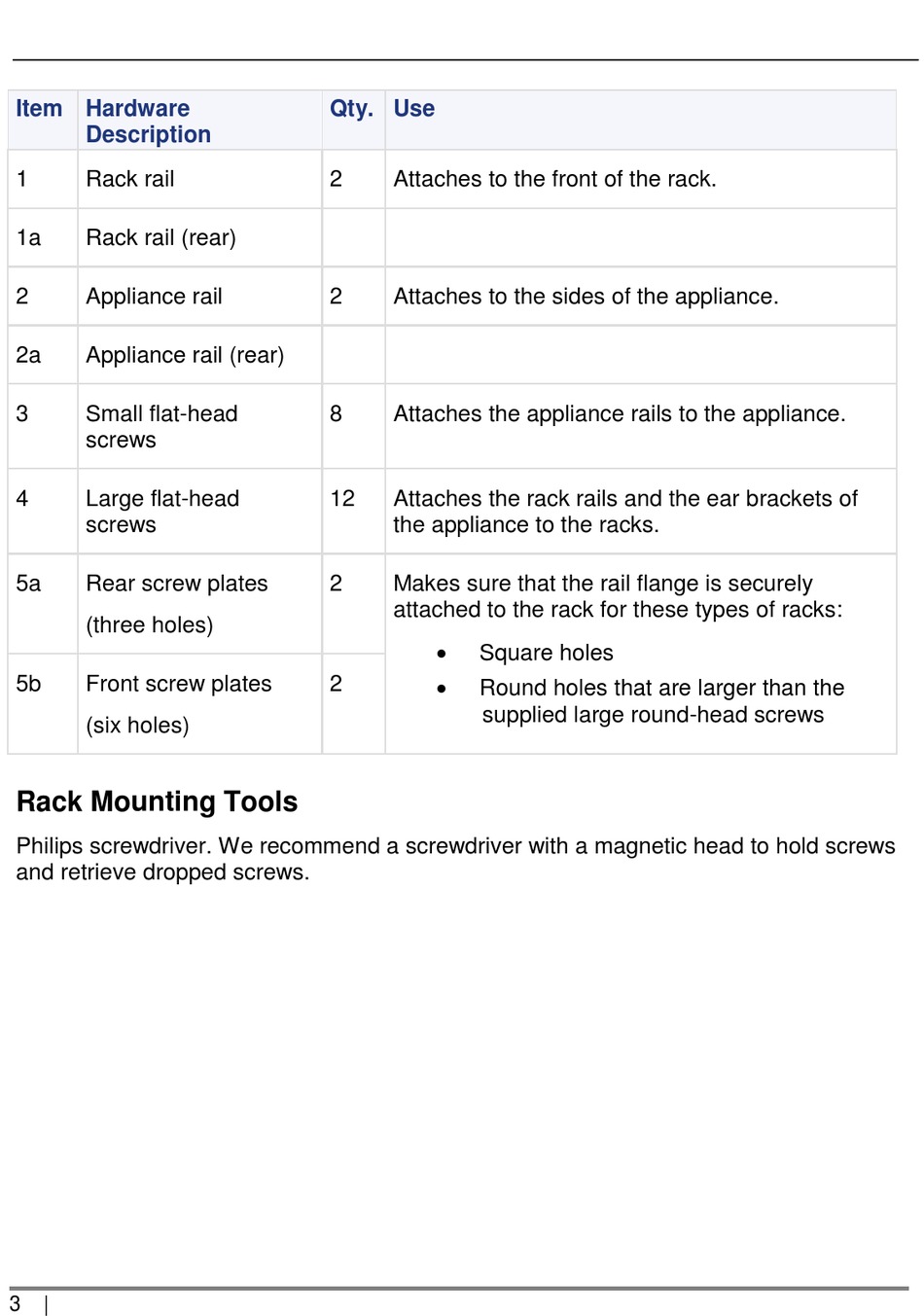

Check Point 21000 Mounting page 3

Item Hardware
Description
1 Rack rail
1a Rack rail (rear)
2 Appliance rail
2a Appliance rail (rear)
3 Small flat-head
screws
4 Large flat-head
screws
5a Rear screw plates
(three holes)
5b Front screw plates
(six holes)
Rack Mounting Tools
Philips screwdriver. We recommend a screwdriver with a magnetic head to hold screws
and retrieve dropped screws.
3 |
Qty. Use
2 Attaches to the front of the rack.
2 Attaches to the sides of the appliance.
8 Attaches the appliance rails to the appliance.
12 Attaches the rack rails and the ear brackets of
the appliance to the racks.
2 Makes sure that the rail flange is securely
attached to the rack for these types of racks:

Square holes

2
Round holes that are larger than the
supplied large round-head screws
