Check Point 21000 Mounting page 2

Note - You must use the screw plates to attach the rack rails to these types of
racks:

Square holes

Round holes that are larger than the supplied large round-head screws
Appliance Physical Specifications
These are the physical specifications of the Check Point appliance models that can be
mounted in the telescoping rails.
Appliance Width
21800, 21700, 17.24 in (43.8 cm)
21600 and
21400

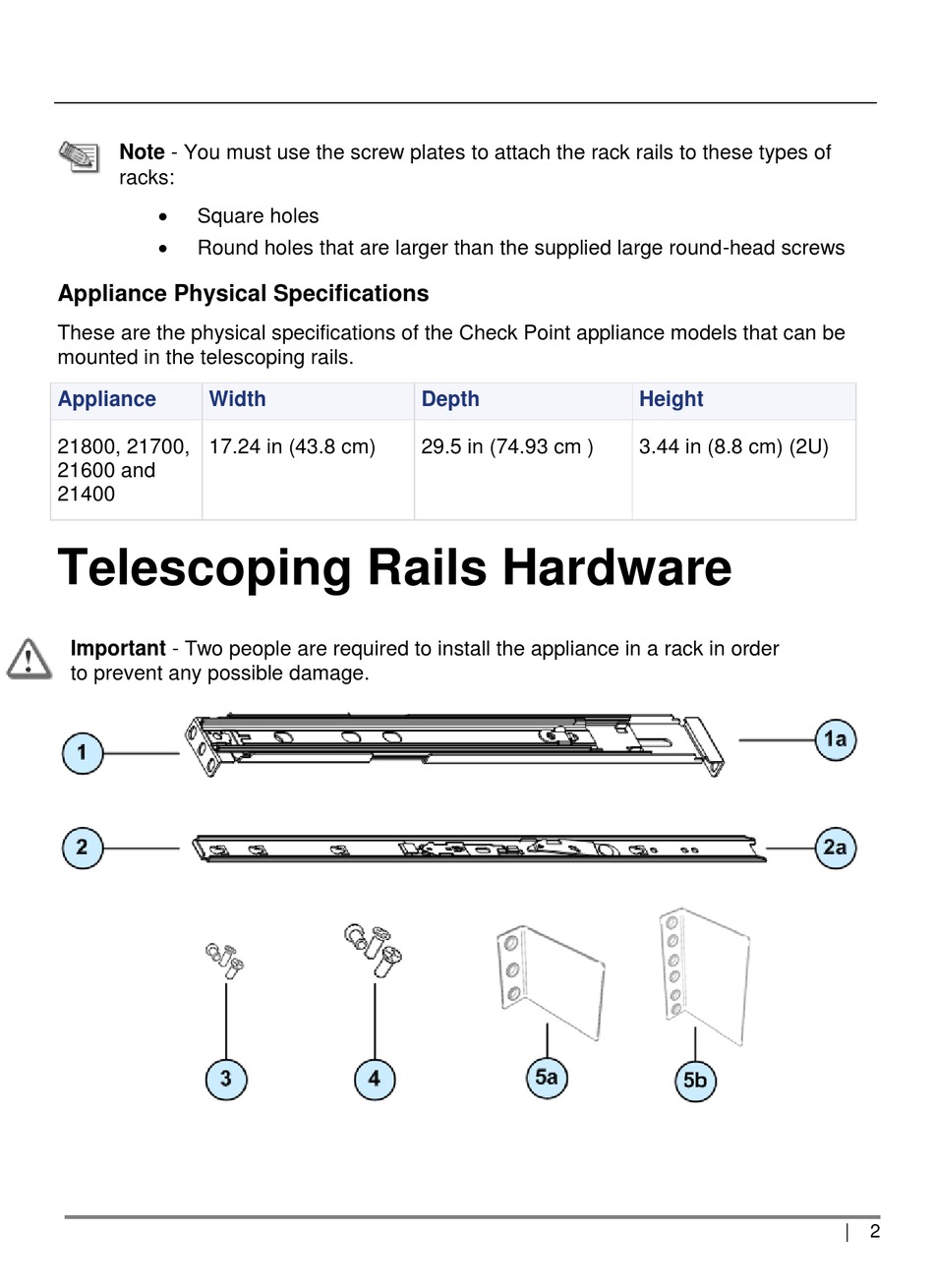

Telescoping Rails Hardware
Important - Two people are required to install the appliance in a rack in order
to prevent any possible damage.
Depth
29.5 in (74.93 cm )
Height
3.44 in (8.8 cm) (2U)
| 2
