Slide Rail Installation Instructions for the Check
Point 21400 Platform
Supports racks 29 - 37 inches in depthSlide Rail Kit

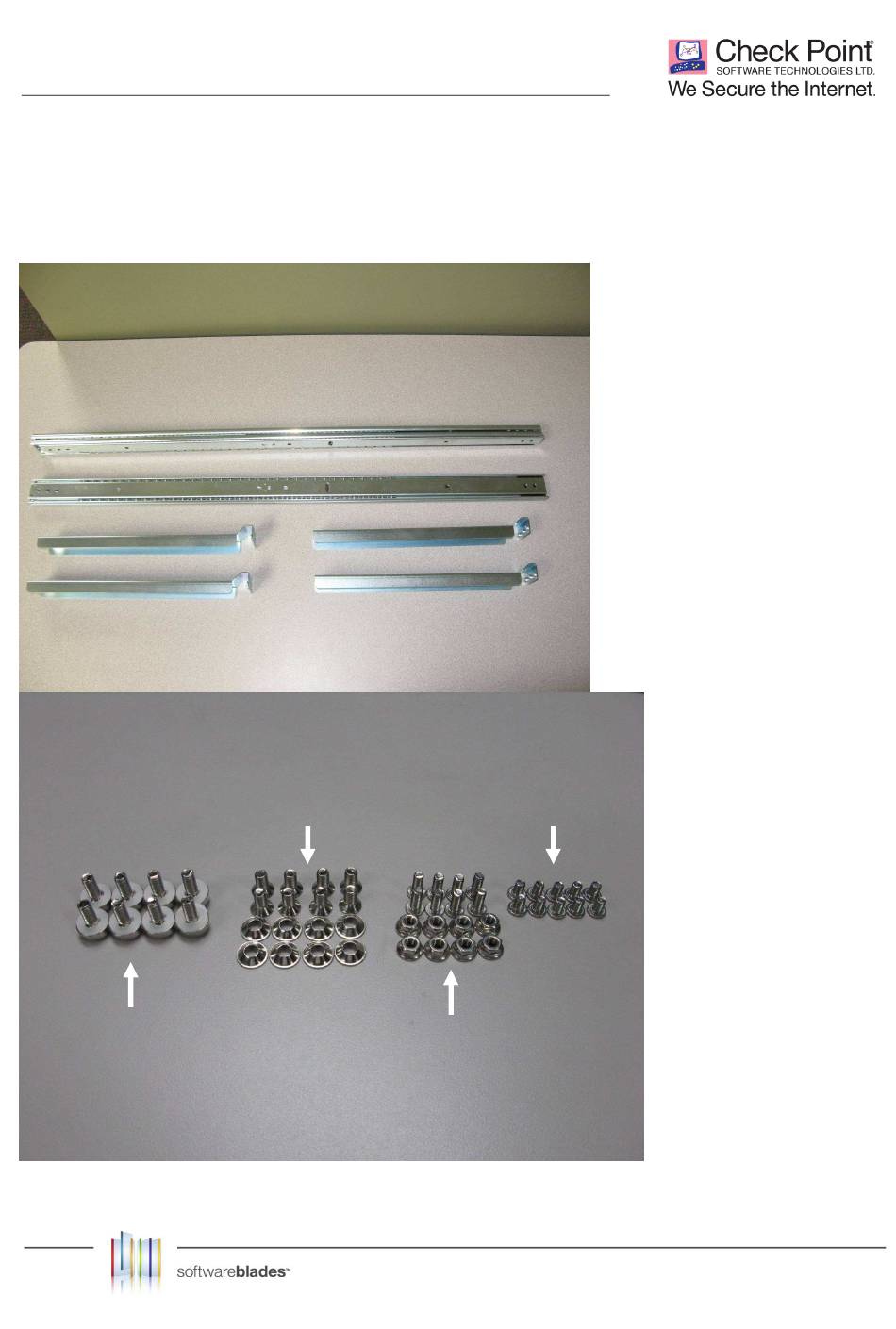

2 Slide Rails (includes Inner, Middle and Outer rail sections)
Screws/Washers for
mounting platform's
ear brackets to the
rack posts.
(4 typically required)
4 Rail Brackets
Screws/Washers for
mounting rail brackets
to rack posts
(8 pair required)
Screws for mounting
inner rail to chassis
(8/10) required
Screws/Nuts for
mounting brackets
to outer rail
(8 pair required)
©2010 Check Point Software Technologies Ltd. All rights reserved.
Classification: [Unrestricted] — For everyone
|
P.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Check Point 21400 Platform
Summary of Contents for Check Point 21400 Platform
- Page 1 (8 pair required) (8/10) required Screws/Washers for Screws/Nuts for mounting platform’s mounting brackets ear brackets to the to outer rail rack posts. (8 pair required) (4 typically required) ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
- Page 2 2. Align the screw holes (B) in the rail with the screw holes on the chassis, and fasten it with 4 x screws (C) 3. Repeat Steps 1 and 2 for the 2nd rail on other side of chassis ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
- Page 3 Using the inner hole will allow for mounting to shorter racks (29”). Inner Hole Location ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
- Page 4 These holes will provide access to the outer rail’s holes for adding the screws/nuts when securing rail bracket. Middle rail access holes Outer Rail mounting holes ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
- Page 5 Using this screw/nut pair, push screw from the inside, through the rail and bracket, and then partially tighten the nut. Using the inner hole will allow for mounting to shorter racks (29”). ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
-
Page 6: Installing The Outer Rail
Ensure that the middle rail slides smoothly out the front of the rack, before tightening the rail bracket to the rack. ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone... - Page 7 (If attaching rails to a 29 inch rack, there may not be enough space to slide the middle rail back. If so, the ear bracket of platform may not reach the front of rack.) ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
- Page 8 3. Using the 4 x screw/washer pairs, attach the rail to the rack as described on previous page. 4. Repeat Steps 1-3 for attaching the 2nd outer rail to other side of rack. Pre-measure inside depth of rack ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
- Page 9 3. Slide the chassis toward the rear of the cabinet until the rails lock together. 4. Press and hold down the finger tabs (A) on both middle extension locks while sliding the platform towards the rear. ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
- Page 10 5. Slide the platform into the rack until the platform’s ear brackets are against the rack’s front posts. 6. Use the screw/washer pair to secure platform to rack posts ©2010 Check Point Software Technologies Ltd. All rights reserved. Classification: [Unrestricted] — For everyone...
