Summary of Contents for CYP CH-2602TXWPUS

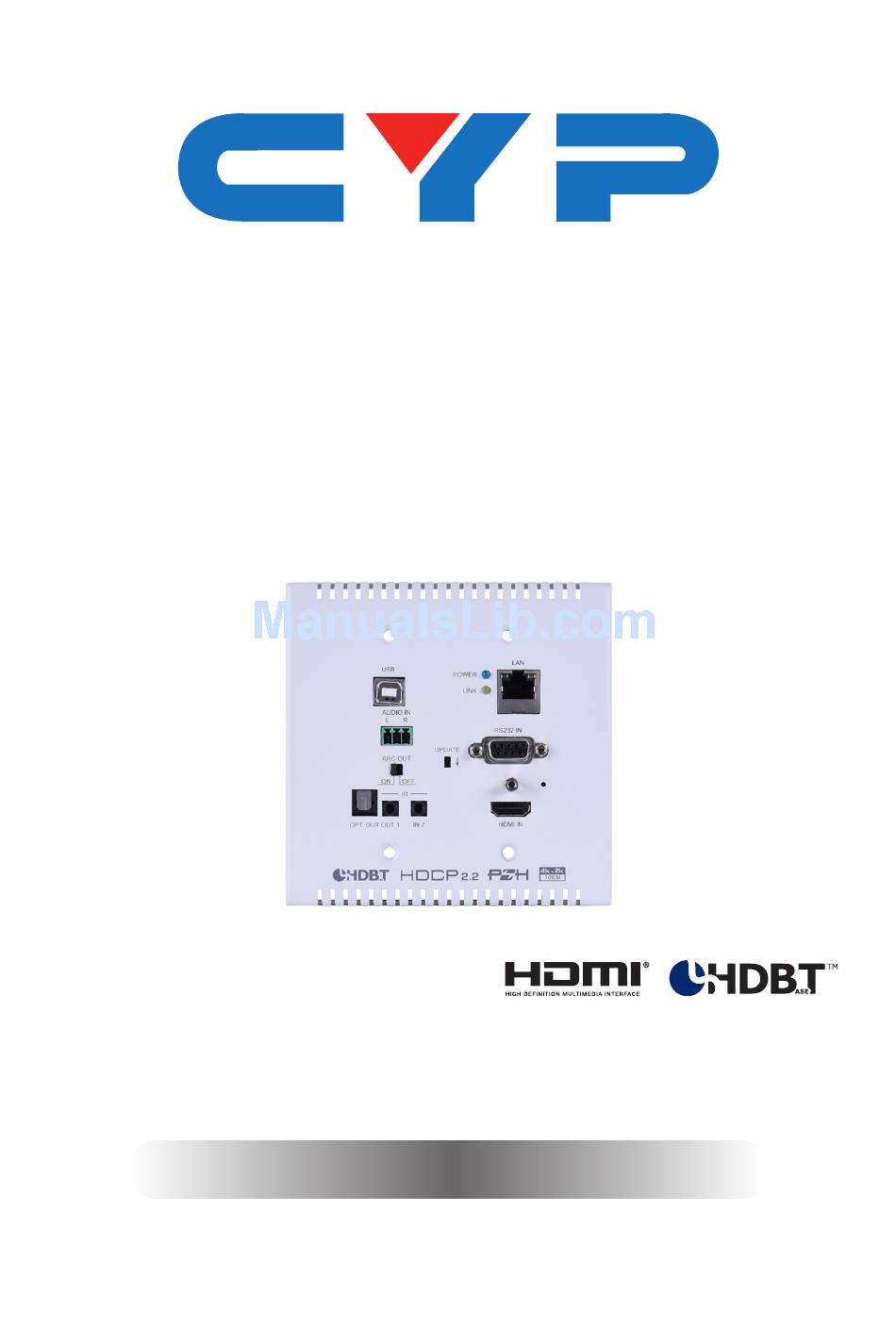

- Page 1 CH-2602TXWPUS HDMI over HDBaseT Transmitter (PD) with Optical Audio Return (OAR) Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........5 6.3 IR Cable Pin Assignment......6 7. -
Page 6: Introduction
1. INTRODUCTION This HDBaseT 2.0 Transmitter can send uncompressed UHD video and audio to a compatible Receiver over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, USB, RS-232 and IR ports. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI input source equipment such as media players, video game consoles, PCs or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended. -
Page 8: Operation Controls And Functions

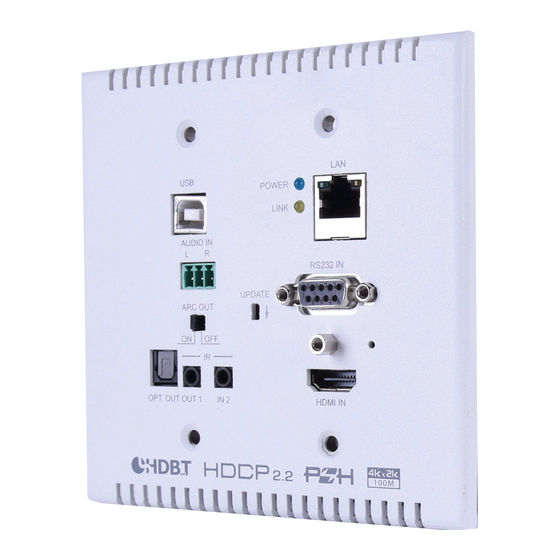

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LINK AUDIO IN RS232 IN UPDATE ARC OUT OPT. OUT OUT 1 IN 2 HDMI IN POWER LED: This LED will illuminate when the device is receiving power. UPDATE: This is reserved for firmware update use only. During normal operation the dipswitch should be set to the right. - Page 9 OFF no ARC audio will be passed. Note: When ARC is enabled the maximum supported HDMI cable length may vary. It is suggested to use cables under 2 meters long to ensure the best audio quality. OPT. OUT: Connect to an audio receiver or powered speaker set to reproduce the audio signal from the Receiver’s OPT.
-
Page 10: Rear Panel
6.2 Rear Panel CAT5e/6/7 OUT: Connect to the Receiver unit with a single Cat.5e/6/7 cable for transmission of all data signals. The yellow LED will illuminate to indicate a successful data connection between the Transmitter and Receiver. If the yellow LED blinks irregularly it indicates a data link error. -
Page 11: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Ground... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM IR In DVD/Blu-ray Player IR Out Analog HDMI 1.5m 60° Stereo Input 60° Input AV Receiver Internet Connected Router Optical Audio POWER Output LINK AUDIO IN RS232 IN (OAR) UPDATE RS-232 ARC OUT RS-232 Equipped PC/Laptop OPT. OUT OUT 1 IN 2 HDMI IN Power Supply... -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI, 1×USB 2.0 (Type B), 1×Stereo Audio (Terminal Block), 1×LAN (RJ45),1×IR Extender (3.5mm), 1×RS-232 (9-pin D-sub) Output Ports 1×Cat.5e/6/7, 1×Optical Audio (TOSLINK), 1×IR Blaster (3.5mm) Supported Resolutions 480i@60Hz - 4K@60Hz (4:2:0, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:2:0, 8-bit) -
Page 14: Acronyms
Power Consumption 16.72W (PoH) 9. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared Local Area Network LPCM Linear Pulse-Code Modulation Personal Computer Powered Device Power over HDBaseT Power Source Equipment Ultra-High-Definition Universal Serial Bus Video Graphics Array (640×480@60Hz) - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
