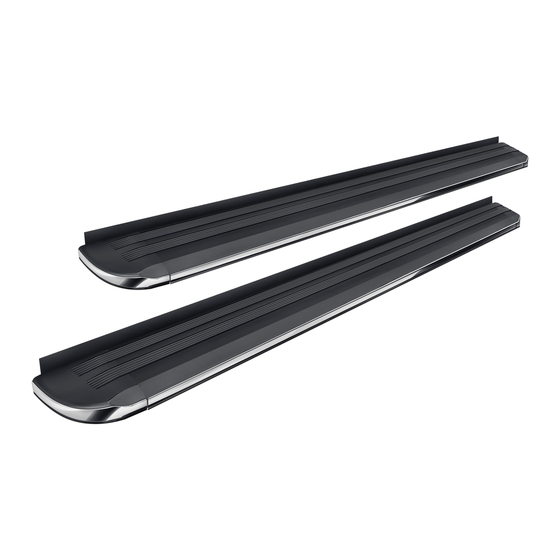

- Page 1 EXCEED RUNNING BOARD FOR 2020 KIA TELLURIDE INSTALLATION INSTRUCTIONS PREMIUM RUNNING BOARD FOR 2020 KIA TELLURIDE PART # EX-K376 Page 1 of 5 4/23/20 (AL)
- Page 2 EXCEED RUNNING BOARD FOR 2020 KIA TELLURIDE PARTS LIST: Driver/Left Running Board 10mm Plastic Retainers Passenger/Left Running Board 10mm x 30mm OD x 2.5mm Flat Washers Driver/Left Front Mounting Bracket 10mm Nylon Lock Nuts Passenger/Right Front Mounting Bracket 8-1.25mm x 25mm Hex Bolts Driver/Left Front Support Bracket 8mm x 24mm OD x 2mm Flat Washers Passenger/Right Front Support Bracket...
- Page 3 EXCEED RUNNING BOARD FOR 2020 KIA TELLURIDE 9. Move to the rear mounting location. Repeat Steps 4 & 5 to attach the Driver/Left Rear Mounting Bracket, (Figures 10—12). Do not tighten hardware. 10. Select the Driver/Left side factory plastic covers. Hold up each cover to the mounting locations. Mark and cut each plastic cover along the marks to allow Brackets clearance.
- Page 4 EXCEED RUNNING BOARD FOR 2020 KIA TELLURIDE Driver/Left Side Installation Pictured 10mm Bolt Plate 10mm Plastic Retainer 10mm Flat Washer 10mm Nylon Lock Nut Front Front (Fig 4) Insert (1) 10mm Bolt Plate into the inner hole. Thread (1) 10mm Plastic Retainer onto the Bolt Plate to hold it in place Front (Fig 5) Attach the Driver/Left Front...
- Page 5 EXCEED RUNNING BOARD FOR 2020 KIA TELLURIDE Driver/Left Side Installation Pictured Front (Fig 8) Insert (1) 10mm Bolt Plate into the center hole. Thread (1) 10mm Plastic Retainer onto the Bolt Plate to hold it in place 10mm Bolt Plate 10mm Plastic Retainer 10mm Flat Washer 10mm Nylon Lock Nut...
- Page 6 EXCEED RUNNING BOARD FOR 2020 KIA TELLURIDE Driver/left Side Installation Pictured 10mm Bolt Plate 10mm Plastic Retainer 10mm Flat Washer 10mm Nylon Lock Nut Rear (Fig 11) Attach the Driver/Left Rear Mounting Bracket to the Bolt Plate Rear (Fig 12) Driver/Left Rear Mounting Bracket attached to the rear mounting location Front (2) 6mm T-Bolts...
