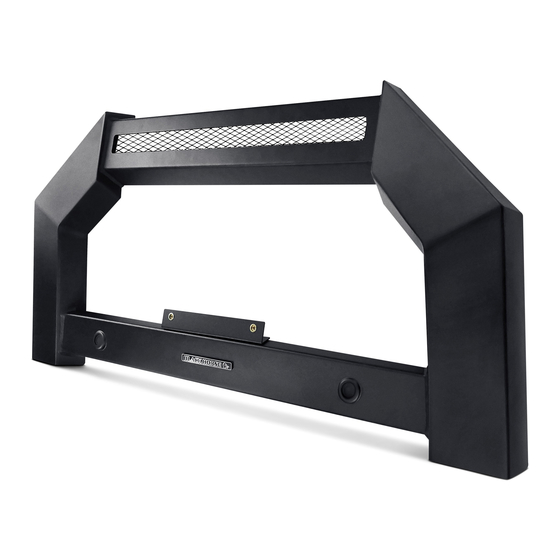

- Page 1 TEL：1-866-XANATOS INSTALLATION INSTRUCTIONS ARMOUR BULL BAR WITH LED LIGHT 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) PART# AB-GM27...
- Page 2 ARMOUR BULL BAR WITH LED LIGHT for 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) PARTS LIST: Bull Bar 8mm Nylon Lock Nuts Driver/Left Side Bull Bar Bracket 8-1.25mm x 20mm Hex Bolts Passenger/Right Side Bull Bar Bracket 8-1.25mm x 16mm Hex Bolts Driver/Left Side Light Bar Bracket 8mm x 24mm x 2mm Flat Washers Passenger/Right Side Light Bar Bracket...
- Page 3 ARMOUR BULL BAR WITH LED LIGHT for 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) Page 2 of 6 12/12/19...
- Page 4 ARMOUR BULL BAR WITH LED LIGHT for 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) PROCEDURE: REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY. CUTTING MAY BE REQUIRED. INSTALLATION MAY INTERFERE WITH FRONT MOUNTED SENSORS. NOTE: It may be necessary to remove/relocate front license plate and license plate bracket.
- Page 5 ARMOUR BULL BAR WITH LED LIGHT for 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) 10. Models with sensors only: Select (1) Rubber Grommet. Slide the Grommet over the small male plug on the Wiring Extension, (Figure 16). Push the Grommet into the hole in the bumper. Plug the Extension into the factory wiring harness for the sensor.
- Page 6 ARMOUR BULL BAR WITH LED LIGHT for 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) Driver Side Installation Pictured Remove the factory tow hook and hardware. Tow Fig 1 hook will not be reinstalled (Fig 2) Remove the tow hook and hardware, (Driver/left tow hook pictured from below bumper) Mounting holes in end of frame for tow hook...
- Page 7 ARMOUR BULL BAR WITH LED LIGHT for 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) Driver Side Installation Pictured (Fig 7) (Fig 6) Driver side Mounting Bracket with Double Bolt Plate (2) 6mm Combo Bolts (1) 8mm x 20mm Hex Bolt (2) 8mm Flat Washers (1) 8mm Lock Washer (1) 8mm Hex Nut...
- Page 8 ARMOUR BULL BAR WITH LED LIGHT for 2020 Chevy Silverado/GMC Sierra 2500/3500 (W/ ParkingSensor) Driver Side Installation Pictured Front (Fig 13) Remove silicone seal from sensor. Slide large Seal over end of sensor (arrow) (Fig 12) Attach Sensor Plug into Sensor Sleeve Front (2) 10mm x 25mm Hex Bolts (2) 10mm Lock Washers...
