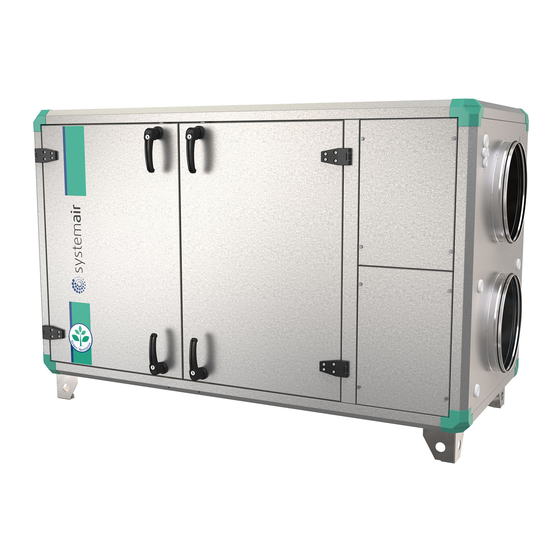

SystemAir Topvex SR03 Operation And Maintenance Instructions
Compact air handling unit
Hide thumbs
Also See for Topvex SR03:
- Installation instructions manual (28 pages) ,
- Operation and maintenance (32 pages) ,
- Operation and maintenance instruction (20 pages)
Related Manuals for SystemAir Topvex SR03
Summary of Contents for SystemAir Topvex SR03

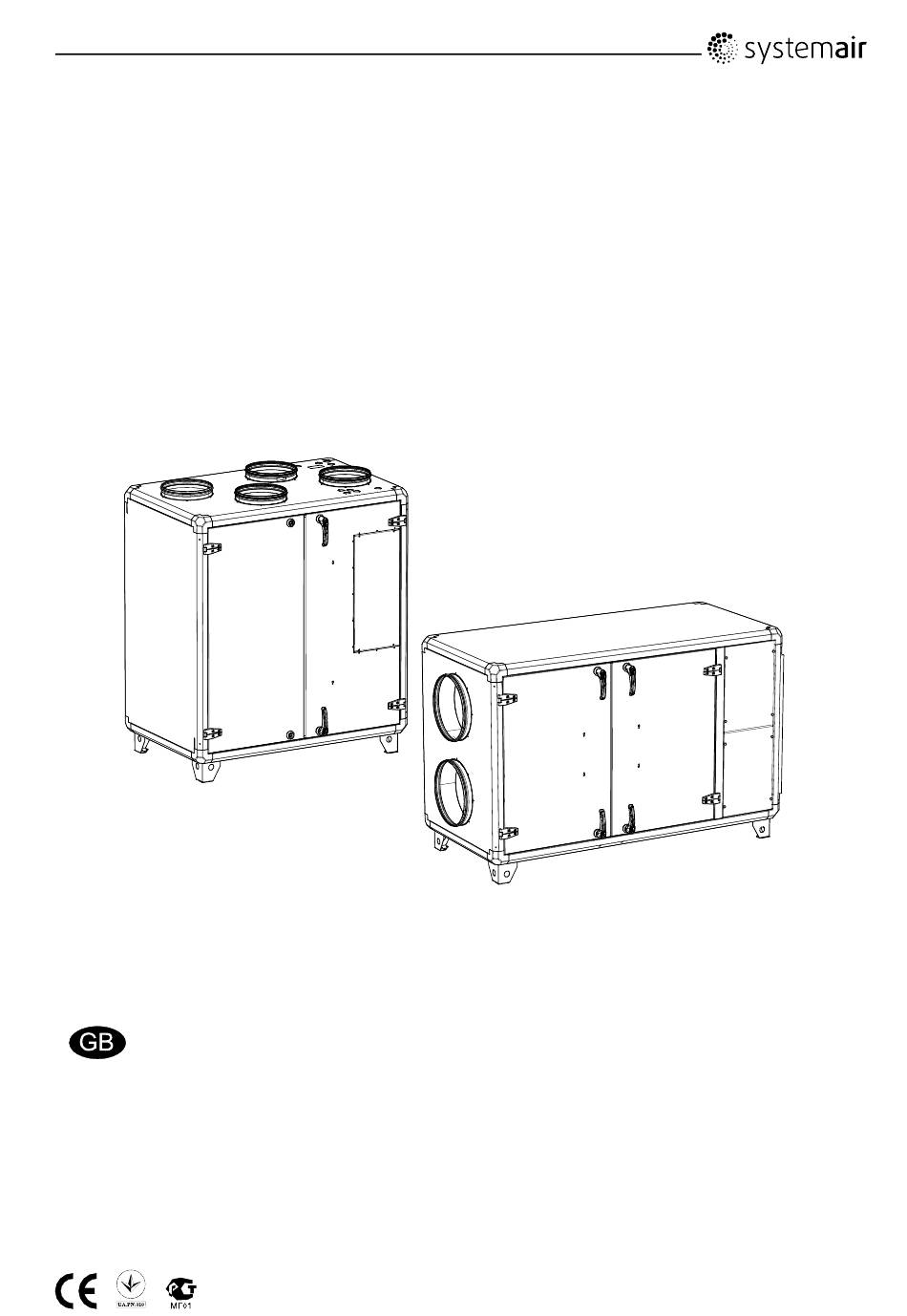

- Page 1 Topvex SR/TR03, SR/TR04, SR/TR06 Compact Air Handling Unit Operation and Maintenance Instructions 206902-EN_GB Document in original language 02-04-2014 A005...
-
Page 2: Table Of Contents
Contents 1 Warnings........................... 1 2 Product Description........................2 2.1 Internal components Topvex SR 03–06 ................2 2.2 Internal components Topvex TR 03–06 ................3 2.3 Description of Internal components..................4 2.3.1 Supply and Extract air Fans ..................4 2.3.2 Supply and Extract air Filters ................... 4 2.3.3 Heat Exchanger ...................... -
Page 3: Warnings
Children should be supervised so that they can not play with the product. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 4: Product Description
Pressure guard Filters Temp. sensor outdoor air Electrical re-heater battery Electrical connection box Only valid for units with Constant Air Volume control (CAV) Only valid for units with electrical re-heater battery Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 5: Internal Components Topvex Tr 03-06
Temp. sensor Extract air Temp. sensor Supply air Electrical connection box Electrical re-heater battery Only valid for units with Constant Air Volume control (CAV) Only valid for units with electrical re-heater battery Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 6: Description Of Internal Components
2.3.4 Temperature sensors 4 temperature sensors (PT1000) are included in the unit from factory: • Supply air sensor • Extract air sensor • Outdoor air sensor • Exhaust air sensor Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 7: Water Heating Battery
• All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. Fig. 3 Reset of the manual over heat protection in Topvex SR 03–06. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 8: Internal Components Electrical Connection Box
Contactor (K2) On/Off Pump control water (HW units only, not present in EL-units) Automatic fuse Electric heater frame Automatic fuse for heater Contactor (K3) for on/off control of EL heater Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 9: Interface Description
Mounting holes. Connection block. Connection to bown cable. Connection to yellow cable. Connection to white cable. Connection to black cable. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 10: Commissioning
Shows the actual extract air temperature Actual:..ºC Set the extract air set point. Default is 18°C (logon Setp.: 18 ºC to service level needed, code 2222, to change default setting) Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... - Page 11 See below menu overviews that display the available menus in the Operator level followed by the “Service level” manual. To enter Service level use code 2222 in the “Access rights” menu. For operator level use code 1111. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
-
Page 12: Menu Overview
Status of the support control function. Active: Status of the demand ventilation CO2/VOC active (CO2/VOC) function. Never Status of the fire damper Fire damper function function. Not active Operation when alarm Stopped Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... - Page 13 Setp: 18ºC supply air controller’s set point value. Frost Actual water temperature in the protection water heating battery. (Only visible for HW units). Actual: ºC Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 14 Shows the actual airflow compensation. Flow control Airflow for the extract air fan (constant airflow control). Actual: + INF Only visible if the unit is m³/h configured for Flow control. Setp.: m³/h Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 15 Pressure The actual external pressure control EAF and set point for the extract air fan. Actual: Only visible if the unit is Setp.: configured for "Pressure control" (VAV). Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 16 Per 2: day. 00:00–00:00→ 00:00 24:00 for continuous Reduced Speed running. 00:00 00:00 Monday-Friday inactivates the period. Per 1: Note the settings in the 00:00–24:00 commissioning record. Per 2: 00:00–00:00 Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 17 Since leaving any of the outputs in manual control will disrupt the normal control, an alarm will be generated as soon as any output is set to a manual mode. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 18 Set the pump control for a P1–Exchanger possible run around coil to Auto, On or Off Auto P1–Cooling Set the pump control for the cooling coil to Auto, On or Off Auto Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 19 See Corrigo E ventilation manual for more information. Shutdown mode Set P-band and I-time for the Shutdown function P-band: 100.0°C Note: I-time: 100.0 See Corrigo E ventilation manual for more information. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 20 In this menu, it is possible to restore all parameters to their settings: factory settings or to the user settings they were saved as Restore user earlier. settings: Select Yes or No Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 21 → Set parameters for pump P1–Heating control. Pump control P1–Cooling If, for any of the control circuits, no output is configured for pump control these settings will be ignored. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 22 Outdoor sensor Set if the outdoor sensor is placed in placed in the intake duct or not. intake channel Choose between No and Yes (intake duct) Preset is No. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 23 Activate the fire damper Fire alarm input exercising, choose between No, Yes unit running or Normally open Yes unit stopped. Damper exercise Set the parameters for damper exercise in the submenu. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
- Page 24 → Change Change password Set a new password for the password level of your choice. level:None Can only be done once logged on to the service level. New password xxxx Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
-
Page 25: Free Cooling Description
• Although the Mains supply to the unit has been disconnected there is still risk for injury due to rotating parts that have not come to a complete standstill. • Beware of sharp edges during mounting and maintenance. Use protective clothing. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 26: Maintenance Intervals
Cleaning the heat exchanger Cleaning the fans Cleaning extract louvres and supply air diffusers Cleaning the outdoor air intake Cleaning the duct system Or in accordance with local rules and regulations Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 27: Maintenance Instructions
The bag filter cannot be cleaned and must be changed when necessary. New filters can be ordered from Systemair. Operation time between filter changes depends on the air pollution at the installation site. A differential pressure switch indicates when it’s time to change the filters. This will trigger an alarm in the control panel. -
Page 28: Checking The Fans
By large discrepancies each rod needs to be measured . The automatik safety function needs to be tested and verified. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... -
Page 29: Cleaning Extract Louvres And Inlet Diffusers
“right way round”. 5.4 Troubleshooting Should problems occur, please check or correct the following before contacting your service representative. Always check if there are any alarms active in the control panel. Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902... - Page 30 (shows as Fan alarm in the control panel). 4. Noise/vibrations • Check that the unit is completely leveled • Clean the fan impellers • Check that the screws holding the fans are tightened properly Topvex SR/TR03, SR/TR04, SR/TR06 Operation and Maintenance Instructions Systemair AB 206902...
-
Page 31: Alarms
16kW S e ria l. n o : 1234/567891-0001/140214 Syst e ma ir AB Indus trivä ge n 3 SE-7 3930 S kinns ka tte be rg www .systemair .com S we de n Fig. 10 Type label Position Description... - Page 32 Systemair AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com 206902...
