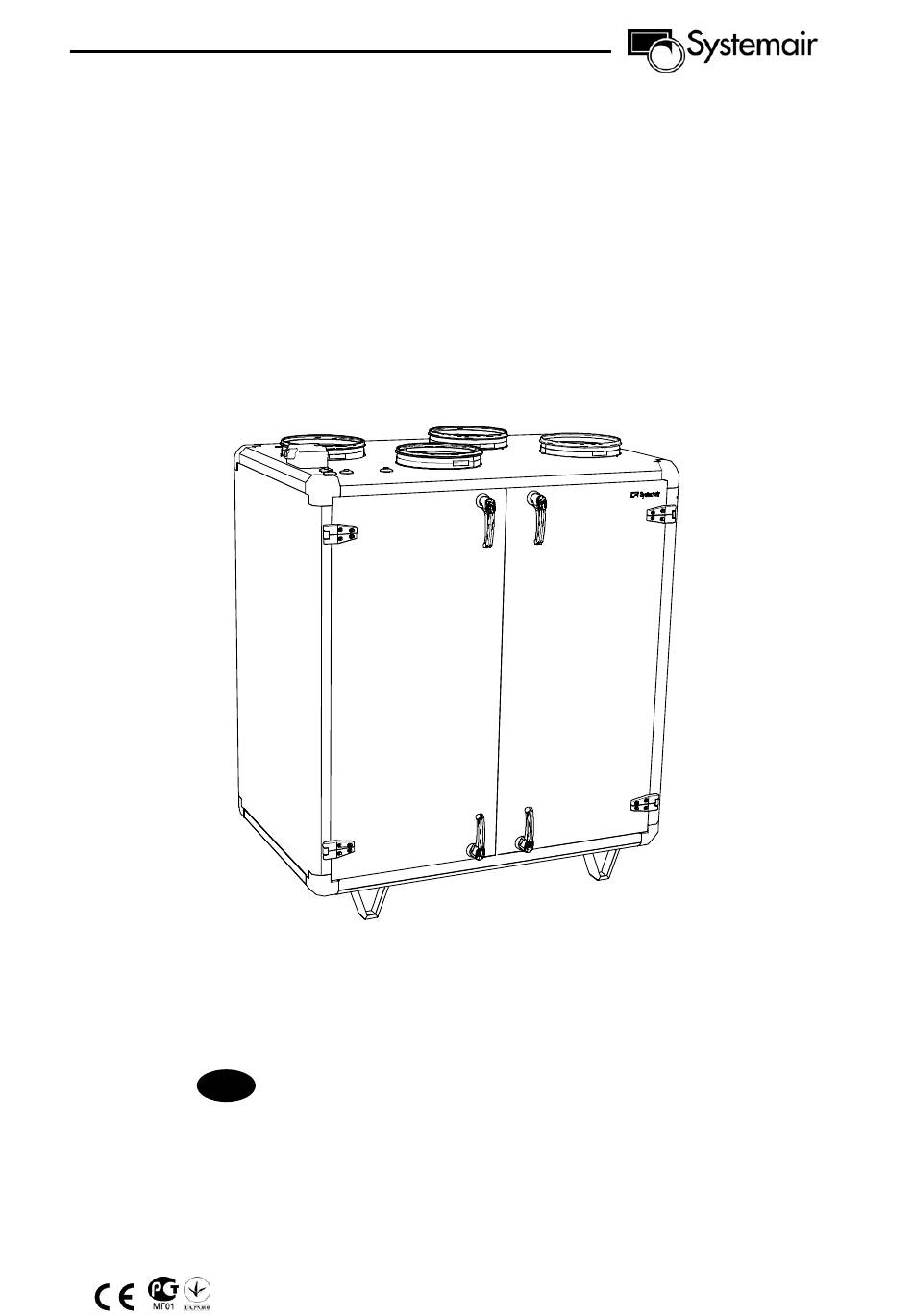

- Page 1 Topvex TR 03, TR04, TR06 Compact Air Handling Unit Operation and Maintenance instructions Corrigo ver. no. 1.2-1-00...
- Page 2 Description Connection Supply air Connection Extract air Connection Exhaust air Connection Outside air Supply air filter (Topvex TR 04) Supply air filter (Topvex TR 03, 06) Safety switch Filter, extract air Reset button, over heat protection Connection box Heat exchanger...
- Page 3 Write enable LED Orange cable OK button Red cable Clearing button Brown cable Mounting holes Black cable Fig. 3 Fig. 4 TYPE: Topvex ____ R __-R Art.Number: _______ Fig. 5 Fig. 6 _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
- Page 4 Installation, operation and maintenance manual concerns air handling unit type Topvex, manufactured by Systemair AB. It consists of basic information and recommendations concerning the design, installation, start-up and operation, which shall be obeyed to ensure the proper fail-free operation of the unit.
-
Page 5: Operation
The OK button is used to confirm the choice of a parameter setting. The C button is used to abort an initiated parameter change and restore the original value. The ALARM button is used to access the alarm list. _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB... - Page 6 Outdoor air sensor interruption. Alarm output all alarms DO5 Gives a signal (24V AC) whenever there is an A or B-alarm. Internal backup battery Shows “Internal battery error” in the display error _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
-
Page 7: Control Unit, Manual
Activating extended running can be done by pressing the OK button in sub menu Extended/forced running (user level) or by using an external Timer or a Push button. Set the minutes to 0 when using a Timer. _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB... - Page 8 Set how the unit should operate if the fire alarm function is activated, run on High fan-speed or Shut off. Preset is: Shut off. Function: Decides how the unit should operate at fire alarm. _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
- Page 9 DI5: Is only shown when the Fire function is activated. DI5: Fire alarm. Connects to an external fire central. Stops the unit or changes the fan speed to High if the alarm is activated. _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
- Page 10 High: 100% (changeable 0-100%) Medium: 50% (changeable 0-100%) Low: 5% (changeable 0-100%) 2. Type of heater (choose correct type of heater) 3. Control parameters P-band: 30°C (changeable) I-Time: 100s (changeable) _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
- Page 11 Note: A short cut to the menu language is by pressing the OK button at the same time as the main voltage is switched on. Set a new code for Service level. Change codeword _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
-
Page 12: Maintenance
The bag filter cannot be cleaned and must be changed as necessary. New filters can be ordered from Systemair. Operation time between filter changes must be re-set after filter change, see page 8 Filter alarm. To change the alarm activating time, see page 8 Filter alarm. -
Page 13: Troubleshooting
Check if the fan thermo contact has tripped, shows as Fan alarm in the control panel. If necessary, reset it (see page 3 Alarms). 4. Noise/vibrations Clean fan impellers. Pull the fans out and check that the 2 screws holding the fans are tightened. _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB... - Page 14 NB! The potentiometers are meant to be used for commissioning of the unit to ensure a proper pressure balance between extract and supply inside the Topvex unit. Explanation SF: Supply fan EF: Extract fan fig. 7 _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
-
Page 15: Commissioning Record
Running times (On) Monday Tuesday Wednesday Thursday Friday Saturday Sunday Running mode On: , Medium , High (remaining time): Running mode Off Shut off , Low , Medium , High _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB... - Page 16 Fire function Not active Active Status Running mode at activated Unit shut off High fan speed fire alarm *) Set the minutes to 0 when using an external Timer. Notes _____________________________________________________________________________________________________ Topvex TR03-06 Operation and Maintenance instructions 205353 Systemair AB...
- Page 17 Systemair AB reserves the rights at any time, without prior notice, make changes and improvements to the contents of this manual. Systemair AB Industrivägen 3 739 30 Skinnskatteberg Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com 205353 (14-04-2010)
