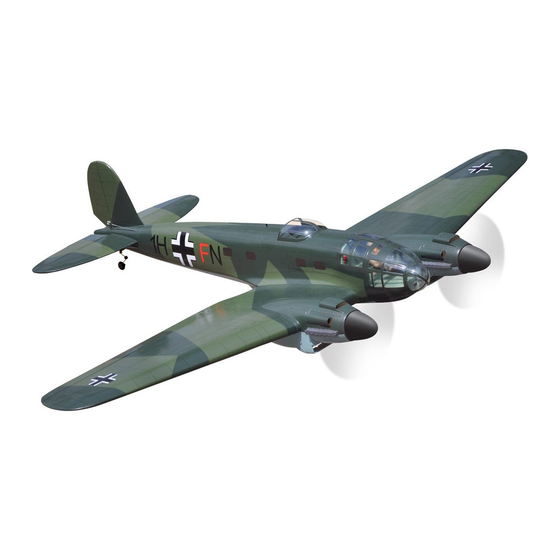

SPECIFICATION
1 Wingspan : 1,750mm
1 Length
1 Weight
Parts listing required (not included):
1 Radio
1 Servo
1 Engine :
1 Electric Motor : OMA - 3820 - 1200(2pcs)
1 Battery: 3 - 4CELLS-LIPO - 11.1V-14.8V - 3,250 mAh (2 Packs).
1 Speed control : 60 A (02pcs).
1 Propeller: 10 x 5.
Instruction Manual book
68.90 in.
: 1,280 mm
50.39 in.
: 3.2 - 3.5 kg
7.04 -7.7 lbs.
: 06 channels.
: 07-09 size (29x13x30)mm.
25 -2 stroke (02PCS).
ITEM CODE: BH143.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEINKEL HE 111 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model HEINKEL HE 111

Summary of Contents for Black Horse Model HEINKEL HE 111

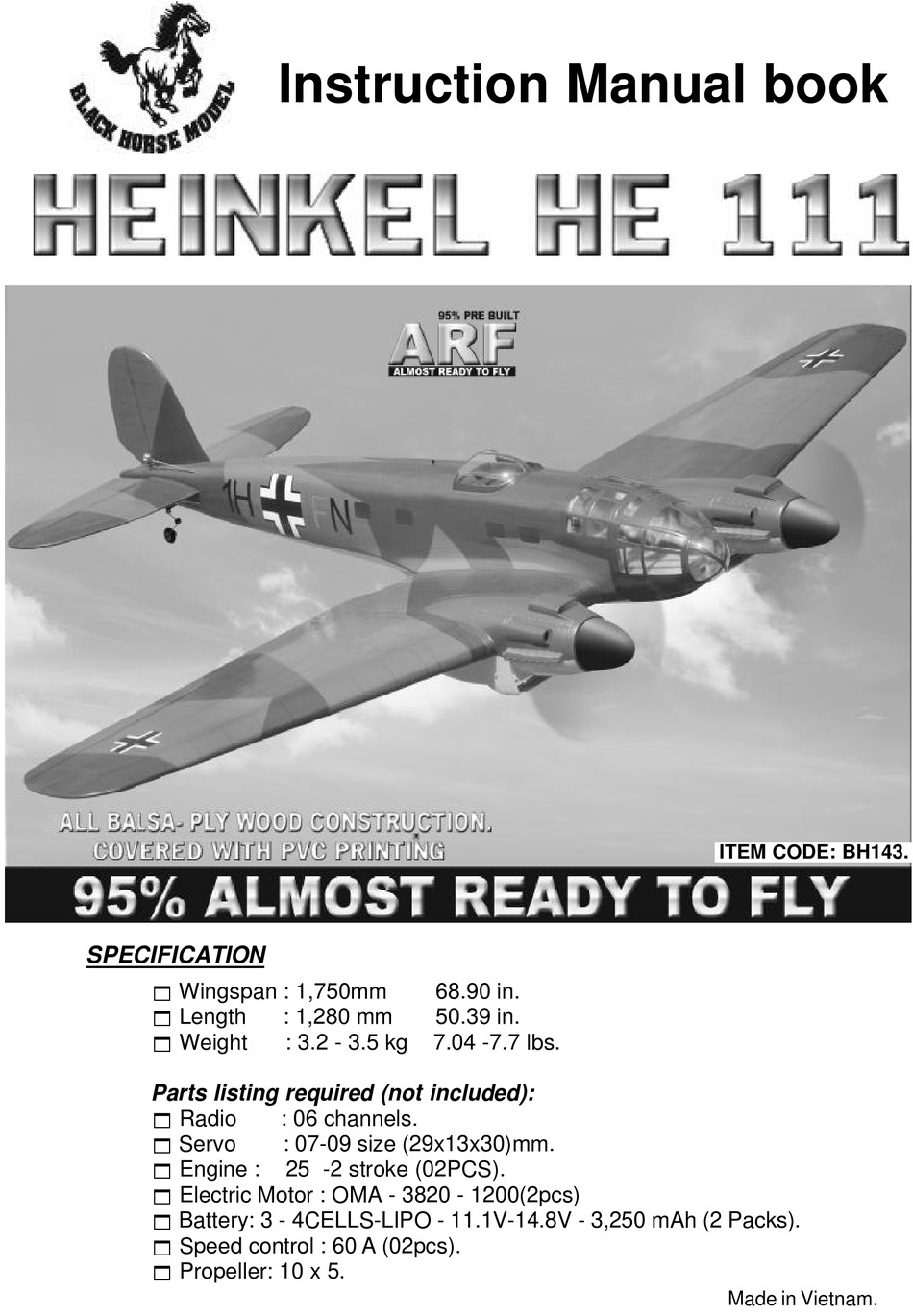

  • Page 1 Instruction Manual book ITEM CODE: BH143. SPECIFICATION 1 Wingspan : 1,750mm 68.90 in. 1 Length : 1,280 mm 50.39 in. 1 Weight : 3.2 - 3.5 kg 7.04 -7.7 lbs. Parts listing required (not included): 1 Radio : 06 channels. 1 Servo : 07-09 size (29x13x30)mm.
