USER MANUAL

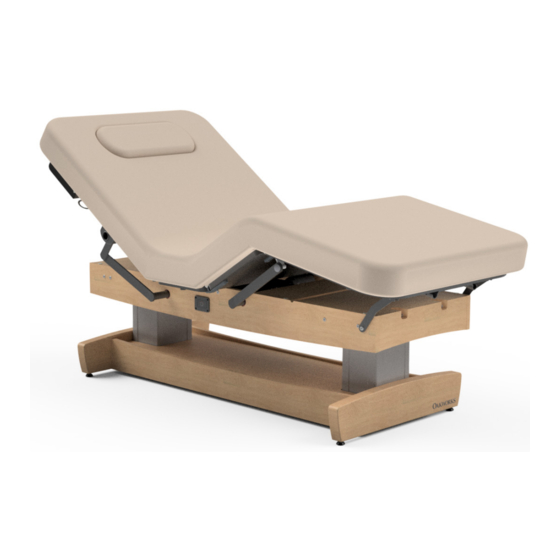

4-Section Electric Salon Top
Shown with optional Adjustable
Breast Comfort System
1-Section Flat Top
Shown with optional Adjustable
Breast Comfort System
www.OAKWORKS.com · 717.235.6807
PerformaLift
Series
2-Section Lift-Assist Backrest Top
Shown with optional Adjustable
Breast Comfort System
made in the USA
with US & imported parts
™
Advertisement
Table of Contents
Related Manuals for OAKWORKS PerformaLift Series
Summary of Contents for OAKWORKS PerformaLift Series
- Page 1 Shown with optional Adjustable Breast Comfort System 2-Section Lift-Assist Backrest Top Shown with optional Adjustable Breast Comfort System 1-Section Flat Top Shown with optional Adjustable Breast Comfort System made in the USA with US & imported parts www.OAKWORKS.com · 717.235.6807...
- Page 2 OAKWORKS , Inc. consequential damages in ® connection with or arising out of the furnishing, performance, or use OAKWORKS is a registered of this document and the program ® trademark of OAKWORKS , Inc. material which it describes. ®...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description......................1 Important Safety Instructions Symbol Identification ..................... 1 Safety Instructions ...................... 1-2 Product Description & Photo 4-Section Electric Salon ....................3 2-Section Lift-Assist Backrest ..................4 1-Section Flat Top ......................5 Installation Grounding ........................6 Directions for Use Foot Control Operations Electric Salon Tables Only ................... -
Page 4: Product Use Description
There are no known contraindications to the use of this equipment. The Performalift Series should not be used in any other manner than that described within this manual. Use of any unnecessary force or unauthorized procedures could result in injury to practitioner, client or equipment. - Page 5 3. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807. 4. Keep the cord away from heated surfaces.
-
Page 6: Product Description & Photo
PRODUCT DESCRIPTION PerformaLift ™ 4-Section Electric Salon Optional ABC Pad Optional Integrated Heated Top Control Switch STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 21”-37” (54-94 cm.) Height Range Adjustable Breast Comfort System Powered ±15º Trendelenburg/ Reverse Wood Finishes Motion 2 Trendelenburg Locking Casters Motion 3 Powered 0-70º... -
Page 7: 2-Section Lift-Assist Backrest
PRODUCT DESCRIPTION PerformaLift ™ 2-Section Lift-Assist Backrest Optional ABC Pad Optional Integrated Heated Top Control Switch STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 21”-37” (54-94 cm.) Height Range Adjustable Breast Comfort System Motion 2 Powered ±15º Trendelenburg/ Reverse Wood Finishes Trendelenburg Locking Casters Motion 3 Manual 0-80º... -
Page 8: 1-Section Flat Top
PRODUCT DESCRIPTION PerformaLift ™ 1-Section Flat Top Optional ABC Pad Optional Integrated Heated Top Control Switch STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 21”-37” (50-90 cm.) Height Range Adjustable Breast Comfort System Powered ±15º Trendelenburg/ Reverse Wood finishes Motion 2 Trendelenburg Locking Casters Foot Control All powered motions... -
Page 9: Installation
INSTALLATION All tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (see Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 10: Directions For Use
Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The Oakworks Performalift Electric Salon Tables offer trendelenburg, height, backrest and footrest ®... -
Page 11: Foot Control Operations
For Lift-Assist Backrest Tables; Do not sit on backrest section. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The Oakworks Performalift Lift-Assist Backrest and Flat Top tables offer trendelenburg and height ®... -
Page 12: Adjustable Breast Comfort (Abc) Systems Only
CAUTION ABC System. Only use as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The Oakworks Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts ® and pectoral muscles, allowing the client to relax and create a more comfortable position for their spine. -
Page 13: Electric Salon Tables Only
Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The Oakworks Performalift Electric Salon Tables offer trendelenburg, height, backrest, and footrest ®... -
Page 14: Hand Control Operations
For Lift-Assist Backrest Tables; Do not sit on backrest section. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The Oakworks Performalift Lift-Assist Backrest and Flat Top tables offer trendelenburg and height ®... -
Page 15: Adjustable Breast Comfort (Abc) Systems Only
CAUTION ABC System. Only use as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The Oakworks Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts ® and pectoral muscles, allowing the client to relax and create a more comfortable position for their spine. -
Page 16: Moving The Table
DIRECTIONS FOR USE MOVING THE TABLE Before moving the table, disconnect the power cord from the power outlet. The table weighs as much as 250 lbs. (113 kg.) Never lift the table by grasping the table top. CAUTION You could damage the table and the electronics that run the tabletop. Four people are required to move the table safely. -
Page 17: Adjustable Breast Comfort (Abc) System
ABC System. Only use as intended. For safety of your client, use a cloth sheet between the ABC System and your client. The Oakworks Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts and pectoral ®... -
Page 18: Quicklock Face Rest
DIRECTIONS FOR USE QuickLock FACE REST: (ACCESSORY OPTION) • Do not put excessive weight or pressure on the Face Rest. CAUTION • Excessive pressure can cause premature failure of the Face Rest. Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest. -
Page 19: Integrated Heated Top
DIRECTIONS FOR USE OPTIONAL INTEGRATED HEATED TOP USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated heated top pad. Simply press the heating indicator located on the right side rail of the table to the desired heat level. Medium High Integrated heat level indicator... -
Page 20: Lift-Assist Backrest Adjustment
DIRECTIONS FOR USE LIFT-ASSIST BACKREST ADJUSTMENT CAUTION Do not sit on the backrest section. TO RAISE THE BACK REST TO LOWER THE BACK REST: Raise the back rest by pressing the lever Press the lever under the head section and under the head section and lifting up to push the back rest down. - Page 21 DIRECTIONS FOR USE TABLE RESET PROCEDURE - HAND CONTROL 1. Press & hold the 2nd set of buttons simultaneously - wait 5-6 seconds for retract to begin. 2. Hold until the columns are fully retracted then continue holding for 5 seconds after full retraction. 3.
-
Page 22: Set Zero Height
DIRECTIONS FOR USE SET ZERO HEIGHT 1. Lower the table to the lowest point. 2. Press and hold the table height down button on the foot or hand control for 10 seconds. 3. When no clicking noise is heard from the Control Box during this process, the zero limits have been reached. -
Page 23: Cleaning & Disinfection
® Green Windex ® The following disinfectants were tested by OAKWORKS ® and found to be acceptably compatible with all materials used in construction of our beds: Clorox Everest / Formula 409® Multi-Surface Cleaner (EPA Reg. No. 5813-73) Parker Labs: Protex™1 (EPA Reg. No. 6836-152) Clorox 10% household (Bleach) Solution (EPA Reg. -
Page 24: Cleaning Process
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disinfecting an OAKWORKS ® table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. The table should be cleaned as soon as possible after use. Please follow these procedures for best results: Using a fresh wipe or wipes, clean any visible soil off of the table, working from the top to the bottom of the table. -
Page 25: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER MODEL & SERIAL NUMBERS The model number and serial numbers are located on the underside of the foot section of the table top Model Number 16796025 PMXA4EF1T411USXXXX Ser#: PAD123456 06/03/2020 Order#:785461 Performalift, 4 Sect XA/4EF/1/T/4/11/US/XX/XX TT Stone Notes: XXX Serial Number Model and Serial numbers always start with a letter. -
Page 26: Specifications
SPECIFICATIONS ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa ELECTRICAL SPECIFICATIONS Designed for: North America Europe... - Page 27 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 28: Contact Information
USER MANUAL Series PerformaLift ™ CONTACT INFORMATION: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com 3034177 CONFORMS TO: UL STD 962 Certified to CAN/CSA STD C22.2 #68 Original Instructions Manual Part Number SPA-RA-PM-150...
